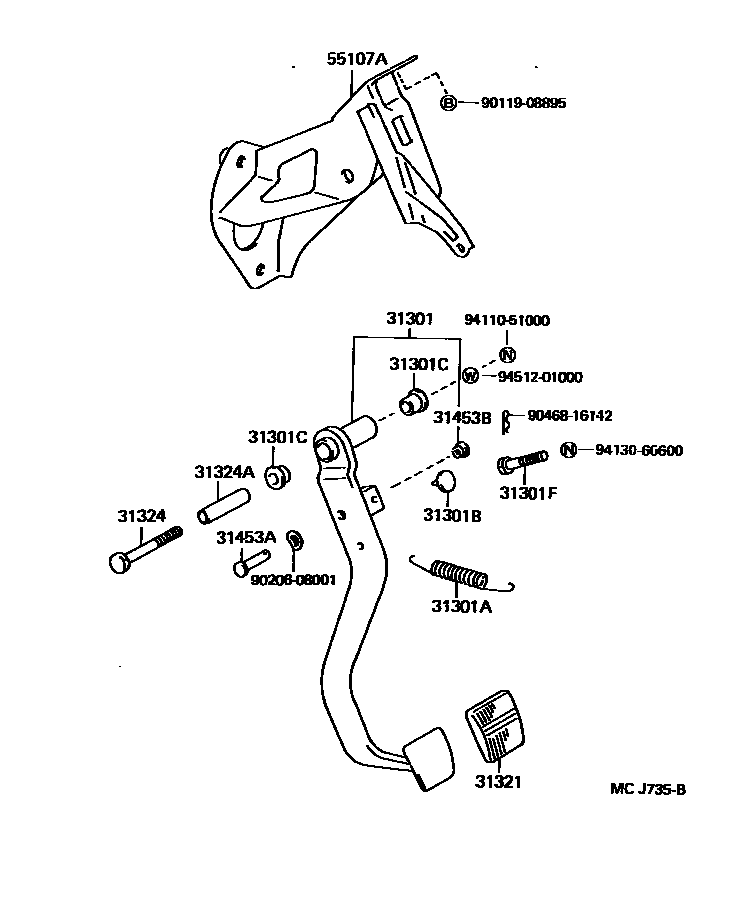

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-10180iEP8#..RHD198912-199601

main31301-10190iEP8#,NP80..LHD..MTM198912-199601

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14003iEP8#,NP80..MTM198912-199102

main90507-14035iEP8#,NP80..MTM199102-199601

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iEP8#,NP80..MTM198912-199601

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13192iEP8#,NP80..MTM198912-199601

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-06400iEP8#,NP80..MTM198912-199601

31321PAD, CLUTCH PEDAL

main31321-14020iEP8#,NP80..MTM198912-199601

31324SHAFT, CLUTCH PEDAL

main90101-10015iEP8#,NP80..MTM198912-199601

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iEP8#,NP80..MTM198912-199601

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iEP8#,NP80..MTM198912-199601

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iEP8#,NP80..MTM198912-199601

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-10020iEP8#..RHD198912-199601

main55107-10050iEP8#,NP80..LHD..MTM198912-199601

9011908895

main90119-08895

9020608001

main90206-08001

9046816142

main90468-16142

9411051000

main94110-51000

9413060600

main94130-60600

9451201000

main94512-01000

17 parts on this diagram · 2 diagrams in section
