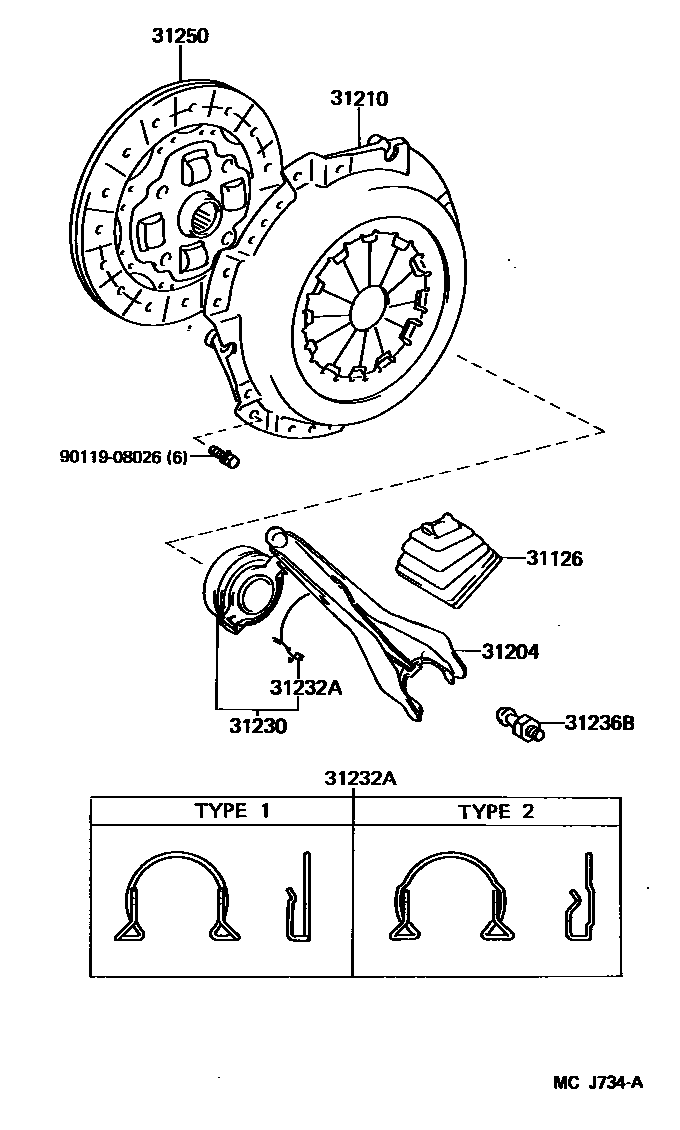

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iEP8#,NP80..MTM198912-199601

31210COVER ASSY, CLUTCH

main31210-10080iEP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

sub31210-10081

main31210-12180iNP80199104-199601

sub31210-12181

main31210-27011iNP80198912-199104

sub31210-12180

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iEP80..LHD..5F198912-199106

ANNEX 24C

sub31230-16061

main31230-12140iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI199106-199601

sub31230-16061

31232ACLIP, RELEASE BEARING HUB

main31232-12040iEP8#,NP80..MTM198912-199601

TYPE 1

main31232-16031iEP8#,NP80..MTM198912-199601

TYPE 2

31236BSUPPORT, RELEASE FORK

main31236-12011iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

31250DISC ASSY, CLUTCH

main31250-10062iEP8#..MTM198912-199006

sub31250-10063

main31250-10063iEP8#..MTM199006-199104

sub31250-10064

main31250-10064iEP8#..MTM199104-199601

sub31250-10065

main31250-10081iNP80198912-199601

sub31250-10082

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
