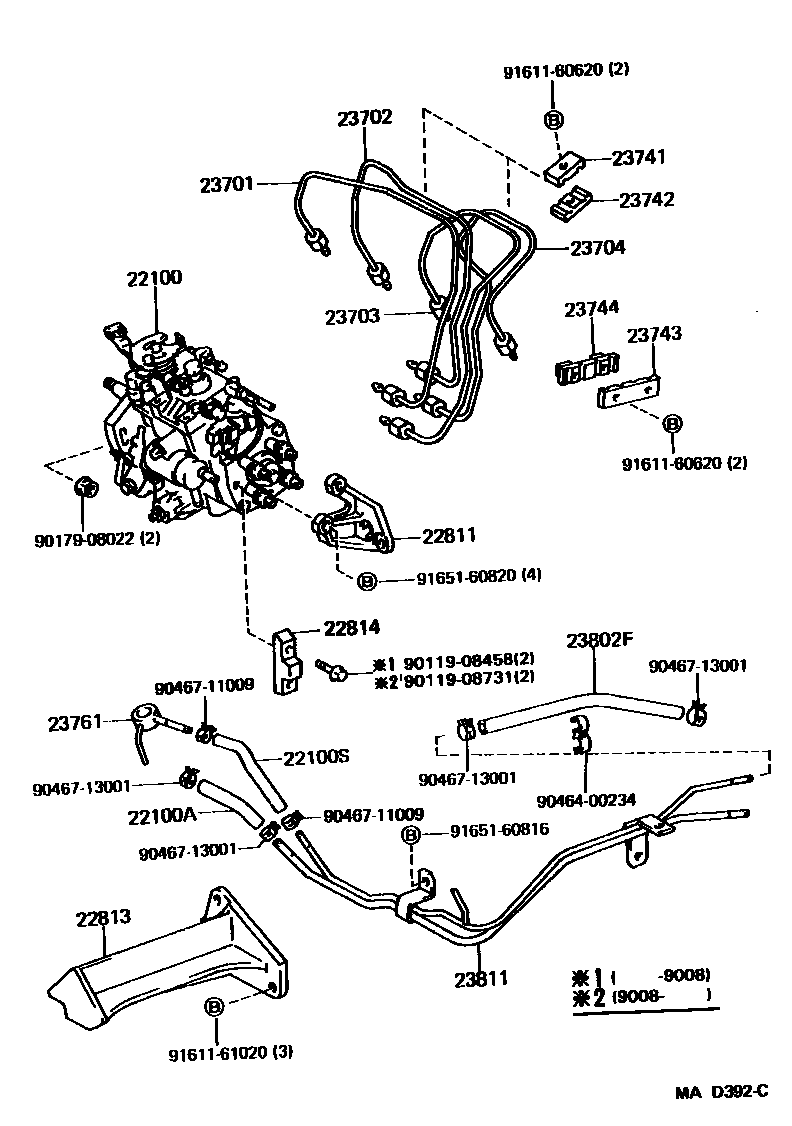

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-55190i1N..NP80198912-199601

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95333-08010i1N..NP80198912-199601

L=100

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23273-55010i1N..NP80198912-199601

22811STAY, INJECTION PUMP, NO.1

main22811-55010i1N..NP80198912-199601

22813PROTECTOR, INJECTION PUMP, NO.1

main22813-55011i1N..NP80198912-199409

main22813-55020i1N..NP80199409-199601

22814PROTECTOR, INJECTION PUMP, NO.2

main22814-55020i1N..NP80198912-199008

main22814-55021i1N..NP80199008-199601

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-55010i1N..NP80198912-199601

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-55010i1N..NP80198912-199601

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-55010i1N..NP80198912-199601

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-55010i1N..NP80198912-199601

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010×2i1N..NP80198912-199601

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010×2i1N..NP80198912-199601

23743CLAMP, INJECTION PIPE, NO.3

main23741-64020i1N..NP80198912-199601

sub23741-64021

23744CLAMP, INJECTION PIPE, NO.4

main23742-55010i1N..NP80198912-199601

sub23742-55011

23761PIPE, NOZZLE LEAKAGE, NO.1

main23764-55020i1N..NP80198912-199601

23802FHOSE, FUEL

main90447-14049i1N..NP80198912-199601

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-55020i1N..NP80198912-199601

9011908458

main90119-08458

9011908731

main90119-08731

9017908022

main90179-08022

9046400234

main90464-00234

9046711009

main90467-11009

9046713001

main90467-13001

9161160620

main91611-60620

9161161020

main91611-61020

9165160816

main91651-60816

9165160820

main91651-60820

27 parts on this diagram · 1 diagram in section
