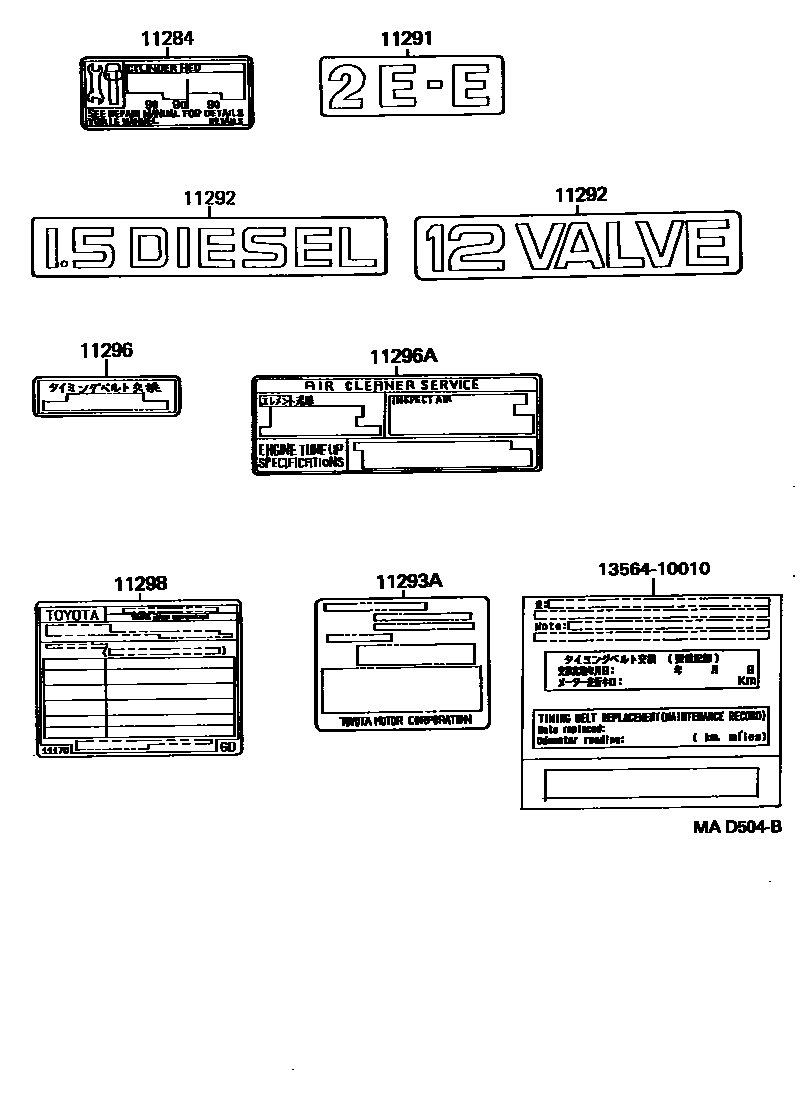

CAUTION PLATE & NAME PLATE (ENGINE)

11284PLATE, ENGINE BOLT INFORMATION

main11284-55020i1N..NP80198912-199405

11291PLATE, ENGINE NAME

main11291-11020i2EE..EP81..3FC,5F198912-199601

11292PLATE, ENGINE NAME, NO.2

main11292-10010i1E,2E..EP8#198912-199212

main11292-11040i2EE..EP81..5F198912-199003

sub11292-11041

main11292-11041i2EE..EP81..3FC,5F199003-199308

main11292-55020i1N..NP80198912-199405

11293APLATE, ENGINE CAUTION

main11293-10012i1E,2E..EP8#198912-199205

main11293-10030i1E..EP80..LHD198912-199106

WEST GERMAN SPEC

main11293-11230i1E,2E..EP8#199205-199209

11296PLATE, TIMING BELT CAUTION

main17791-55010i1N..NP80198912-199601

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-55020i1N..NP80198912-199601

11298PLATE, EMISSION CONTROL INFORMATION

main11298-11180i2EE..EP81..5F198912-199106

main11298-11290i2EE..EP81..LHD199106-199601

NORWAY SPEC

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

8 parts on this diagram · 1 diagram in section
