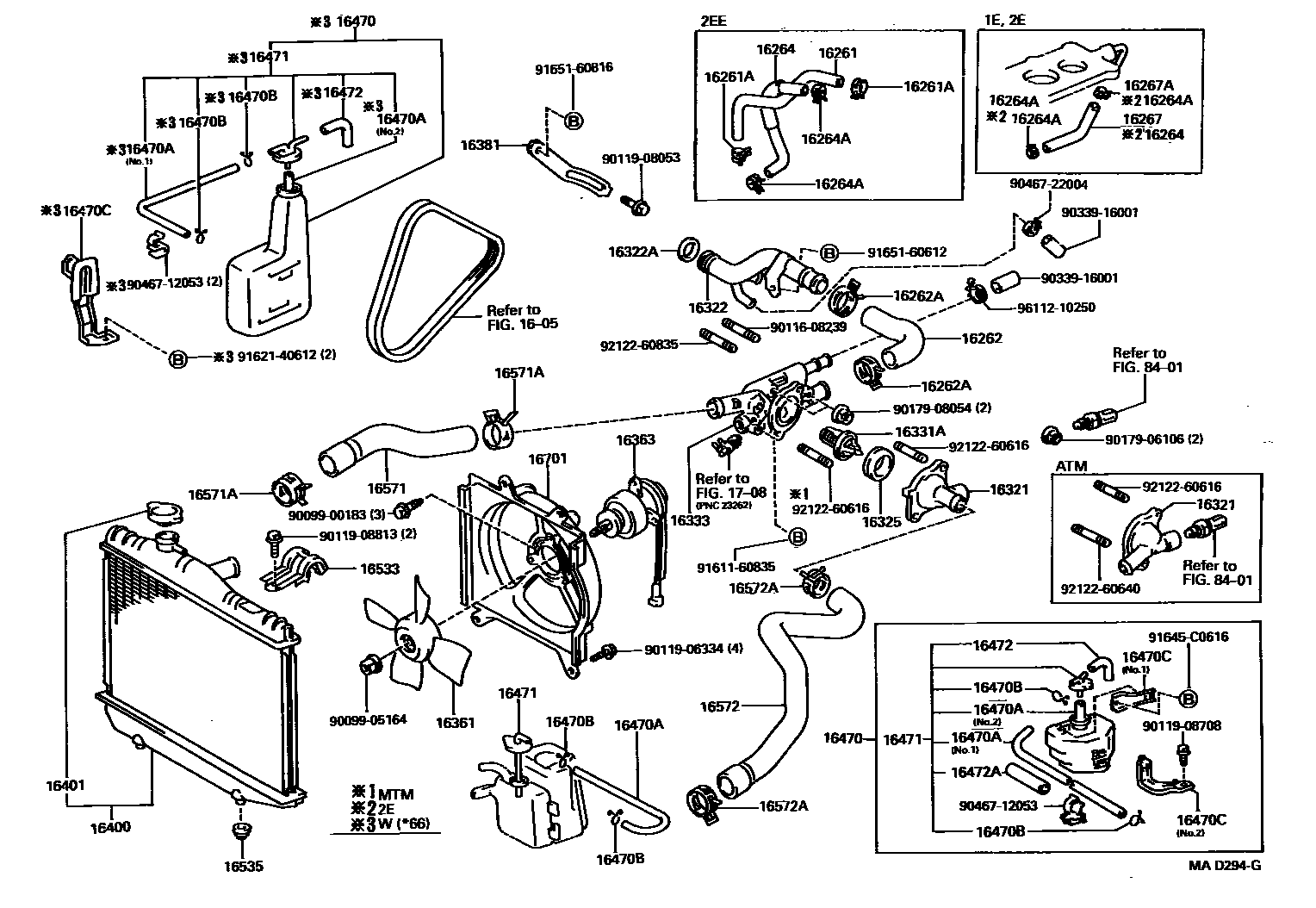

RADIATOR & WATER OUTLET

0001 1 0003 1 0004 1

1605

16261HOSE, WATER BY-PASS

main16261-11020i2EE..EP81..3FC,5F198912-199601

main16261-55030i1N..NP80198912-199601

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-11009i2EE..EP81..3FC,5F198912-199601

sub96135-51100

main90467-15004i1N..NP80198912-199008

main90467-15022i1N..NP80199008-199601

16262HOSE, WATER INLET

main16262-10010i2EE..EP81..5F;1E,2E..EP8#..MTM198912-199410

sub16262-10011

main16262-10011i2EE..EP81..5F199410-199601

main16262-10020i2E#..EP81..3FC198912-199410

sub16262-10022

main16262-10022i2EE..EP81..3FC199410-199601

main16262-55010i1N..NP80198912-199601

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199601

sub90467-34004

main90467-37001i1N..NP80198912-199601

sub90467-37003

16264HOSE, WATER BY-PASS, NO.2

main16264-55010i1N..NP80198912-199601

main16265-11040i2E..EP81198912-199212

main99555-00175i2EE..EP81..3FC,5F198912-199601

*H,L=175

sub99555-00200

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009i1E..EP80198912-199601

sub96135-51100

main90467-13001i1E..EP80198912-199212

sub96135-51300

main90467-15004i1N..NP80198912-199008

main90467-15022i1N..NP80199008-199601

16267HOSE, WATER BY-PASS, NO.3

main16266-11010i1E..EP80199203-199212

main99555-00450i1E..EP80198912-199203

*H,L=450

sub99555-00500

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-11009i1E..EP80198912-199212

sub96135-51100

16321INLET, WATER

main16321-10011i2EE..EP81..5F;1E,2E..EP8#..MTM198912-199601

main16321-11011i2E#..EP81..3FC198912-199601

main16321-55010i1N..NP80198912-199601

16322PIPE, WATER INLET

main16322-11010i1E..EP80198912-199201

sub16322-11081

sub16266-11010

main16322-11030i2EE..EP81..3FC,5F198912-199204

sub16322-11032

main16322-11032i2EE..EP81199204-199601

main16322-11080i2E..EP81198912-199204

sub16322-11081

main16322-11081i1E,2E..EP8#199204-199212

sub16322-11091

main16322-55070i1N..NP80198912-199601

16322ARING, O(FOR WATER INLET)

main90301-31008i1N..NP80199408-199601

main96711-35028i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199503

sub96761-35028

main96711-35031i1N..NP80198912-199408

sub96761-35031

main96761-35028i2EE..EP81199503-199601

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1N..NP80198912-199301

sub16325-63011

main16325-63011i2EE..EP81199301-199601

16331OUTLET, WATER

main16304-55020i1N..NP80198912-199601

16331ATHERMOSTAT

main90916-03046i1N..NP80198912-199601

*WAX 82-95

16333HOUSING, WATER OUTLET

main16303-10011i1E..EP80198912-199205

sub16333-10011

main16303-11050i2E..EP81198912-199205

sub16333-11190

main16303-11080i2EE..EP81..3FC,5F198912-199205

sub16333-11070

main16333-10011i1E..EP80199205-199212

main16333-11070i2EE..EP81199205-199601

main16333-11190i2E..EP81199205-199212

16361FAN

main16361-11010i1N..NP80198912-199601

16363MOTOR, COOLING FAN

main16363-11010i1E,2E#..EP8#198912-199601

16381BAR, FAN BELT ADJUSTING

main16381-11020i2E..EP81198912-199207

sub16381-11021

main16381-11021i1E,2E..EP8#199207-199212

main16381-11030i1E..EP80;2EE..EP81..3FC,5F198912-199601

main16381-55010i1N..NP80198912-199601

16400RADIATOR ASSY

main16400-11300i1E..EP80198912-199209

main16400-11310i2E..EP81..3FC198912-199201

main16400-11320i2EE..EP81..LHD..5F198912-199405

SWITZERLAND SPEC

main16400-11340i2EE..EP81..3FC199106-199601

main16400-11340i2E..EP81..3FC198912-199201

W(AIR CONDITIONER)

main16400-11350i1E,2E..EP8#..LHD..MTM198912-199209

W(AIR CONDITIONER)

main16400-11350i2EE..EP81..5F199405-199601

main16400-11380i2E..EP81..MTM;2EE..EP81..5F198912-199405

sub16400-11350

main16400-55070i1N..NP80198912-199601

sub16400-55080

16401CAP SUB-ASSY, RADIATOR

main16401-72090i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199601

sub16401-20353

16470TANK ASSY, RADIATOR RESERVE

main16470-11020i2EE..EP81..LHD198912-199405

main16470-11020i2EE..EP81..3D..3FC199405-199601

W(*66)

main16470-11080i2EE..EP81..LHD..5F;2EE..EP81..5D..3FC199405-199601

W(POWER STEERING)

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85319-10160i1N..NP80198912-199601

*H,L=640

main90099-33534i2EE..EP81..5F;2EE..EP81..5D..3FC199405-199601

L=1000,W(POWER STEERING),NO.1

main90445-12078i2EE..EP81..5F;2EE..EP81..5D..3FC199405-199601

L=600,W(POWER STEERING),NO.2

main90445-12078i1E,2E..EP8#..LHD;2EE..EP81..3FC,5F198912-199201

L=600,W(*66)

main90445-12078i1E,2E#..EP8#..LHD199201-199601

L=600,W(*66),NO.1,NO.2

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1N..NP80198912-199601

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16471-55030i2EE..EP81..LHD..5F;2EE..EP81..5D..3FC199405-199601

NO.1

main16471-55030i2EE..EP81..LHD..5F;2EE..EP81..5D..3FC199405-199601

W(POWER STEERING),NO.1

main16473-55030i2EE..EP81..LHD..5F;2EE..EP81..5D..3FC199405-199601

NO.2

main16473-55030i2EE..EP81..RHD199405-199601

W(POWER STEERING),NO.2

main16611-11010i2EE..EP81..LHD198912-199405

main16611-11010i2EE..EP81..3D..3FC199405-199601

W(*66)

16471CAP SUB-ASSY, RESERVE TANK

main16405-11020i2EE..EP81..LHD198912-199601

W(*66)

main16405-11080i2EE..EP81..5F;2EE..EP81..5D..3FC199405-199601

W(POWER STEERING)

main85399-10160i1E,2E#..EP8#198912-199601

16472HOSE, BREATHER

main85338-74040i2EE..EP81..LHD198912-199601

16472APROTECTOR, HOSE

main16477-55030i2EE..EP81..5F;2EE..EP81..5D..3FC199405-199601

16533SUPPORT, RADIATOR, UPPER

main16505-11080i1E,2E..EP8#;2EE..EP81..5F198912-199601

main16505-11090i2EE..EP81..3FC199106-199601

main16533-55030i1N..NP80198912-199601

16535SUPPORT, RADIATOR, LOWER

main16535-11020i2EE..EP81..3FC199106-199601

main16535-55030i1N..NP80198912-199003

sub16535-55031

main16535-55031i1N..NP80199003-199601

main90480-23008i1E,2E..EP8#;2EE..EP81..5F198912-199601

16571HOSE, RADIATOR, INLET

main16571-11080i1E,2E..EP8#;2EE..EP81..5F198912-199601

main16571-11190i2E#..EP81..3FC199105-199601

main16571-55030i1N..NP80198912-199601

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31003i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199601

main90467-31003i1N..NP80198912-199601

RADIATOR SIDE

main90467-34003i1N..NP80198912-199601

WATER OUTLET SIDE

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-11130i2EE..EP81..5F198912-199601

main16572-11170i2E#..EP81..3FC198912-199601

main16572-55050i1N..NP80198912-199601

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003i2EE..EP81198912-199601

main90467-31003i1N..NP80198912-199601

RADIATOR SIDE

main90467-34003i1N..NP80198912-199601

WATER INLET SIDE

sub90467-34004

16701SHROUD SUB-ASSY, FAN

main16711-11140i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199601

main16711-11150i1N..NP80198912-199601

1708

8401

9009900183

main90099-00183

9009905164

main90099-05164

9011608239

main90116-08239

9011906334

main90119-06334

9011908053

main90119-08053

9011908708

main90119-08708

9011908813

main90119-08813

9017906106

main90179-06106

9017908054

main90179-08054

9033916001

main90339-16001

9046712053

main90467-12053

9046722004

main90467-22004

9161160835

main91611-60835

9162140612

main91621-40612

91645C0616

main91645-C0616

9165160612

main91651-60612

9165160816

main91651-60816

9212260616

main92122-60616

9212260640

main92122-60640

9212260835

main92122-60835

9611210250

main96112-10250

58 parts on this diagram · 3 diagrams in section
