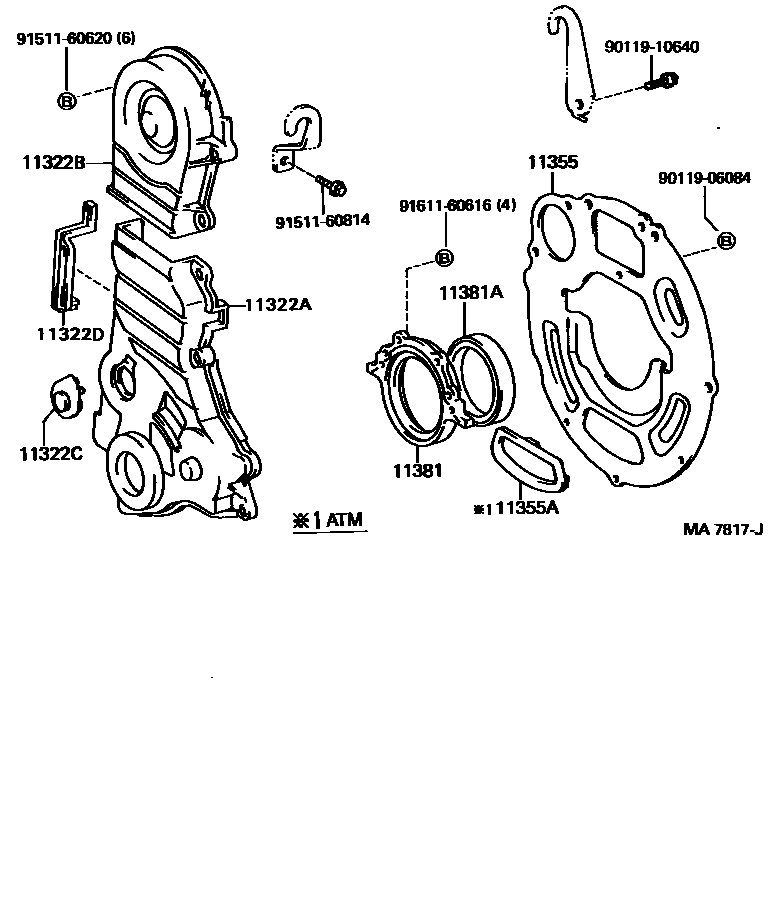

TIMING GEAR COVER & REAR END PLATE

0001 1 0003 1

11322ACOVER, TIMING BELT, NO.1

main11302-10023i1E..EP80198912-199212

sub11302-10024

sub90387-06015

main11302-11070i2E..EP81;2EE..EP81..3FC,5F198912-199405

sub11302-11072

sub11328-11041

sub90387-06015

main11302-11072i2EE..EP81199405-199601

11322BCOVER, TIMING BELT, NO.2

main11303-10022i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199405

sub11303-10023

sub90387-06015

main11303-10023i2EE..EP81199405-199601

11322CCOVER, TIMING BELT, NO.3

main11323-10011i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199601

11322DGASKET, TIMING BELT COVER, NO.1

main11328-10021i1E..EP80198912-199212

main11328-11040i2E..EP81;2EE..EP81..3FC,5F198912-199309

sub11328-11041

main11328-11041i2EE..EP81199309-199601

11355PLATE, REAR END

main11355-10011i2EE..EP81..5F;1E,2E..EP8#..MTM198912-199601

sub11355-10012

main11355-11011i2E#..EP81..3FC198912-199601

sub11355-11012

main11355-55012i1N..NP80198912-199601

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01548i2E#..EP81..3FC198912-199601

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10020i1E,2E..EP8#;2EE..EP81..3FC,5F198912-199407

main11381-10021i2EE..EP81199407-199601

main11381-55010i1N..NP80198912-199601

sub11381-55011

11381ASEAL, ENGINE REAR OIL

main90311-75004i1E,2E..EP8#;2EE..EP81..5F198912-199010

sub90311-75006

main90311-75009i1E,2E#..EP8#199010-199601

main90311-80005i1N..NP80198912-199008

sub90311-80009

main90311-80009i1N..NP80199008-199601

sub90311-80014

9011906084

main90119-06084

9011910640

main90119-10640

9151160620

main91511-60620

9151160814

main91511-60814

9161160616

main91611-60616

13 parts on this diagram · 2 diagrams in section
