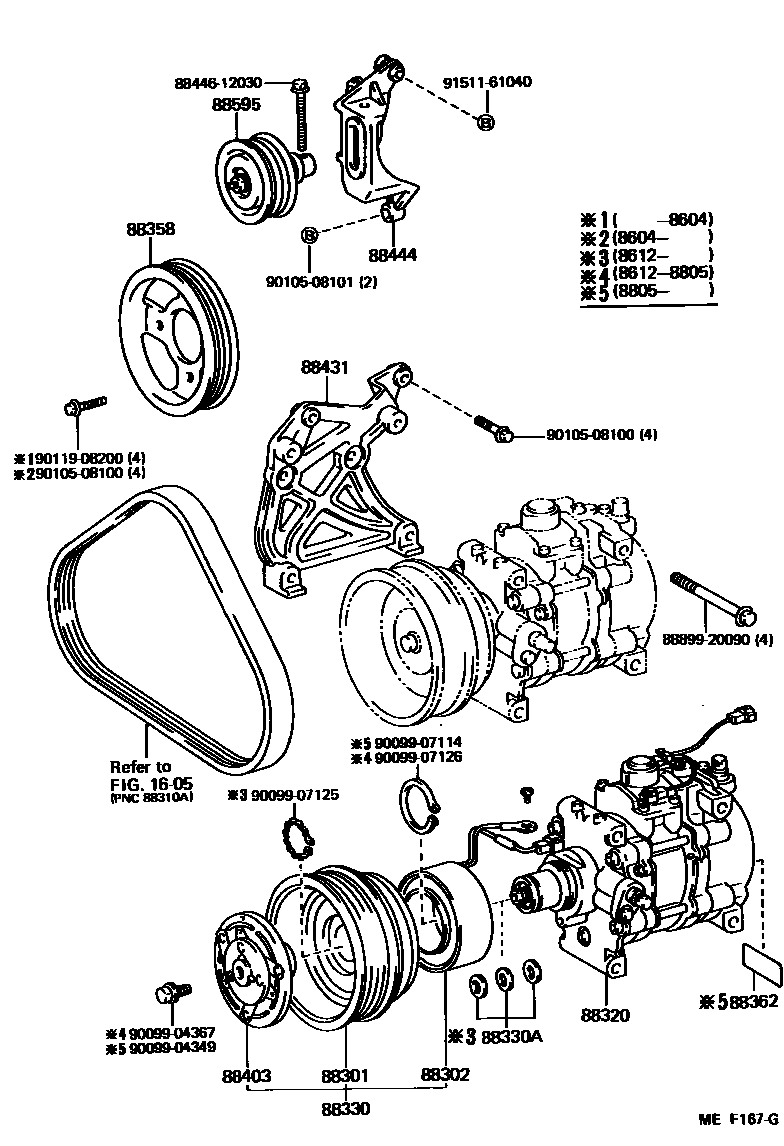

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-10010iEP7#..LHD..EUG198410-198508

sub88412-10011

main88412-10011iEP71..LHD..EUG198508-198612

sub88412-10060

main88412-10030iEP70..LHD198501-198508

sub88412-10031

main88412-10031iEP70..LHD198508-198612

sub88412-10070

main88412-10060iEP71..LHD..MTM..EUG198612-198805

main88412-10070iEP70..LHD198612-198805

main88412-10120iEP70..LHD198805-198912

main88412-10140iEP71..LHD..MTM..EUG198805-198912

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-10010iEP7#..LHD..EUG198410-198805

sub88411-10030

main88411-16021iEP7#..LHD..MTM..EUG198805-198912

sub88411-60030

88320COMPRESSOR ASSY, COOLER

main88320-10060iEP7#..LHD..EUG198410-198612

sub88320-10190

main88320-10090iEP7#..LHD..MTM..EUG198612-198805

main88320-10180iEP7#..LHD..MTM..EUG198805-198912

sub88320-10200

88330CLUTCH ASSY, MAGNET

main88410-10020iEP7#..LHD..EUG198410-198508

sub88410-10021

main88410-10021iEP71..LHD..MTM..EUG198508-198612

sub88410-10022

main88410-10022iEP71..LHD..MTM..EUG198612-198805

main88410-10040iEP70..LHD198501-198508

sub88410-10041

main88410-10041iEP70..LHD..EUG198508-198612

sub88410-10042

main88410-10042iEP70..LHD..EUG198612-198805

main88410-10110iEP70..LHD..EUG198805-198912

sub88410-10190

main88410-10130iEP71..LHD..MTM..EUG198805-198912

sub88410-10200

88330AWASHER (FOR MAGNET CLUTCH)

main88335-10030iEP7#..LHD..MTM..EUG198612-198805

main88335-14020iEP7#..LHD..MTM..EUG198805-198912

88358PULLEY, CRANKSHAFT TO COOLER COMPRESSOR DRIVE

main88358-10010iEP7#..LHD..EUG198410-198604

main88358-10011iEP7#..LHD..EUG198604-198912

88362PLATE, COOLER COMPRESSOR SEAL

main88356-12010iEP7#..LHD..MTM..EUG198805-198912

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-10010iEP7#..LHD..EUG198410-198805

main88403-16011iEP7#..LHD..MTM..EUG198805-198912

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-10040iEP7#..LHD..EUG198410-198604

main88431-10041iEP7#..LHD..EUG198604-198805

main88431-16060iEP7#..LHD..MTM..EUG198805-198912

88444BRACKET, IDLE PULLEY

main88444-10020iEP70..LHD198410-198604

main88444-10021iEP70..LHD198604-198912

main88444-10030iEP71..LHD..EUG198410-198604

main88444-10031iEP71..LHD..MTM..EUG198604-198912

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-17010iEP7#..LHD..EUG198410-198912

8844612030BOLT, IDLE PULLEY

main88446-12030

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009904367

main90099-04367

9009907114

main90099-07114

9009907125

main90099-07125

9009907126

main90099-07126

9010508100

main90105-08100

9010508101

main90105-08101

9011908200

main90119-08200

9151161040

main91511-61040
