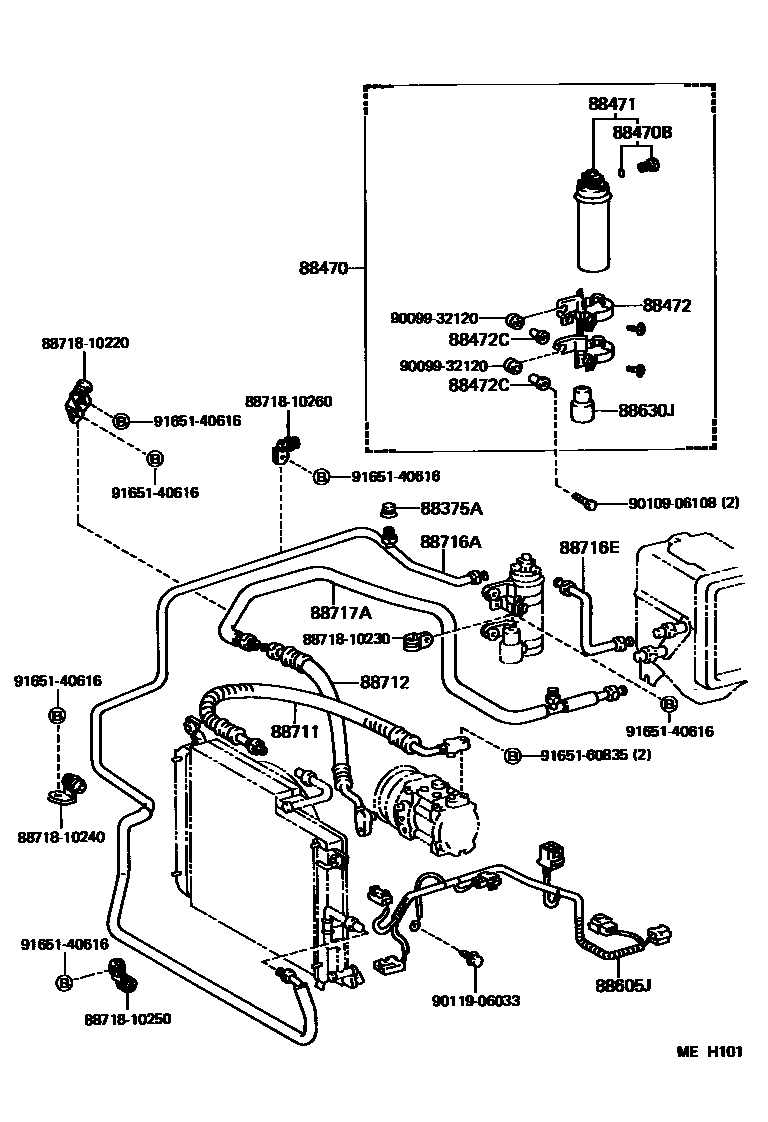

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-20010iEP7#..LHD..MTM..EUG198703-198912

main88375-30270iEP7#..LHD..EUG198410-198703

88470RECEIVER & DRYER ASSY, COOLER

main88470-10020iEP7#..LHD..EUG198410-198912

88470BBOLT, FUSE

main88475-12020iEP7#..LHD..EUG198410-198912

88471TANK, RECEIVER AIR CONDITIONER

main88471-10030iEP7#..LHD..MTM..EUG198612-198912

sub88471-12040

main88471-16010iEP7#..LHD..EUG198410-198612

88472BRACKET, RECEIVER TANK, NO.1

main88472-10140iEP7#..LHD..EUG198410-198612

main88472-10141iEP7#..LHD..MTM..EUG198612-198912

88472CINSULATOR, RECEIVER BRACKET

main88467-14070iEP7#..LHD..EUG198410-198912

88605JHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-10220iEP7#..LHD..EUG198410-198612

main88605-10221iEP7#..LHD..MTM..EUG198612-198912

88630JRELAY ASSY (FOR CONDENSER MOTOR)

main88630-10030iEP7#..LHD..EUG198410-198912

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-10090iEP7#..LHD..EUG198410-198612

main88711-10091iEP7#..LHD..MTM..EUG198612-198912

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-10110iEP7#..LHD..EUG198410-198912

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-10410iEP7#..LHD..EUG198410-198612

main88716-10411iEP7#..LHD..MTM..EUG198612-198912

sub88710-10031

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-10400iEP7#..LHD..EUG198410-198612

main88716-10401iEP7#..LHD..MTM..EUG198612-198703

sub88716-10402

main88716-10402iEP7#..LHD..MTM..EUG198703-198912

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-10090iEP7#..LHD..EUG198410-198912

8871810220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10220

8871810230PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10230

8871810240PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10240

8871810250PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10250

8871810260PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-10260

9009932120

main90099-32120

9010906108

main90109-06108

9011906033

main90119-06033

9165140616

main91651-40616

9165160835

main91651-60835

23 parts on this diagram · 3 diagrams in section
