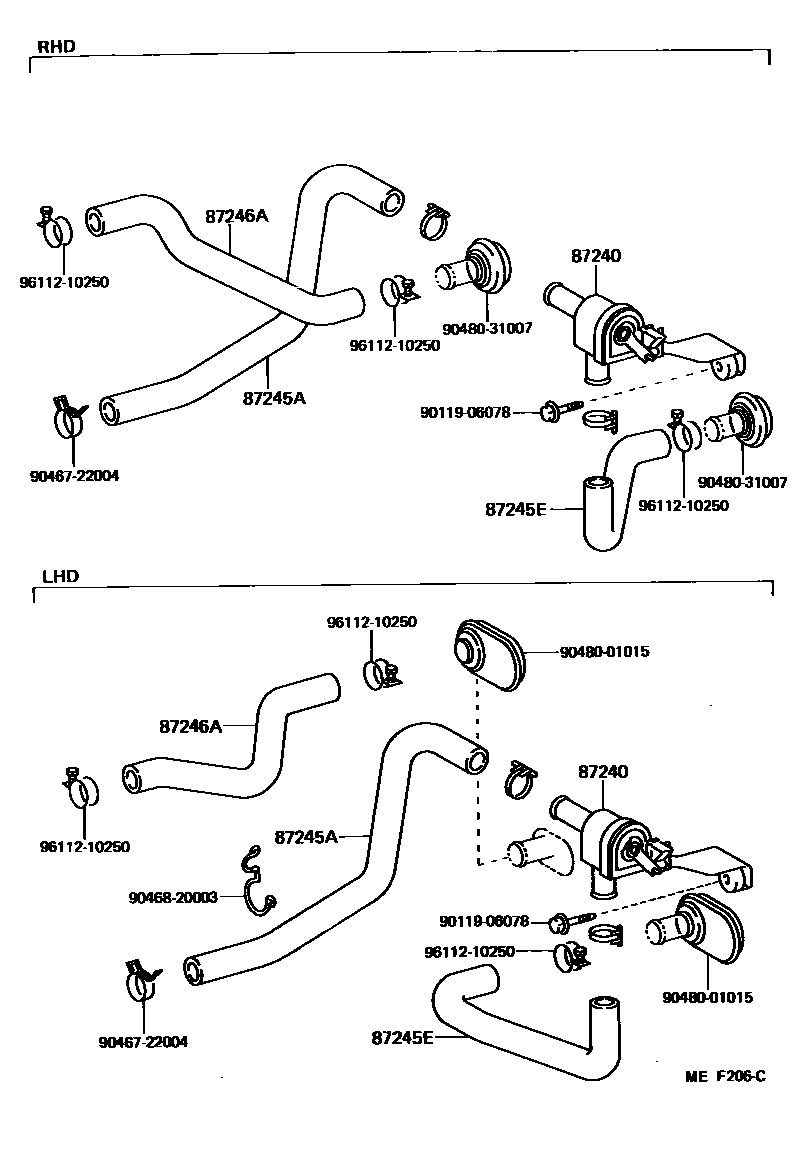

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87240VALVE ASSY, HEATER WATER

main87240-10110iEP7#198410-198912

main87240-10130iNP70198612-198912

87245AHOSE, HEATER WATER, INLET A

main87245-10130iNP70198612-198912

main87245-10290iEP7#198410-198912

87245EHOSE, HEATER WATER, INLET E

main87245-10140iNP70..RHD198612-198811

main87245-10300iEP7#..RHD198410-198912

main87245-10310iEP7#..LHD198410-198612

main87245-10311iEP7#..LHD198612-198912

main87245-10360iNP70..LHD198612-198912

87246AHOSE, HEATER WATER, OUTLET A

main87245-10270iEP7#..RHD198410-198912

main87245-10280iEP7#..LHD198410-198605

sub87245-10350

main87245-10350iEP7#..LHD198605-198612

main87245-10351iEP7#..LHD198612-198707

sub87245-10390

main87245-10370iNP70..RHD198612-198811

main87245-10380iNP70..LHD198612-198912

main87245-10390iEP70..LHD..5D..5F;EP70..4F..XL..FRG;EP7#..4F..(DX,STD);EP70..LHD..3D..XL..EUG;EP71..LHD..(GL,S,STD,XL)198707-198912

main87245-10400iEP71..SDZ198802-198912

9011906078

main90119-06078

9046722004

main90467-22004

9046820003

main90468-20003

9048001015

main90480-01015

9048031007

main90480-31007

9611210250

main96112-10250

10 parts on this diagram · 2 diagrams in section
