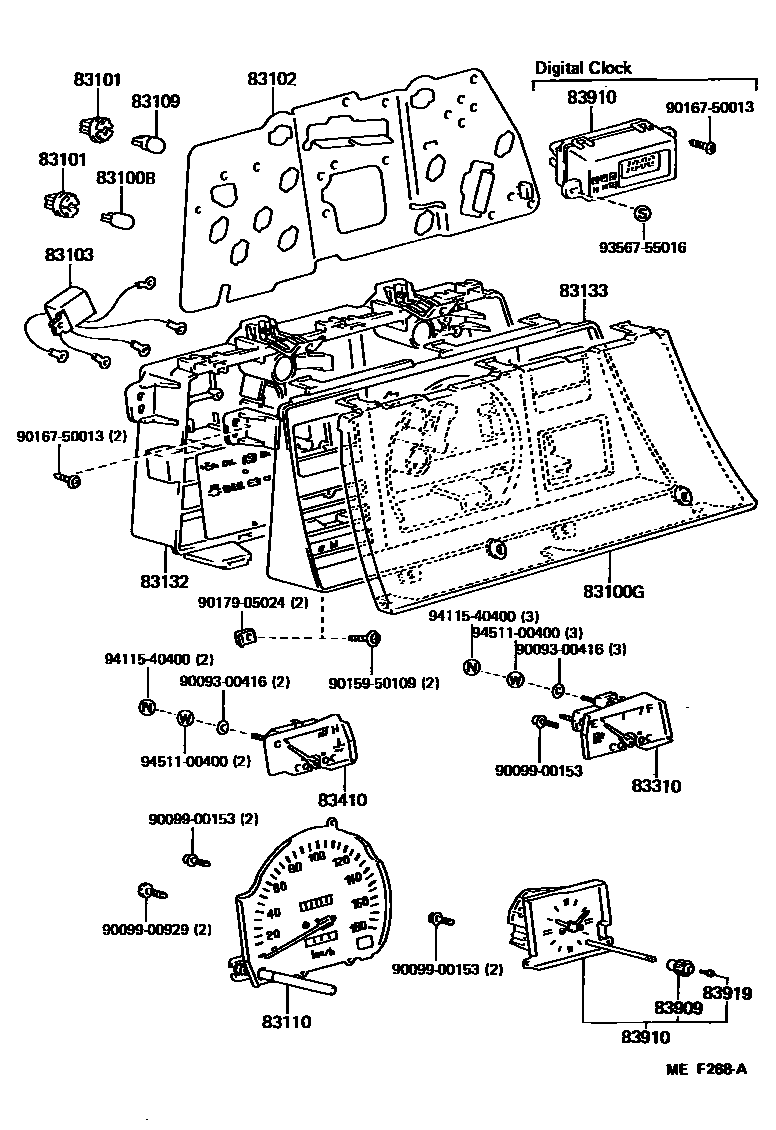

METER

0001 1 0002 1 0003 1W/TACHOMETER 0004 1W/TACHOMETER 0005 1 0006 1

83100BBULB, COMBINATION METER, NO.1

main90981-11018×7iEP70..LHD..GL198410-198612

12V 1.2W W/O SOCKET

main99132-12034×8iEP7#,NP70198410-198912

12V 3.4W

83100GGLASS, COMBINATION METER

main83138-10030iEP71..DX,GL,XL198410-198612

main83138-10050iEP71..RHD198410-198612

W/TACHOMETER

main83138-10070iEP70..LHD..GL198410-198612

W/TACHOMETER

main83138-10090iEP71..STD198508-198612

main83138-10350iEP7#..DX,GL,XL198410-198612

W/ANALOGUE CLOCK

main83138-10390iEP7#,NP70..LHD198612-198912

main83138-10410iEP7#,NP70..GL,XL198612-198912

W/ANALOGUE CLOCK

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×11iEP7#,NP70198410-198912

12V 3.4W

main83101-14040×11iEP7#,NP70198410-198912

12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-10710iEP7#..RHD198410-198612

main83247-10750iEP71..3D..SDZ;EP7#..LHD..(EUG,FRG)198410-198612

W/*RHW

main83247-10790iEP7#..LHD198410-198612

main83247-10850iEP7#..RHD198410-198612

W/ANALOGUE CLOCK

main83247-10890iEP7#..LHD..(DX,GL,XL)198410-198612

W/ANALOGUE CLOCK & *RHW

main83247-1C030iEP7#..LHD..(DX,GL,XL)198410-198612

W/ANALOGUE CLOCK

main83247-1C110iEP71..RHD198410-198612

W/TACHOMETER

main83247-1C130iEP71..GL..SDZ;EP71..LHD..(DX,GL,XL)..(EUG,FRG)198410-198612

W/*TAC,GREEN LIGHTING

main83247-1C150iEP70..LHD..GL198410-198612

W/*TAC & *RHW,GREEN LIGHTING

main83247-1C250iEP71..3D..5F..(DX,XL)198410-198612

W/*TAC,*RHW,ORANGE LIGHTING

main83247-1C270iEP71..3D..5F..(DX,XL)198410-198612

W/*TAC,ORANGE LIGHTING

main83247-1C510iEP7#..LHD..(DX,GL,STD,XL)198612-198912

main83247-1C550iEP7#..LHD..(GL,XL)198612-198912

W/ANALOG CLOCK

main83247-1C590iEP7#..RHD198612-198912

W/ANALOGUE CLOCK

main83247-1C610iEP71..GL..EUG198612-198912

W/ECONOMETER

main83247-1C630iEP71..LHD..XL198612-198912

W/ANALOG CLOCK & ECONOMETER

main83247-1C650iNP70..LHD198612-198912

main83247-1C670iNP70198612-198912

W/ANALOGUE CLOCK

main83247-1C690iNP70..LHD198612-198912

W/*RHW

main83247-1C710iNP70..XL198612-198912

W/ANALOGUE CLOCK & ECONOMETER

main83247-1C850iEP71..LHD..(GL,XL)198612-198912

W/TACHOMETER

main83247-1C870iEP71..GL..EUG198612-198912

W/ECONOMETER

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-1C190iEP70..LHD..GL198410-198612

W/TACHOMETER

main83247-1C210iEP71..RHD198410-198612

W/TACHOMETER

main83247-1C230iEP7#198410-198612

main83247-1C370iEP7#198612-198912

E/ECONOMETER

83109BULB, COMBINATION METER, NO.2

main83109-10010iEP7#198410-198912

12V 1.4W,ORANGE CAP

main83109-24030×4iEP7#,NP70198410-198912

12V3.4W W(GREEN CAP)

main83109-24040iEP7#198410-198912

12V1.4W W(GREEN CAP)

83110SPEEDOMETER ASSY

main83110-1C200iEP71..STD198508-198612

KM

main83110-1C210iEP7#..LHD..(DX,GL,XL)198410-198612

KM,W/TRIP COUNTER

main83110-1C220iEP71..GL..SDZ;EP71..LHD..(DX,GL,XL)..(EUG,FRG)198410-198612

KM,W/TRIP COUNTER & *TAC,GREEN

main83110-1C240iEP70..RHD..XL198410-198612

MILE/KM

main83110-1C250iEP7#..RHD198410-198612

MILE/KM,W/TRIP COUNTER

main83110-1C260iEP71..RHD198410-198612

MILE/KM,W/TRIP COUNTER & *TAC

main83110-1C280iEP71..3D..5F..(DX,XL)198410-198612

KM,W/TRIP COUNTER& *TAC,ORANGE

main83110-1C330iEP71..LHD..(GL,XL)198612-198912

W/TACHOMETER

main83110-1C340iEP71..S198612-198912

main83110-1C410iEP70..RHD..4F198612-198912

KM

main83110-1C420iNP70..LHD198612-198912

main83110-1C430iEP7#..RHD198612-198912

MILE

main83110-1C440iNP70..RHD198612-198811

83132CASE, COMBINATION METER

main83132-10470iEP7#..RHD198410-198612

main83132-10510iEP7#..LHD198410-198612

W/*RHW

main83132-10550iEP7#..LHD198410-198612

main83132-10590iEP71..RHD198410-198612

W/TACHOMETER

main83132-10610iEP70..LHD..GL198410-198612

W/TACHOMETER

main83132-10630iEP70..LHD..GL198410-198612

W/TACHOMETER & *RHW

main83132-10730iEP70..RHD..4F;EP7#..LHD..(DX,GL,STD,XL)198612-198912

main83132-10750iEP7#..RHD198612-198912

W/ANALOGUE CLOCK & ECONOMETER

main83132-10770iEP71..XL..SDZ;EP7#..LHD..(DX,GL,STD,XL)..(EUG,FRG)198612-198912

W/ECONOMETER

main83132-10790iNP70198612-198912

main83132-10810iNP70198612-198912

W/*RHW

main83132-10850iEP71..XL..SDZ;EP71..LHD..(GL,XL)..EUG198612-198912

W/ECONOMETER

main83132-10890iEP71..LHD..(GL,XL)198612-198912

W/TACHOMETER

sub83132-10870

83133PLATE, COMBINATION METER, NO.1

main83133-10630iEP7#..DX,GL,XL198410-198612

W/ANALOGUE CLOCK

main83133-10650iEP71..STD198508-198612

main83133-10670iEP71..DX,GL,XL198410-198612

main83133-10690iEP71..DX,GL,XL198410-198612

W/TACHOMETER

main83133-10730iEP7#,NP70..LHD..(GL,STD,XL)198612-198912

main83133-10750iEP7#,NP70..GL,XL198612-198912

W/ANALOGUE CLOCK

main83133-10770iEP71..LHD..(GL,XL)198612-198912

W/TACHOMETER

83310GAGE ASSY, FUEL RECEIVER

main83243-10230iEP7#198410-198612

main83243-10250iEP70..LHD..GL198410-198612

W/TACHOMETER,GREEN LIGHTING

main83243-10270iEP71..3D..5F..(DX,XL)198410-198612

W/TACHOMETER,ORANGE LIGHTING

main83243-10290iEP71..XL..SDZ;EP7#..(GL,STD,XL)..(EUG,FRG)198612-198912

W/ECONOMETER

main83243-10310iEP70..RHD..4F;EP7#,NP70..LHD..(GL,STD,XL)198612-198912

main83243-10330iEP71..LHD..(GL,XL)198612-198912

W/TACHOMETER

main83243-10350iEP71..S198612-198912

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-10150iEP7#198410-198612

main83244-10190iEP70..LHD..GL198410-198612

W/TACHOMETER,GREEN LIGHTING

main83244-10210iEP71..3D..5F..(DX,XL)198410-198612

W/TACHOMETER,ORANGE LIGHTING

83909KNOB, CLOCK

main83909-14012iEP7#..DX,GL,XL198410-198912

ANALOGUE

83910CLOCK ASSY

main83910-10130iEP7#..DX,GL,XL198410-198612

ANALOGUE

main83910-10140iEP71..GL..SDZ;EP71..(DX,GL,XL)..(EUG,FRG)198410-198612

DIGITAL,GREEN LIGHTING

main83910-10141iEP71..LHD..(GL,XL)198612-198912

DIGITAL

main83910-10150iEP71..3D..MTM..(DX,XL)198410-198612

DIGITAL,ORANGE LIGHTING

main83910-10151iEP71..S198612-198912

DIGITAL

main83910-10160iEP7#,NP70..GL,XL198612-198912

ANALOGUE

83919SCREW, CLOCK

main83919-14012iEP7#..DX,GL,XL198410-198912

ANALOGUE

9009300416

main90093-00416

9009900153

main90099-00153

9009900929

main90099-00929

9015950109

main90159-50109

9016750013

main90167-50013

9017905024

main90179-05024

9356755016

main93567-55016

9411540400

main94115-40400

9451100400

main94511-00400

23 parts on this diagram · 6 diagrams in section
