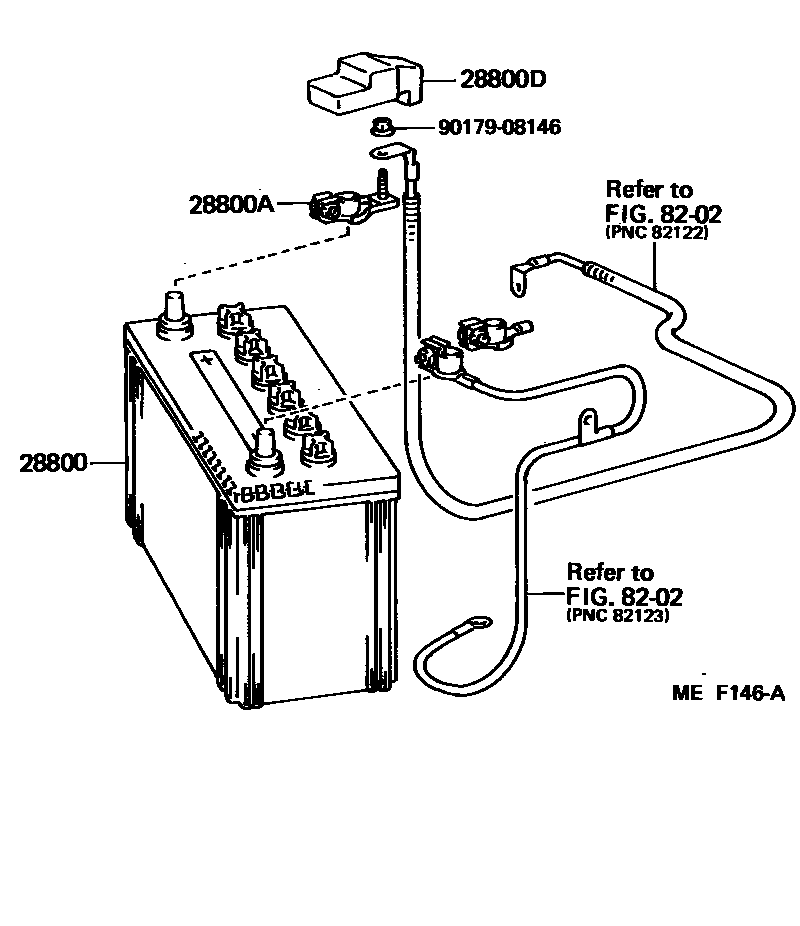

BATTERY & BATTERY CABLE

28800BATTERY

main28800-12060i1EL,2EL#..EP7#198410-198912

50D20R,50D20R(12V 50AH-20HR)

sub28800-14040

main28800-13110i1EL,2EL..EP7#198410-198912

28B19R(S),28B19R(S)(NS40S(S))

sub28800-13160

main28800-14010i1N..NP70198612-198912

55D23R,55D23R

sub28800-15020

main28800-33071i1EL,2EL#..EP7#198410-198912

32C24R,32C24R(N40)

sub28800-33101

main28800-54220i1N..NP70..LHD198612-198912

80D26R,80D26R

sub28800-67030

28800ATERMINAL, BATTERY POSITIVE

main90982-05023i1EL,2EL#..EP7#198410-198411

sub90982-05029

main90982-05029i1EL,2EL#..EP7#198411-198610

sub90982-05030

main90982-05030i1EL,2EL#..EP7#198610-198912

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12180i2ELC..EP71198707-198912

main82821-24010i1EL,2EL#..EP7#198410-198912

8202

9017908146

main90179-08146

5 parts on this diagram · 1 diagram in section
