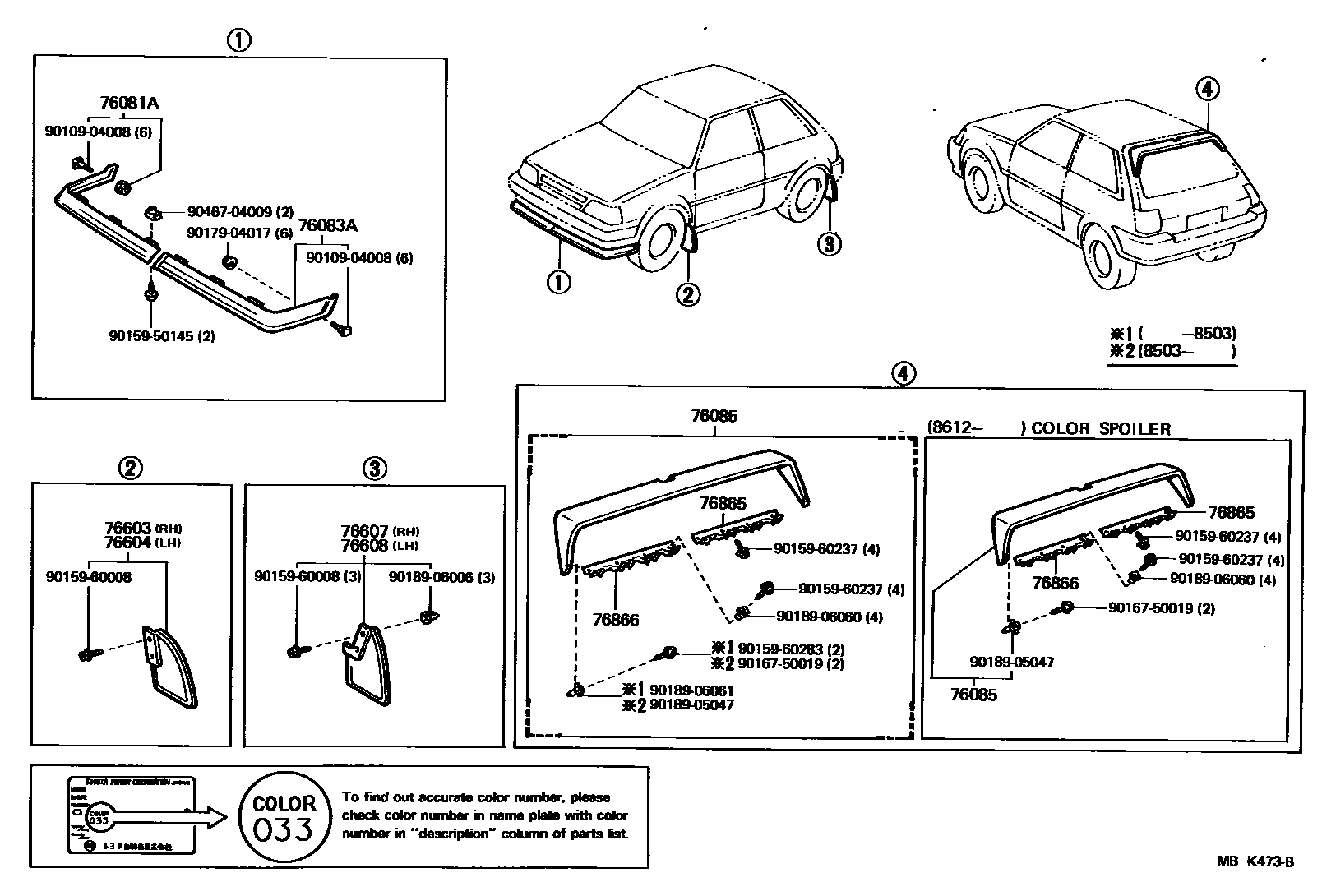

MUDGUARD & SPOILER

76081ASPOILER SUB-ASSY, FRONT RH

main76081-10010iEP71..DX,GL,XL198410-198612

RH

main76081-10030-02iEP7#,NP70..GL,XL198904-198912

RED,RED,3E6

main76081-10030-02iEP71..S198612-198912

RH,RED,RED,3E6

main76081-10030-02iEP71..XL..SDZ198901-198906

SWITZERLAND SHIC,RED,RED,3E6

main76081-10030-03iEP7#,NP70..GL,XL198904-198912

MEDIUM GRAY-M,MEDIUM GRAY METALLIC,157

main76081-10030-03iEP71..XL..SDZ198901-198906

SWITZERLAND SHIC,MEDIUM GRAY-M,MEDIUM GRAY METALLIC,157

main76081-10030-08iEP71..S198612-198912

RH,WHITE,WHITE,041

main76081-10030-08iEP71..XL..SDZ198901-198906

SWITZERLAND SHIC,WHITE,WHITE,041

main76081-10030-08iEP7#,NP70..GL,XL198904-198912

WHITE,WHITE,041

main76081-10040iEP7#,NP70..GL,S,XL198612-198912

RH,BLACK

76083ASPOILER SUB-ASSY, FRONT LH

main76083-10010iEP71..DX,GL,XL198410-198612

LH

main76083-10030-02iEP7#,NP70..GL,XL198904-198912

RED,RED,3E6

main76083-10030-02iEP71..XL..SDZ198901-198906

SWITZERLAND SHIC,RED,RED,3E6

main76083-10030-02iEP71..S198612-198912

LH,RED,RED,3E6

main76083-10030-03iEP7#,NP70..GL,XL198904-198912

MEDIUM GRAY-M,MEDIUM GRAY METALLIC,157

main76083-10030-03iEP71..XL..SDZ198901-198906

SWITZERLAND SHIC,MEDIUM GRAY-M,MEDIUM GRAY METALLIC,157

main76083-10030-08iEP71..S198612-198912

LH,WHITE,WHITE,041

main76083-10030-08iEP71..XL..SDZ198901-198906

SWITZERLAND SHIC,WHITE,WHITE,041

main76083-10030-08iEP7#,NP70..GL,XL198904-198912

WHITE,WHITE,041

main76083-10040iEP7#,NP70..GL,S,XL198612-198912

LH,BLACK

76085SPOILER SUB-ASSY, REAR

main76085-10060-02iEP71..S198612-198912

RED,RED,3E6

sub76085-10060

main76085-10060-08iEP71..S198612-198912

WHITE,WHITE,041

sub76085-10060

main76085-19025iEP71198410-198503

sub76085-19026

main76085-19026iEP71..DX,GL,XL198503-198612

main76085-19026iEP7#..GL,S,XL198612-198912

BLACK

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-19135iEP7#,NP70198410-198912

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-19135iEP7#,NP70198410-198912

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-19245iEP7#198410-198612

sub76607-19455

main76607-19455iEP7#,NP70198612-198912

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-19245iEP7#198410-198612

sub76608-19455

main76608-19455iEP7#,NP70198612-198912

76865RETAINER, REAR SPOILER, NO.1

main76865-10010iEP71..DX,GL,XL198410-198912

76866RETAINER, REAR SPOILER, NO.2

main76866-10010iEP71..DX,GL,XL198410-198912

9010904008

main90109-04008

9015950145

main90159-50145

9015960008

main90159-60008

9015960237

main90159-60237

9015960283

main90159-60283

9016750019

main90167-50019

9017904017

main90179-04017

9018905047

main90189-05047

9018906006

main90189-06006

9018906060

main90189-06060

9018906061

main90189-06061

9046704009

main90467-04009

21 parts on this diagram · 1 diagram in section
