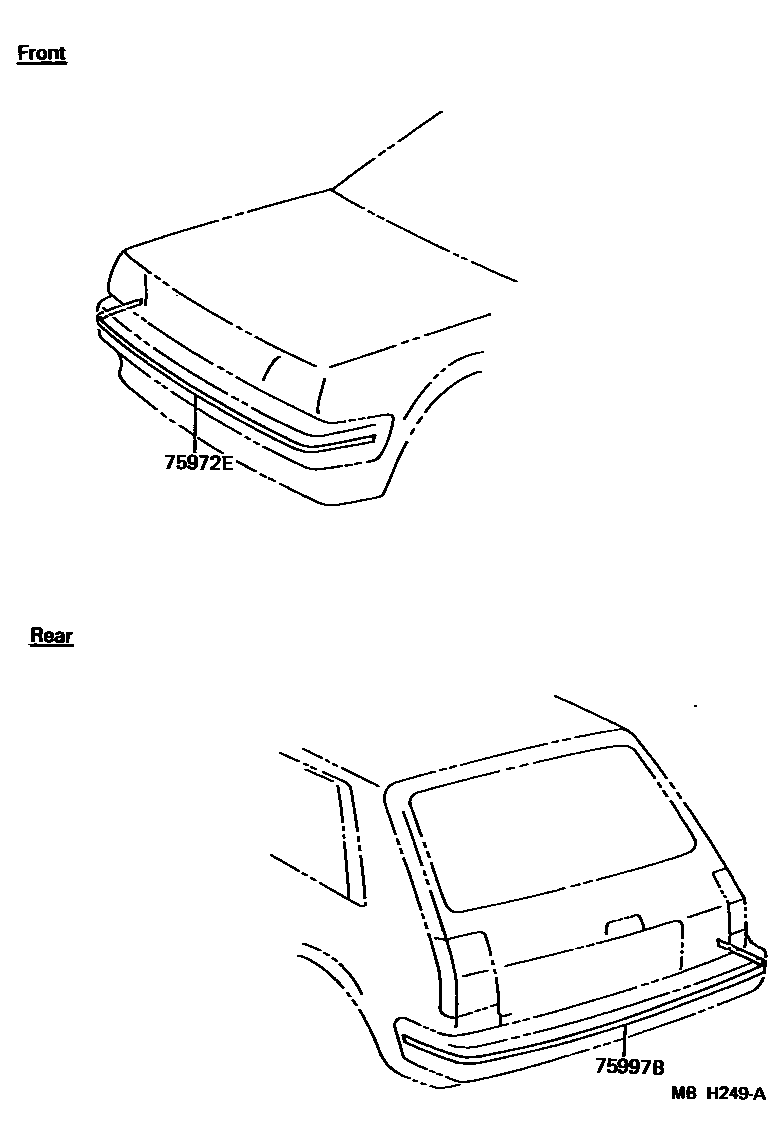

BODY STRIPE

75972ESTRIPE, FRONT BUMPER

main75972-10010iEP71..S198410-198702

S PACK

sub75972-10011

main75972-10011-02iEP71..S198702-198912

S PACK,RED,RED

main75972-10011-02iEP71..S198904-198912

RED,RED

main75972-10011-02iEP71..XL..SDZ198901-198906

SWITZERLAND SHIC,RED,RED

main75972-10011-03iEP7#,NP70..GL,XL198904-198912

GRAY,GRAY

main75972-10011-03iEP71..XL..SDZ198901-198906

SWITZERLAND SHIC,GRAY,GRAY

75997BSTRIPE, REAR BUMPER

main75997-10020iEP71..3D..5F..(DX,XL)198410-198702

S PACK

sub75997-10021

main75997-10020iEP71..S198612-198702

sub75997-10021

main75997-10021iEP71..S198702-198904

main75997-10021-02iEP71..XL..SDZ198901-198906

SWITZERLAND SHIC,RED,RED

main75997-10021-02iEP71..DX..FRG198702-198912

S PACK,RED,RED

main75997-10021-02iEP71..S198904-198912

RED,RED

main75997-10021-03iEP7#,NP70..GL,XL198904-198912

GRAY,GRAY

main75997-10021-03iEP71..XL..SDZ198901-198906

SWITZERLAND SHIC,GRAY,GRAY

2 parts on this diagram · 1 diagram in section
