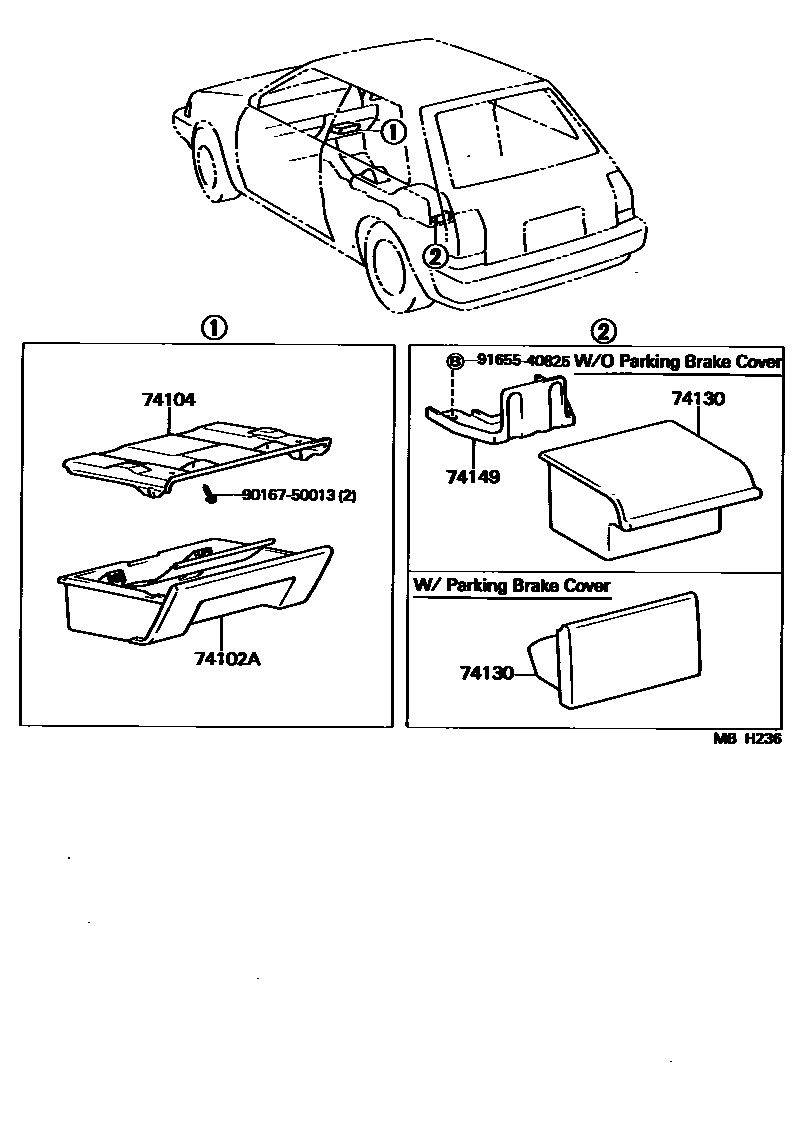

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-10030iEP7#,NP70198410-198912

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-10060iEP7#,NP70198410-198912

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-14iEP7#..GL198410-198612

BLUE,BLUE,TRIM8#

sub74109-20080

sub74130-12040

main74130-12040-23iEP71..3D..5F..(DX,XL)198410-198612

GRAY,GRAY,TRIM1#

sub74109-20080

sub74130-12040

main74130-12040-23iEP71..3D..5F..(DX,XL)198410-198612

S PACK,GRAY,GRAY,TRIM1#

sub74109-20080

sub74130-12040

main74130-12040-23iEP7#,NP70..XL198612-198912

W/PARKING BRAKE COVER,GRAY,GRAY,TRIM1#

sub74109-20080

sub74130-12040

main74130-20060-01iEP7#,NP70198410-198912

BLACK,BLACK,TRIM1#

sub74130-16010

sub74130-20060

74149SUPPORT, REAR ASH RECEPTACLE

main74149-10010iEP7#,NP70198410-198912

9016750013

main90167-50013

9165540825

main91655-40825

6 parts on this diagram · 1 diagram in section
