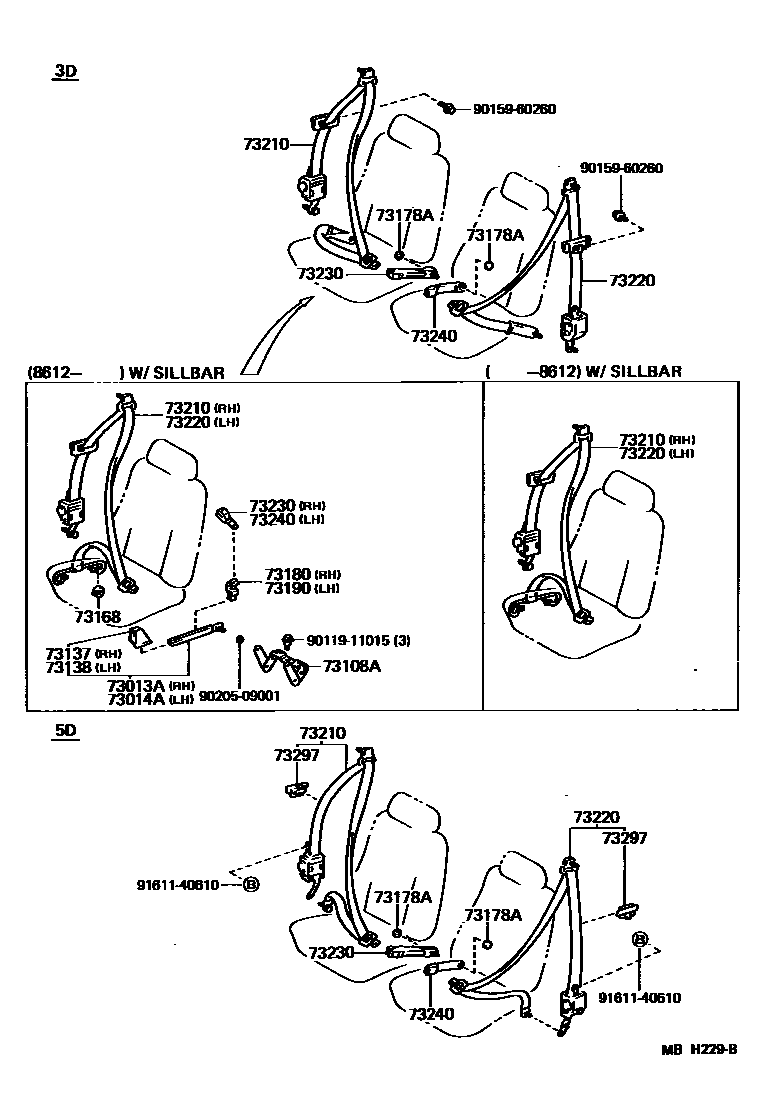

SEAT BELT & CHILD RESTRAINT SEAT
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
73108ABASE SUB-ASSY, FRONT SEAT BELT ANCHOR
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
73168STOPPER FRONT SEAT BELT LAP ANCHOR
NORWAY SPEC
73178ACAP, SEAT BELT ANCHOR COVER
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73210BELT ASSY, FRONT SEAT OUTER, RH
W/SILL BAR,GRAY,GRAY,TRIM1#
W/SILL BAR,BROWN,BROWN,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
W/SILL BAR,GRAY,GRAY,TRIM1#
W/SILL BAR,BLUE,BLUE,TRIM8#
73230BELT ASSY, FRONT SEAT INNER, RH
73240BELT ASSY, FRONT SEAT INNER, LH
73297COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
RH,GRAY,GRAY,TRIM1#
RH,BLUE,BLUE,TRIM8#
RH,BROWN,BROWN,TRIM4#
LH,GRAY,GRAY,TRIM1#
LH,BLUE,BLUE,TRIM8#
LH,BROWN,BROWN,TRIM4#
9011911015
main90119-11015
9015960260
main90159-60260
9020509001
main90205-09001
9161140610
main91611-40610
18 parts on this diagram · 2 diagrams in section
