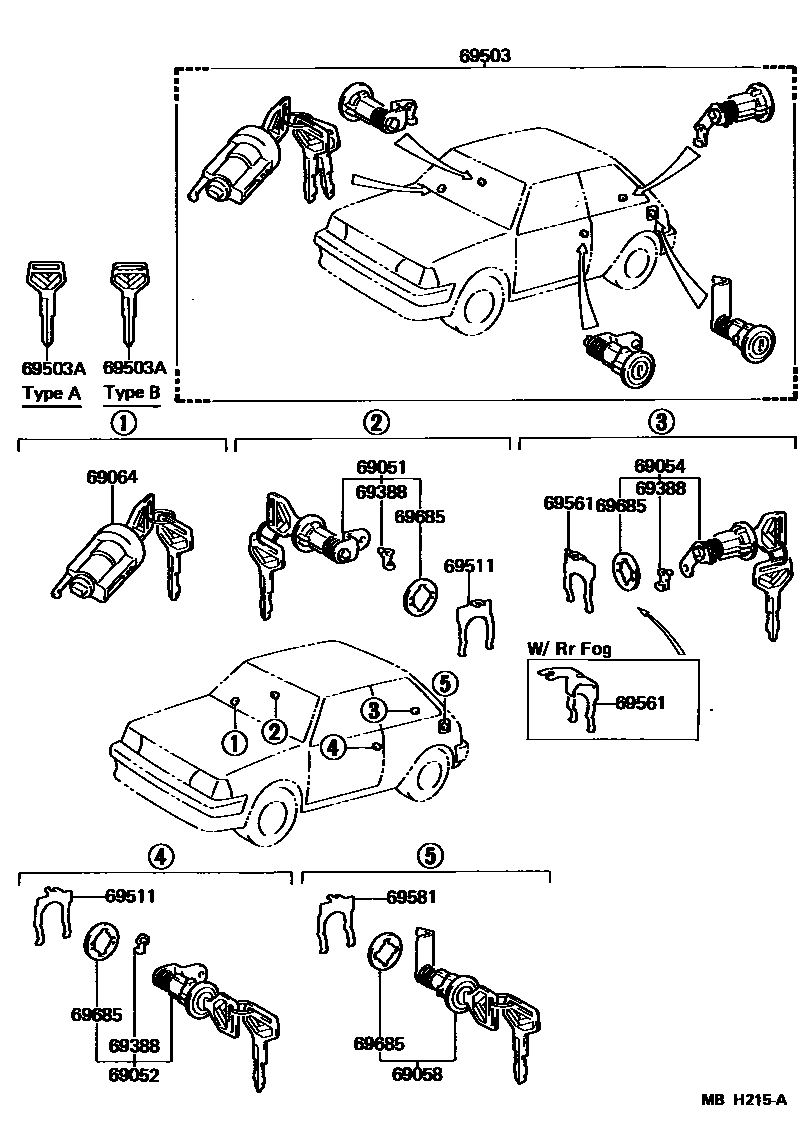

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-10100iEP7#198410-198612

sub69051-10170

main69051-10170iEP7#,NP70198612-198912

sub69051-60090

main69051-12170iEP7#..EUG,FRG198410-198612

*IPM

sub69051-60090

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-10100iEP7#198410-198612

sub69052-10170

main69052-10170iEP7#,NP70198612-198912

sub69052-60090

main69052-12170iEP7#..EUG,FRG198410-198612

*IPM

sub69052-60090

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-10080iEP7#..DX,GL,XL198410-198612

sub69055-10110

main69055-10110iEP7#..LHD..(DX,GL,XL)..(EUG,FRG)198410-198612

*IPM

main69055-10120iEP7#..STD198410-198612

sub69055-10131

main69055-10130iEP7#..STD198410-198612

*IPM

sub69055-10131

main69055-10131iEP7#,NP70198612-198912

main69055-10140iEP7#,NP70..RHD198612-198912

W/FUEL LID OPENER

main69055-10150iEP7#..RHD198410-198612

*IPM

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-16040iEP7#..EUG,FRG198410-198612

*IPM

main69058-16040iEP7#,NP70..STD,XL198612-198912

main69058-16070iEP7#198410-198612

sub69058-16040

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-10150iEP7#,NP70198612-198912

sub69057-32090

main69057-16050iEP7#..EUG,FRG198410-198612

*IPM

main69057-16070iEP7#198410-198612

sub69057-16050

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iEP7#,NP70198410-198912

FR DOOR RH,BACK DOOR

main69759-20090iEP7#,NP70198410-198912

FR DOOR LH

69503CYLINDER SET, LOCK

main69005-10100iEP7#..LHD..(DX,GL,XL)..(EUG,FRG)198410-198612

*IPM

main69005-10140iEP7#..DX,GL,XL198410-198612

sub69005-10100

main69005-10150iEP7#..STD198410-198612

sub69005-10160

main69005-10151iEP7#,NP70..STD,XL198612-198912

sub69005-10161

main69005-10160iEP7#..STD198410-198612

*IPM

main69005-10161iEP7#,NP70..STD,XL198612-198912

*IPM

main69005-10180iEP7#..RHD198410-198612

*IPM

main69005-10200iEP70..RHD..GL198612-198912

W/FUEL LID OPENER

sub69005-10210

main69005-10200iEP70..RHD..4F198906-198912

W/BACK DOOR OPENER

sub69005-10210

main69005-10210iEP70..RHD..GL198612-198912

*IPM,W/FUEL LID OPENER

main69005-10210iEP7#,NP70..LHD198612-198912

*IPM

main69005-10220iEP7#,NP70..RHD198612-198912

W/FUEL LID OPENER,RR FOG LAMP

69503AKEY, BLANK

main90999-00084iEP7#..EUG,FRG198410-198912

MASTER KEY,W(*68),*IPM,TYPE A

sub90999-00214

main90999-00086iEP7#198410-198912

MASTER KEY,TYPE A

main90999-00091iEP7#198410-198912

MASTER KEY,W(*70),TYPE B

sub90999-00086

main90999-00092iEP7#..EUG,FRG198410-198912

MSTER KEY,W(*69),*IPM,TYPE B

sub90999-00084

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iEP7#,NP70..STD,XL198612-198912

W/FUEL LID OPENER

main69511-32010iEP7#198410-198612

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69511-32010iEP7#,NP70198410-198912

main69561-10030iEP7#..RHD198410-198912

W/FOG LAMP

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iEP7#,NP70198410-198912

69685PAD, LOCK CYLINDER

main69513-32010iEP7#,NP70198410-198912

FR DOOR,FUEL LID

main69563-16010iEP7#,NP70198410-198912

BACK DOOR

12 parts on this diagram · 1 diagram in section
