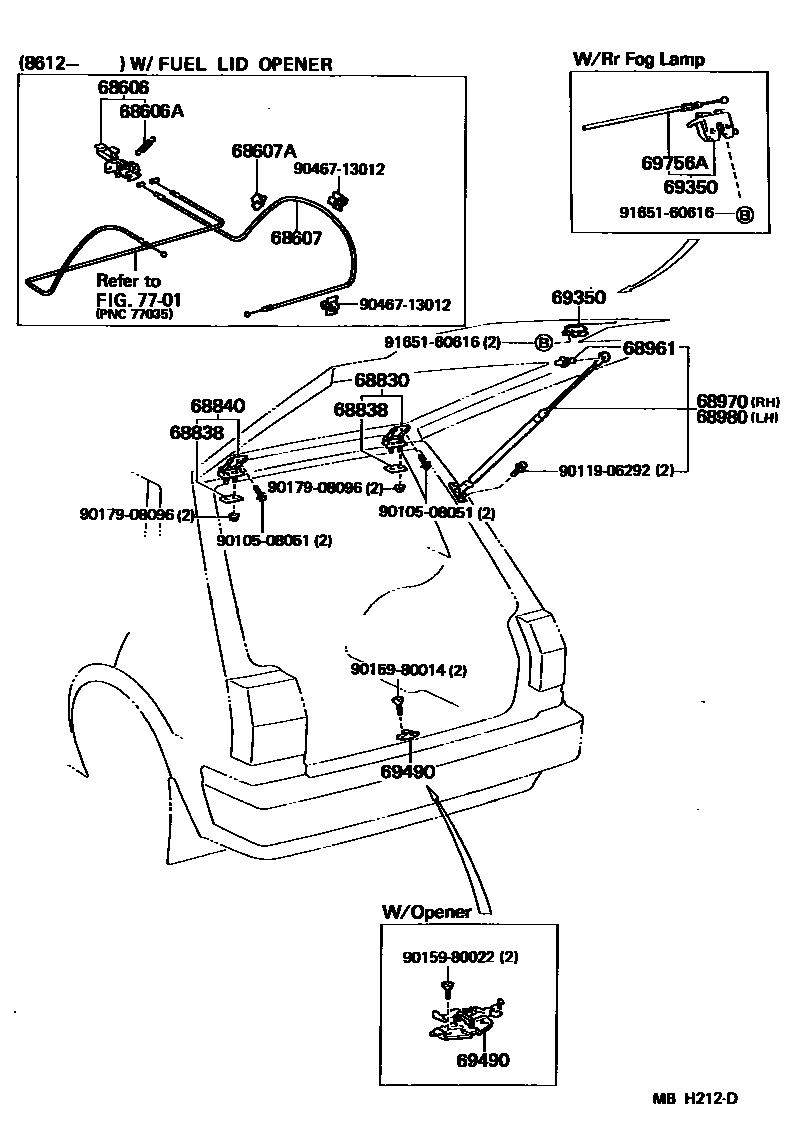

BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
W/BACK DOOR OPENER
W/BACK DOOR OPENER
W/FUEL LID OPENER
W/FUEL LID OPENER
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
68961BOLT, BACK DOOR STAY
69350LOCK ASSY, BACK DOOR
W/RR FOG LAMP
W/RR FOG LAMP
69490STRIKER ASSY, BACK DOOR LOCK
W/BACK DOOR OPENER
W/RR FOG LAMP
69756ACABLE, BACK DOOR LOCKING CONTROL
7701
9010508051
main90105-08051
9011906292
main90119-06292
9015980014
main90159-80014
9015980022
main90159-80022
9017908096
main90179-08096
9046713012
main90467-13012
9165160616
main91651-60616
21 parts on this diagram · 1 diagram in section
