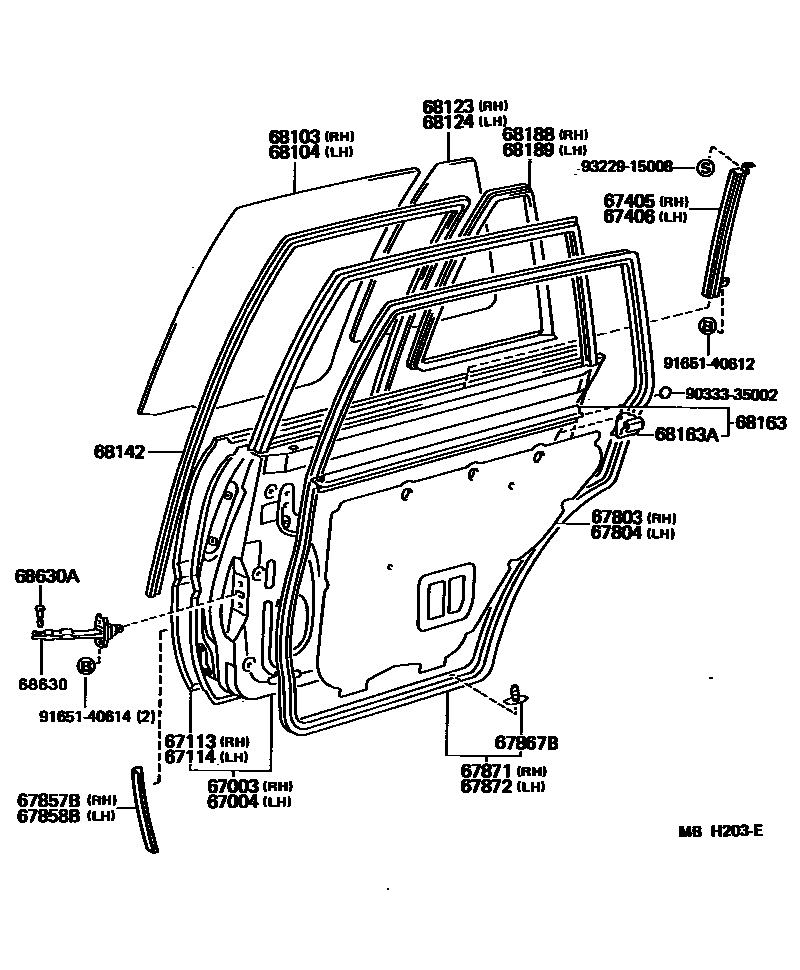

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-10090iEP7#,NP70¥51,200198410-198912

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-10100iEP7#,NP70¥51,200198410-198912

67113PANEL, REAR DOOR, OUTER RH

main67113-10080iEP7#,NP70¥20,100198410-198912

67114PANEL, REAR DOOR, OUTER LH

main67114-10070iEP7#,NP70¥20,100198410-198912

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-10040iEP7#,NP70¥3,240198410-198912

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-10040iEP7#,NP70¥3,240198410-198912

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-10030iEP7#,NP70..5D¥450198410-198912

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67842-10010iEP7#,NP70..5D¥450198410-198912

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-10010iEP7#,NP70..5D¥400198809-198912

main67857-12010iEP70..5D..5F;EP71,NP70..5D;EP70..5D..STD;EP70..5D..4F..FRG¥390198801-198809

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-10010iEP7#,NP70..5D¥400198809-198912

main67858-12010iEP70..5D..5F;EP71,NP70..5D;EP70..5D..STD;EP70..5D..4F..FRG¥390198801-198809

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30040iEP7#,NP70..5D¥110198410-198912

67871WEATHERSTRIP, REAR DOOR, RH

main67871-10050iEP7#,NP70..5D¥7,000198410-198912

67872WEATHERSTRIP, REAR DOOR, LH

main67872-10050iEP7#,NP70..5D¥7,000198410-198912

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-10070iEP7#,NP70..5D¥14,400198410-198912

*TEM,T=3.5,*TEM,T=3.5

sub68113-10080¥16,700

main68113-10080iEP7#,NP70..5D¥16,700198410-198912

*TT,T=3.5,*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-10070iEP7#,NP70..5D¥14,400198410-198912

*TEM,T=3.5,*TEM,T=3.5

sub68114-10080¥16,700

main68114-10080iEP7#,NP70..5D¥16,700198410-198912

*TT,T=3.5,*TT,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-10090iEP7#,NP70..5D¥4,640198410-198912

*TEM,T=3.5,*TEM,T=3.5

sub68123-10100¥5,300

main68123-10100iEP7#,NP70..5D¥5,300198410-198912

*TT,T=3.5,*TT,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-10090iEP7#,NP70..5D¥4,640198410-198912

*TEM,T=3.5,*TEM,T=3.5

sub68124-10100¥5,300

main68124-10100iEP7#,NP70..5D¥5,300198410-198912

*TT,T=3.5,*TT,T=3.5

68142RUN, REAR DOOR GLASS

main68142-10040iEP7#,NP70..5D¥2,260198410-198912

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-10070iEP7#,NP70..5D¥1,780198410-198912

RH

main68230-10030iEP7#,NP70..5D¥1,780198410-198912

LH

68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-10070iEP7#,NP70..5D¥270198410-198912

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-10030iEP7#,NP70..5D¥5,200198410-198912

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-10030iEP7#,NP70..5D¥5,200198410-198912

68630CHECK ASSY, REAR DOOR

main68630-10020iEP7#,NP70..5D¥3,370198410-198912

68630APIN(FOR REAR DOOR CHECK)

main68617-12010iEP7#..5D¥280198410-198507

sub68617-90A00¥280

main68617-90A00iEP7#,NP70..5D¥280198507-198912

sub68617-90A01¥300

9033335002

main90333-35002¥80

9165140612

main91651-40612¥70

9165140614

main91651-40614¥160

9322915008

main93229-15008¥80

28 parts on this diagram · 2 diagrams in section
