FRONT DOOR WINDOW REGULATOR & HINGE

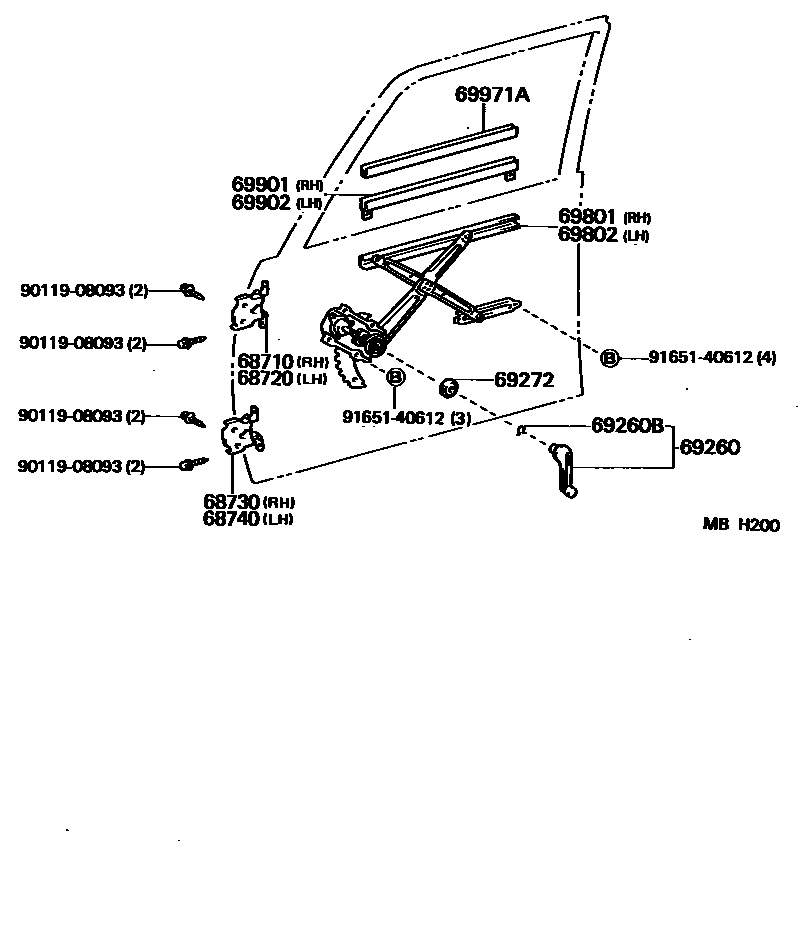

Parts diagram
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-12090i198410-198912
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-12090i198410-198912
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-24010i198410-198912
sub68730-60020
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-24010i198410-198912
sub68740-60020
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-10040-10i198612-198912
BROWN,SEPIA BROWN,TRIM4#
sub69260-10040
sub69260-16010
main69260-10040-24i198410-198612
BLUE,BLUE,TRIM8#
sub69260-10040
sub69260-16010
main69260-10040-33i198410-198612
GRAY,SHADOW GRAY,TRIM1#
sub69260-10040
sub69260-16010
main69260-10040-43i198612-198912
GRAY,GRAY,TRIM1#
sub69260-10040
sub69260-16010
main69260-14030-26i198612-198912
*IPM,BROWN,SEPIA BROWN,TRIM4#
sub69260-14030
main69260-14030-33i198410-198612
*IPM,GRAY,GRAY,TRIM1#
sub69260-14030
main69260-14030-44i198410-198612
*IPM,BLUE,BLUE,TRIM8#
sub69260-14030
main69260-14030-53i198612-198912
*IPM,GRAY,SHADOW GRAY,TRIM1#
sub69260-14030
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002i198410-198912
sub90520-01274
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69268-16010i198410-198912
*IPM
sub69268-20020
main69285-22010i198410-198912
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69810-10060i198410-198907
sub69810-10061
main69810-10061i198907-198912
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69820-10070i198410-198907
sub69820-10071
main69820-10071i198907-198912
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
main69901-10060i198410-198912
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
main69901-10060i198410-198912
69971AFILLER, FRONT DOOR GLASS CHANNEL
main69971-22010i198410-198912
sub69971-95110
9011908093
main90119-08093
9165140612
main91651-40612

14 parts on this diagram · 1 diagram in section
