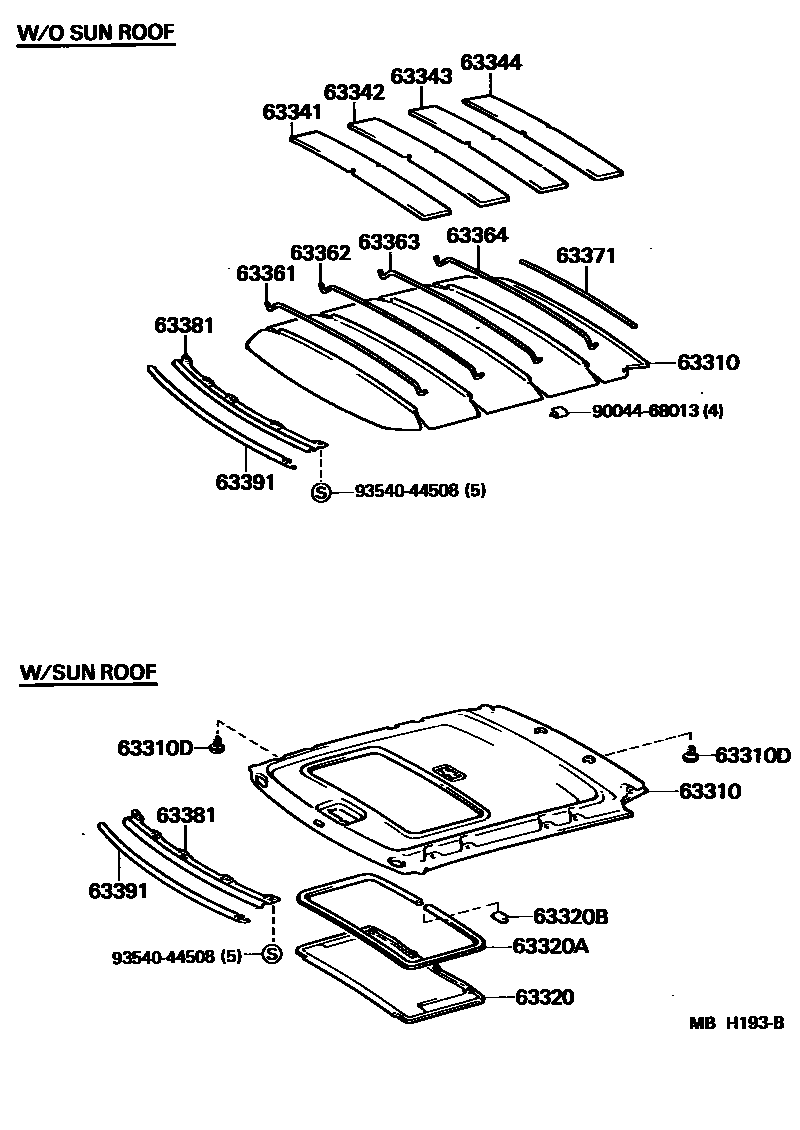

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-10150-08iEP7#..3D..(DX,GL,XL)198410-198612

W/SUN ROOF,IVORY,IVORY

sub63310-10150

main63310-10151-08iEP7#..3D..(GL,S,XL)198612-198912

W/SUN ROOF,IVORY,IVORY

main63310-10160-08iEP7#..3D198410-198612

IVORY,IVORY

sub63310-10160

main63310-10160-18iEP7#,NP70..3D198612-198912

IVORY,IVORY

sub63310-10160

main63310-10170-08iEP71..4F..XL;EP70..3D..STD198410-198612

FINLAND SPEC,IVORY

sub63310-10170

main63310-10170-18iEP7#..LHD..3D..EUG198612-198912

FINLAND SPEC,IVORY,IVORY

sub63310-10170

main63310-10180-08iEP7#..5D..(DX,GL,XL)198410-198612

W/SUN ROOF,IVORY,IVORY

sub63310-10180

main63310-10181-08iEP7#..5D..(GL,XL)198612-198912

W/SUN ROOF,IVORY,IVORY

main63310-10190-08iEP7#..5D..(DX,STD,XL)198410-198612

IVORY,IVORY

sub63310-10190

main63310-10190-18iEP7#,NP70..5D..(STD,XL)198612-198912

IVORY,IVORY

sub63310-10190

main63310-10200-08iEP71..5D..GL198410-198612

GL PACK,IVORY,IVORY

sub63310-10200

main63310-10200-08iEP7#..5D..(DX,XL)198410-198612

IVORY,IVORY

sub63310-10200

main63310-10200-18iEP71..GL198612-198912

IVORY,IVORY

sub63310-10200

main63310-10210-08iEP7#..LHD..5D..(STD,XL)..EUG198612-198912

FINLAND SPEC,IVORY,IVORY

main63310-10240-08iEP71..GL..EUG198612-198912

FINLAND SPEC,IVORY,IVORY

63310DCLIP, ROOF HEADLINING

main90467-06048-08iEP7#..DX,GL,XL198410-198612

FR SIDE,IVORY,IVORY

sub90467-06048

main90467-06048-38iEP7#..GL,S,XL198612-198912

IVORY

sub90467-06048

main90467-06052-08iEP7#..DX,GL,XL198410-198612

RR SIDE,IVORY,IVORY

sub90467-06052

sub71731-26020

main90467-06052-18iEP7#..GL,S,XL198612-198912

IVORY

sub90467-06052

sub71731-26020

main90467-06057-08iEP7#..DX,GL,XL198410-198612

RR CTR,IVORY,IVORY

sub90467-06057

main90467-06057-18iEP7#..GL,S,XL198612-198912

IVORY

sub90467-06057

63320HEADLINING ASSY, SUN ROOF OR REMOVABLE ROOF

main63320-10020-08iEP7#..DX,GL,XL198410-198612

IVORY,IVORY

sub63320-10020

main63320-10020-18iEP7#..GL,S,XL198612-198912

IVORY

sub63320-10020

63320AMOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM

main63318-10020-08iEP7#..DX,GL,XL198410-198612

IVORY,IVORY

main63318-10020-18iEP7#..GL,S,XL198612-198912

IVORY

63320BJOINT, SUN ROOF OPENING TRIM

main63319-14011iEP7#..DX,GL,XL198410-198912

63341PAD, ROOF SILENCER, NO.1

main63341-10060iEP7#,NP70198410-198912

sub63341-16010

main63341-10070iEP7#..LHD..EUG198410-198912

FINLAND SPEC

sub63341-22H92

63342PAD, ROOF SILENCER, NO.2

main63341-10060iEP7#,NP70198410-198912

sub63341-16010

main63341-10070iEP71..4F..XL;EP70..3D..STD198410-198912

FINLAND SPEC

sub63341-22H92

63343PAD, ROOF SILENCER, NO.3

main63341-10060iEP7#,NP70198410-198912

sub63341-16010

main63341-10070iEP71..4F..XL;EP70..3D..STD198410-198912

FINLAND SPEC

sub63341-22H92

63344PAD, ROOF SILENCER, NO.4

main63341-10060iEP7#,NP70198410-198912

sub63341-16010

main63341-10070iEP7#..LHD..EUG198410-198912

FINLAND SPEC

sub63341-22H92

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-10040iEP7#,NP70198410-198912

L=961

sub63361-10060

main63361-10050iEP7#,NP70198410-198912

L=964

sub63361-10060

main63361-10060iEP7#,NP70198410-198912

L=967

63362SUPPORT, ROOF HEADLINING, NO.2

main63362-10040iEP7#,NP70198410-198912

L=934

sub63362-10060

main63362-10050iEP7#,NP70198410-198912

L=937

sub63362-10060

main63362-10060iEP7#,NP70198410-198912

L=940

63363SUPPORT, ROOF HEADLINING, NO.3

main63362-10040iEP7#,NP70198410-198912

L=934

sub63362-10060

main63362-10050iEP7#,NP70198410-198912

L=937

sub63362-10060

main63362-10060iEP7#,NP70198410-198912

L=940

63364SUPPORT, ROOF HEADLINING, NO.4

main63362-10040iEP7#,NP70198410-198912

L=934

sub63362-10060

main63362-10050iEP7#,NP70198410-198912

L=937

sub63362-10060

main63362-10060iEP7#,NP70198410-198912

L=940

63371HOOK, ROOF HEADLINING SUPPORT

main63372-10020iEP70..3D..XL198612-198912

FULL FABRIC

main63372-10020iEP7#..DX,XL198410-198612

GL PACK,S PACK

main63372-10020iEP7#..GL,S198410-198912

main63372-10030iEP7#,NP70..STD,XL198410-198912

63381RETAINER, HEADLINING, FRONT

main63381-10010iEP7#,NP70198410-198912

63391TRIM, ROOF HEADLINING, FRONT

main63391-10030-03iEP7#..GL,S,XL198410-198912

W/SUN ROOF,GRAY,GRAY,TRIM1#

sub63391-10030

main63391-10030-04iEP7#..DX,GL,XL198410-198612

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub63391-10030

main63391-10030-06iEP7#..GL,S,XL198612-198912

W/SUN ROOF,BROWN,BROWN,TRIM4#

sub63391-10030

main63391-10040-03iEP7#,NP70198410-198912

GRAY,GRAY,TRIM1#

sub63391-10040

sub63391-10030

main63391-10040-04iEP7#198410-198612

BLUE,BLUE,TRIM8#

sub63391-10040

sub63391-10030

main63391-10040-06iEP7#,NP70198612-198912

BROWN,BROWN,TRIM4#

sub63391-10040

sub63391-10030

9004468013

main90044-68013

9354044508

main93540-44508

18 parts on this diagram · 1 diagram in section
