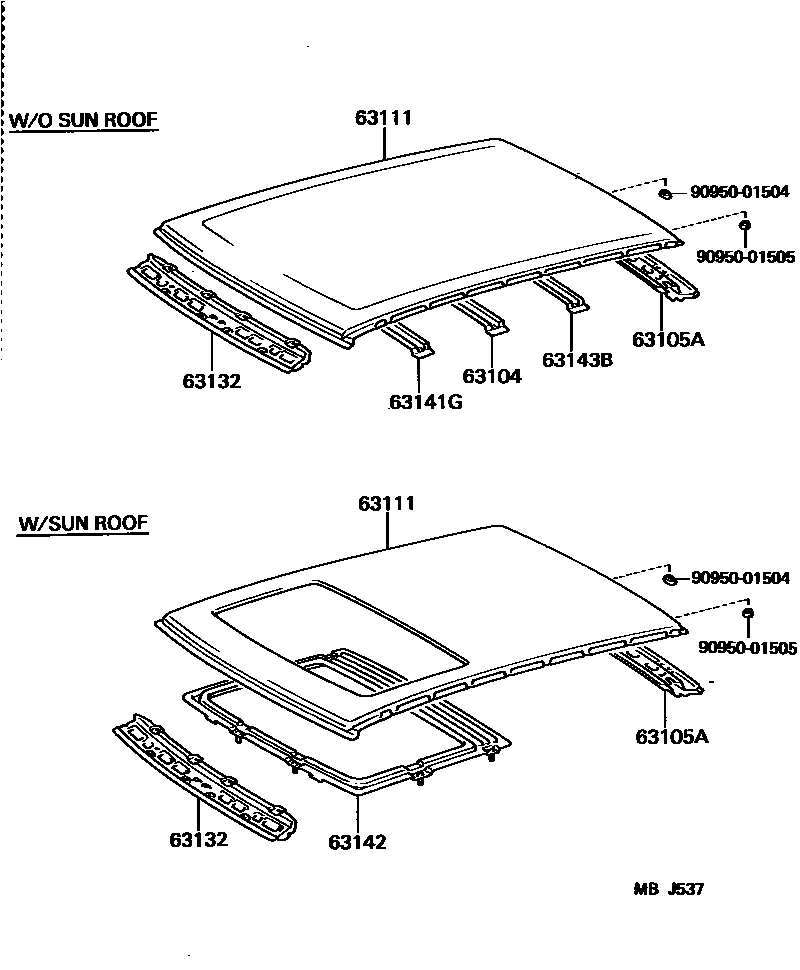

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-10010iEP7#,NP70198410-198912

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-10050iEP7#198410-198509

W/RR WIPER

sub63105-10080

main63105-10060iEP7#198410-198509

W/O RR WIPER,W/*DEF

sub63105-10080

main63105-10070iEP7#..STD198410-198509

W/O RR WIPER,*DEF

sub63105-10080

main63105-10080iEP7#,NP70198509-198912

63111PANEL, ROOF

main63111-10070iEP7#,NP70198410-198912

W/O SUN ROOF

main63111-10080iEP7#..DX,GL198410-198912

W/SUN ROOF

63132PANEL, WINDSHIELD HEADER, INNER

main63132-10080iEP7#,NP70198410-198912

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-10050iEP7#,NP70198410-198912

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-10010iEP7#..DX,GL198410-198912

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-10010iEP7#,NP70198410-198912

9095001504

main90950-01504

9095001505

main90950-01505

9 parts on this diagram · 2 diagrams in section
