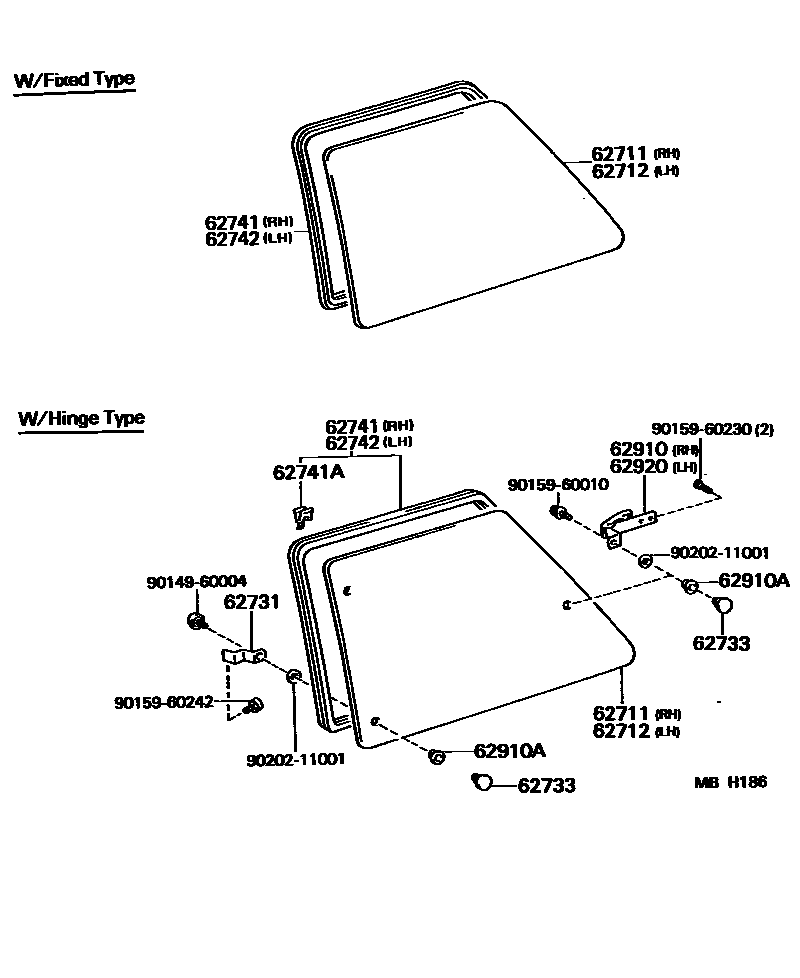

QUARTER WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-10180iEP7#,NP70..3D..(STD,XL)198410-198912

*TEM,T=3.5,W/FIXED TYPE,*TEM,T=3.5

main62711-10190iEP7#,NP70..3D198410-198912

*TEM,T=4.0,W/HINGE TYPE,*TEM,T=4.0

main62711-10200iEP7#,NP70..3D198410-198912

*TT,T=4.0,W/HINGE TYPE*TT,T=4.0

62712GLASS, QUARTER WINDOW, LH

main62712-10130iEP7#,NP70..3D..(STD,XL)198410-198912

*TEM,T=3.5,W/FIXED TYPE,*TEM,T=3.5

main62712-10140iEP7#,NP70..3D198410-198912

*TEM,T=4.0,W/HINGE TYPE,*TEM,T=4.0

sub62712-10150

main62712-10150iEP7#,NP70..3D198410-198912

*TT,T=4.0,W/HINGE TYPE*TT,T=4.0

62731PLATE, QUARTER OR SIDE WINDOW HINGE

main62731-10090iEP7#,NP70..3D198410-198912

62733RETAINER, QUARTER OR SIDE WINDOW HINGE

main62735-14010iEP7#,NP70..3D198410-198912

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-10070iEP7#..3D..(DX,STD,XL)198410-198912

W/FIXED TYPE

main62741-10080iEP7#,NP70..3D198410-198912

W/HINGE TYPE

62741ACLIP, QUARTER WINDOW WEATHERSTRIP

main62759-12010iEP7#,NP70..3D198410-198912

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62742-10070iEP7#,NP70..3D..(STD,XL)198410-198912

W/FIXED TYPE

main62742-10080iEP7#,NP70..3D198410-198912

W/HINGE TYPE

62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH

main62910-10070iEP7#,NP70..3D198410-198912

62910AGASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)

main90385-11001iEP7#,NP70..3D198410-198912

62920LOCK ASSY, QUARTER WINDOW, LH

main62910-10070iEP7#,NP70..3D198410-198912

9014960004

main90149-60004

9015960010

main90159-60010

9015960230

main90159-60230

9015960242

main90159-60242

9020211001

main90202-11001

15 parts on this diagram · 1 diagram in section
