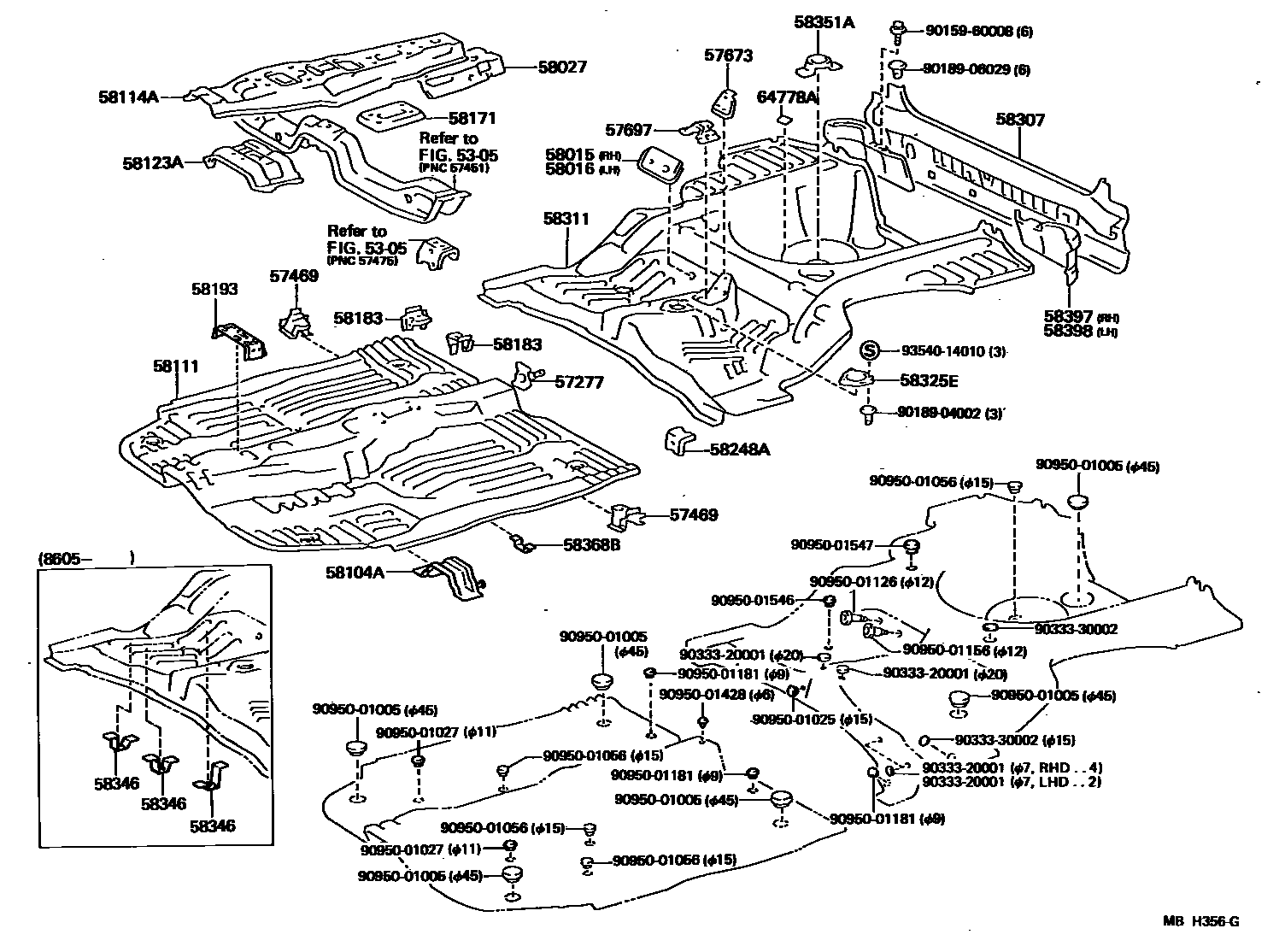

FLOOR PAN & LOWER BACK PANEL
5305
57277BRACKET, CATALYTIC CONVERTER SUPPORT, RH
57469BRACKET, FRONT SEAT, OUTSIDE
RH
LH
57673BRACKET, REAR SEATBACK HINGE MOUNTING
57697RETAINER, REAR SEAT CUSHION
58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58027REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1
sub58027-10011
sub58027-10030
sub58027-10021
W/INNER SLIDE
W/SILL BAR SLIDE
W/INNER SLIDE
58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58171REINFORCEMENT, PARKING BRAKE BASE
SWEDEN SPEC
58183BRACKET, FRONT SEAT MOUNTING, INNER
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
W/SEPARATE SEAT
W/BENCH SEAT
58325ECOVER, REAR FLOOR SERVICE HOLE
58346BRACKET, REAR FLOOR HEAT INSULATOR
58351ABRACKET, SPARE WHEEL CARRIER
58368BBRACKET, FUEL TUBE, NO.2
58398COVER, LOWER BACK, OUTER LH
64778APROTECTOR, SPARE WHEEL
9015960008
main90159-60008
9018904002
main90189-04002
9018906029
main90189-06029
9033320001
main90333-20001
9033330002
main90333-30002
9095001005
main90950-01005
9095001025
main90950-01025
9095001027
main90950-01027
9095001056
main90950-01056
9095001126
main90950-01126
9095001156
main90950-01156
9095001181
main90950-01181
9095001428
main90950-01428
9095001546
main90950-01546
9095001547
main90950-01547
9354014010
main93540-14010
41 parts on this diagram · 1 diagram in section
