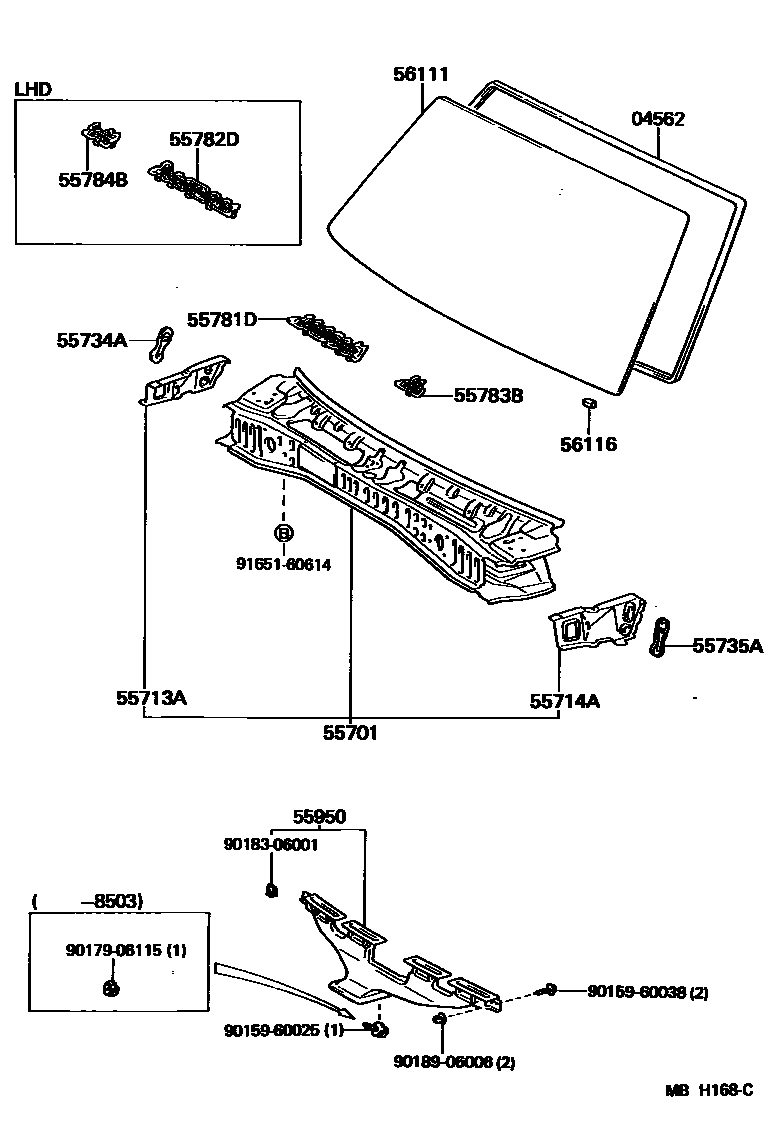

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iEP7#,NP70198410-198912

55701PANEL SUB-ASSY, COWL

main55700-10130iEP7#,NP70..LHD198410-198912

main55700-10140iEP7#,NP70..RHD198410-198912

55713APANEL, COWL TOP SIDE, RH

main55713-10040iEP7#,NP70198410-198912

55714APANEL, COWL TOP SIDE, LH

main55714-10030iEP7#,NP70198410-198912

55734APLATE, WATER GUARD, RH

main55734-10040iEP7#,NP70198410-198912

55735APLATE, WATER GUARD, LH

main55734-10040iEP7#,NP70198410-198912

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-10020iEP7#,NP70..RHD198410-198912

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-10010iEP7#,NP70..LHD198410-198912

main55782-10020iEP7#..LHD..(EUG,FRG)198608-198912

COLD SPEC

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-10020iEP7#,NP70..RHD198410-198912

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-10010iEP7#,NP70..LHD198410-198912

main55784-10020iEP7#..LHD..(EUG,FRG)198608-198912

COLD SPEC

55950NOZZLE ASSY, DEFROSTER

main55950-10030iEP7#,NP70..RHD198410-198912

main55950-10040iEP7#,NP70..LHD198410-198912

56111GLASS, WINDSHIELD

main56111-10200iEP7#,NP70..EUG,FRG198410-198912

*ZT,T=5.0,*TEM,T=5.0

sub56111-10240

main56111-10210iEP7#,NP70..EUG,FRG198410-198912

*TZT,T=5.0,*TT,T=5.0

sub56111-10250

main56111-10240iEP7#,NP70198410-198912

*LAM,T=5.3,*LAM,T=5.3

main56111-10250iEP7#,NP70198410-198912

*TL,T=5.3,*TL,T=5.3

56116SPACER, WINDSHIELD GLASS

main56116-24010iEP7#,NP70198410-198912

9015960025

main90159-60025

9015960038

main90159-60038

9017906115

main90179-06115

9018306001

main90183-06001

9018906006

main90189-06006

9165160614

main91651-60614

19 parts on this diagram · 1 diagram in section
