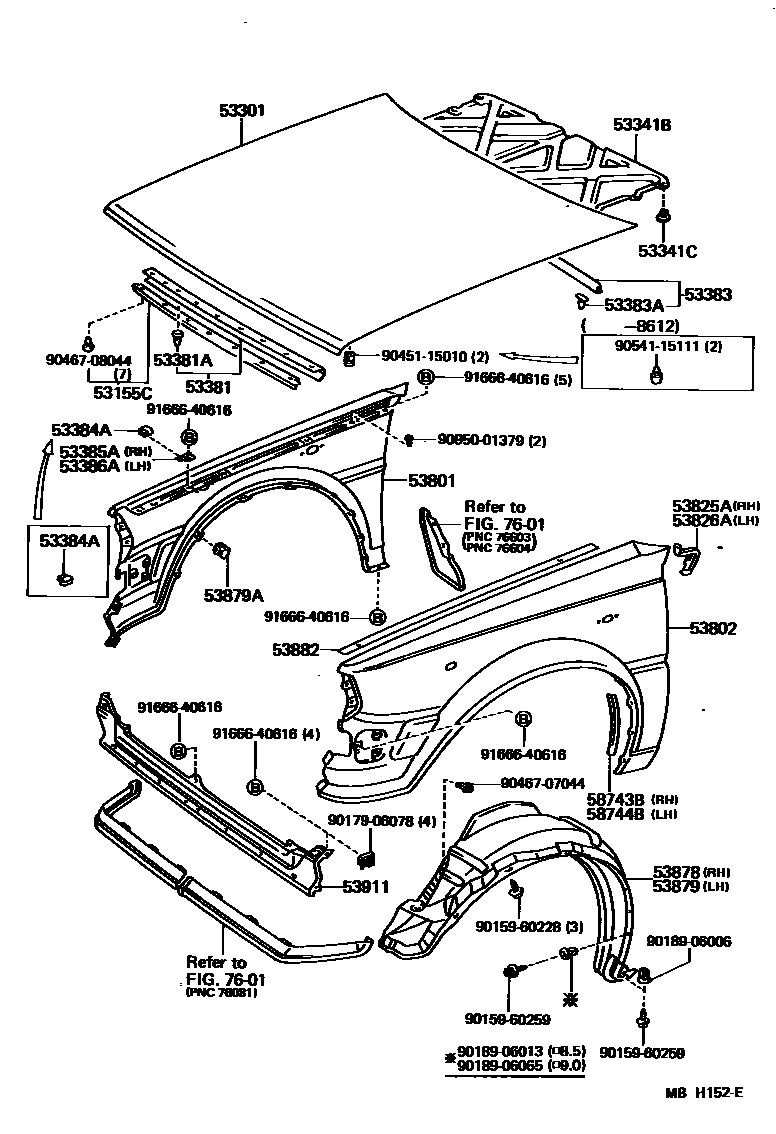

HOOD & FRONT FENDER

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-10050iNP70¥500198612-198912

53301HOOD SUB-ASSY

main53301-10230iEP7#,NP70¥33,700198410-198912

53341BINSULATOR, HOOD

main53341-10020iNP70¥8,000198612-198912

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNP70¥120198612-198912

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-10040iEP7#..LHD..(EUG,FRG)¥2,100198410-198912

main53381-10050iNP70198612-198912

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iEP7#..LHD..(EUG,FRG)¥100198410-198912

main90467-08044iNP70¥170198612-198912

sub90467-08011¥100

53383SEAL, HOOD TO COWL TOP

main53383-10020iEP7#,NP70¥1,830198410-198912

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08030iEP7#,NP70¥170198410-198912

53384ABUMPER, FENDER TO HOOD

main53384-10040iEP7#¥450198410-198508

main53384-10050iEP7#,NP70¥310198508-198807

sub53384-10051¥460

main53384-10051iEP7#,NP70¥460198807-198912

53385ARETAINER, HOOD BUMPER, RH

main53385-14010iEP7#,NP70¥270198508-198912

53386ARETAINER, HOOD BUMPER, LH

main53386-14010iEP7#,NP70¥270198508-198912

53801FENDER SUB-ASSY, FRONT RH

main53801-10480iEP7#198410-198508

sub53801-10481¥31,400

sub53384-10050¥310

sub53385-14010¥270

main53801-10481iEP7#,NP70¥31,400198508-198912

53802FENDER SUB-ASSY, FRONT LH

main53802-10580iEP7#198410-198508

sub53802-10581¥31,400

sub53384-10050¥310

sub53386-14010¥270

main53802-10581iEP7#,NP70¥31,400198508-198912

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-10030iEP7#,NP70¥210198410-198912

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-10030iEP7#,NP70¥210198410-198912

53878LINER, FRONT FENDER, RH

main53875-10020iEP7#,NP70¥4,940198410-198912

53879LINER, FRONT FENDER, LH

main53876-10020iEP7#,NP70¥4,940198410-198912

53879ARETAINER, FRONT FENDER LINER

main53879-10010iEP7#,NP70¥230198410-198912

sub53879-22010¥230

53882PACKING, FRONT FENDER MAIN

main53882-10050iEP7#,NP70¥750198410-198912

53911PANEL, FRONT VALANCE

main53911-10110iEP7#..DX,STD,XL¥10,300198410-198912

W/O LWR GRILLE,SPOILER

main53911-10120iEP7#..DX,GL,XL¥10,300198410-198912

W/LWR GRILLE,W/O SPOILER

main53911-10130iEP70..GL¥10,300198410-198912

W/SPOILER

58743BPROTECTER, FRONT FENDER PANEL, RH

main58743-12010iEP7#,NP70¥860198801-198912

W/O FRONT MUD GUARD

58744BPROTECTER, FRONT FENDER PANEL, LH

main58743-12010iEP7#,NP70¥860198801-198912

W/O FRONT MUD GUARD

7601

9015960228

main90159-60228¥130

9015960259

main90159-60259¥100

9017906078

main90179-06078¥130

9018906006

main90189-06006¥100

9018906013

main90189-06013¥70

9018906065

main90189-06065¥80

9045115010

main90451-15010

9046707044

main90467-07044¥140

9046708044

main90467-08044¥170

9054115111

main90541-15111¥330

9095001379

main90950-01379¥250

9166640616

main91666-40616¥180

35 parts on this diagram · 1 diagram in section
