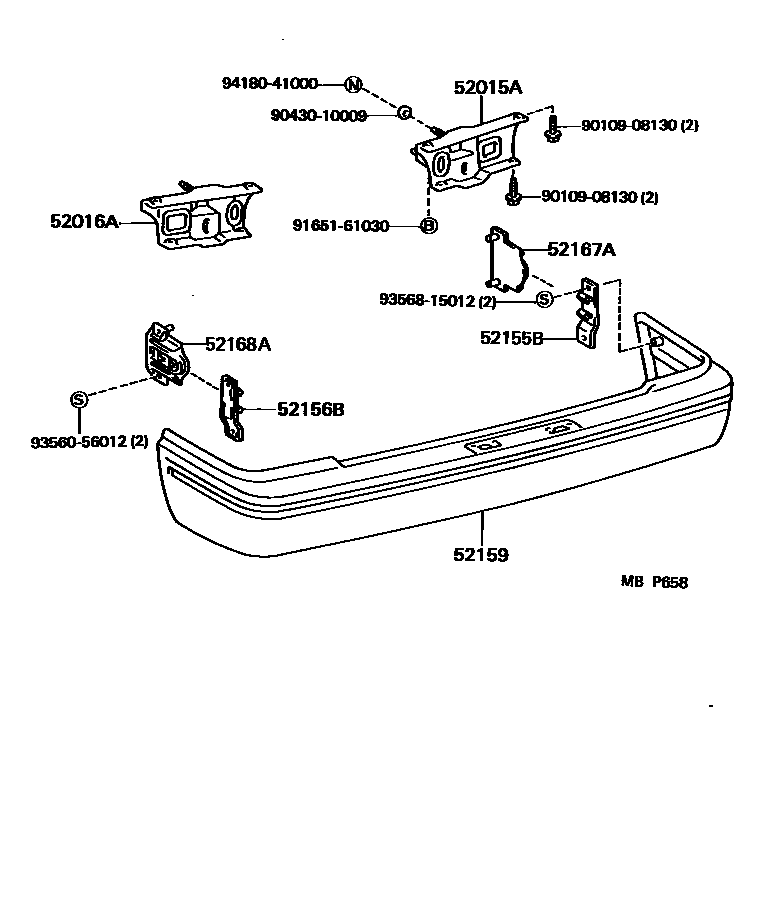

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-10060iEP7#,NP70198410-198912

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-10060iEP7#,NP70198410-198912

52155BSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-10020iEP7#,NP70198410-198912

52156BSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52157-10020iEP7#,NP70198410-198912

52159COVER, REAR BUMPER

main52159-10070iEP7#,NP70198410-198912

52167ASUPPORT, REAR BUMPER SIDE, NO.4 RH

main52167-10020iEP7#,NP70198410-198912

52168ASUPPORT, REAR BUMPER SIDE, NO.4 LH

main52167-10020iEP7#,NP70198410-198912

9010908130

main90109-08130

9043010009

main90430-10009

9165161030

main91651-61030

9356056012

main93560-56012

9356815012

main93568-15012

9418041000

main94180-41000

13 parts on this diagram · 1 diagram in section
