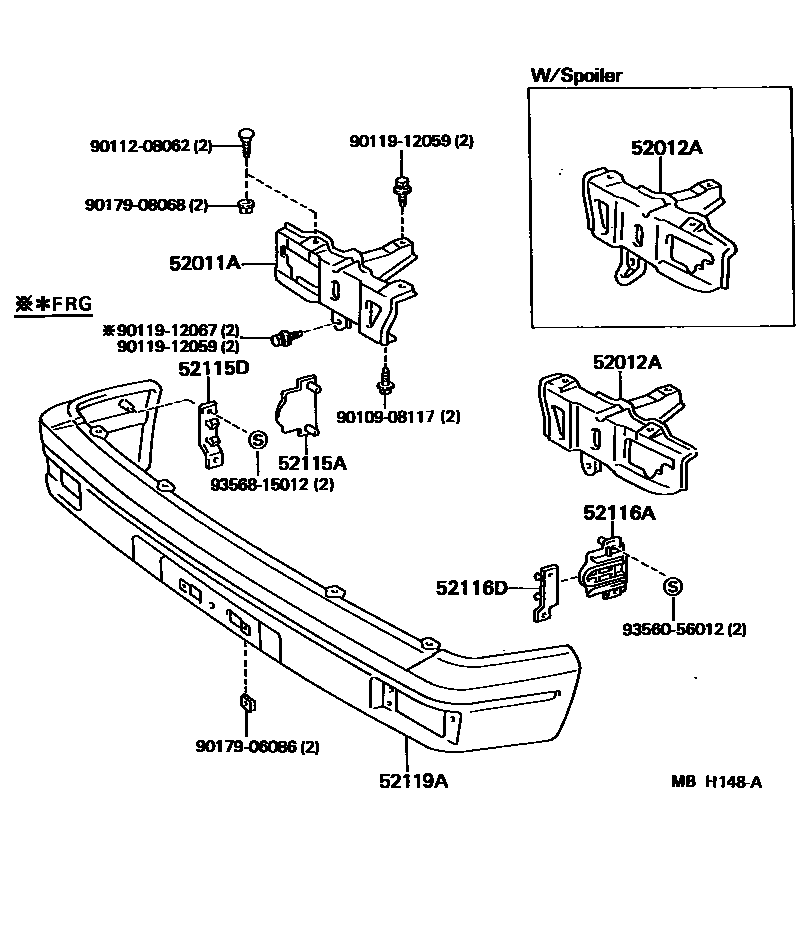

FRONT BUMPER & BUMPER STAY
52011AARM SUB-ASSY, FRONT BUMPER, RH
52012AARM SUB-ASSY, FRONT BUMPER, LH
W/SPOILER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH
52119ACOVER, FRONT BUMPER
W/*HC
9010908117
main90109-08117
9011208062
main90112-08062
9011912059
main90119-12059
9011912067
main90119-12067
9017906086
main90179-06086
9017908068
main90179-08068
9356056012
main93560-56012
9356815012
main93568-15012
15 parts on this diagram · 1 diagram in section
