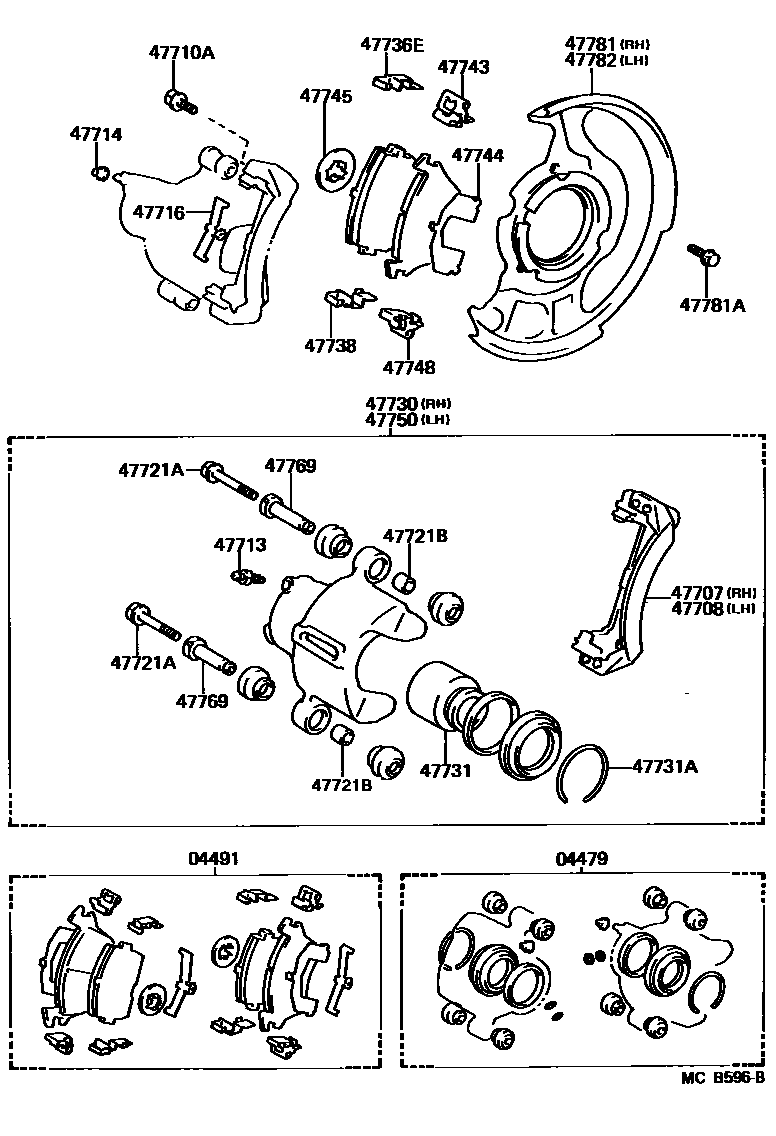

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-10050iEP7#198410-198501

sub04479-10051

main04479-10051iEP7#,NP70198501-198912

04491PAD KIT, DISC BRAKE, FRONT

main04491-10070iEP7#,NP70198410-198801

sub04465-10160

main04491-10100iEP71..3D..(S,XL)198707-198711

SWEDEN SPEC

sub04491-10101

main04491-10101iEP71..3D..(S,XL)198711-198801

SWEDEN SPEC

sub04465-10090

main04491-10101iEP7#,NP70198801-198912

sub04465-10090

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-10040iEP7#,NP70..DX,GL,STD,XL198410-198912

main47707-10050iEP71198410-198612

S PACK

main47707-10050iEP71..S198612-198912

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47707-10040iEP7#,NP70..DX,GL,STD,XL198410-198912

main47707-10050iEP71..S198612-198912

main47707-10050iEP71198410-198612

S PACK

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12086iEP7#,NP70198410-198912

sub91512-81220

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-10050iEP7#,NP70198608-198912

main47547-20010iEP7#198410-198608

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iEP7#,NP70198410-198912

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-10020iEP7#,NP70198410-198912

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-08217iEP7#,NP70198410-198912

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-13002iEP7#,NP70198410-198912

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-10060iEP7#198410-198608

sub47730-10061

main47730-10061iEP7#,NP70..DX,GL,STD,XL198608-198912

main47730-10070iEP71198410-198608

S PACK

sub47730-10071

main47730-10071iEP71198608-198612

S PACK

main47730-10071iEP71..S198612-198912

47731PISTON, FRONT DISC BRAKE

main47731-12040iEP7#,NP70198410-198912

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-56001iEP7#,NP70198410-198912

47736EPLATE, FRONT DISC BRAKE PAD GUIDE, NO.1

main47736-10010iEP7#,NP70198410-198912

47738PLATE, DISC BRAKE PAD GUIDE, NO.2

main47738-10020iEP7#,NP70198410-198912

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-10020iEP7#,NP70198410-198912

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-10020iEP7#,NP70198410-198801

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-10020iEP7#,NP70198410-198801

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-10040iEP7#,NP70198410-198912

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-10060iEP7#198410-198608

sub47750-10061

main47750-10061iEP7#,NP70..DX,GL,STD,XL198608-198912

main47750-10070iEP71198410-198608

S PACK

sub47750-10071

main47750-10071iEP71..S198612-198912

main47750-10071iEP71198608-198612

S PACK

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-10020iEP7#,NP70198410-198912

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10040iEP7#,NP70198410-198912

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iEP7#,NP70198410-198912

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10040iEP7#,NP70198410-198912

24 parts on this diagram · 2 diagrams in section
