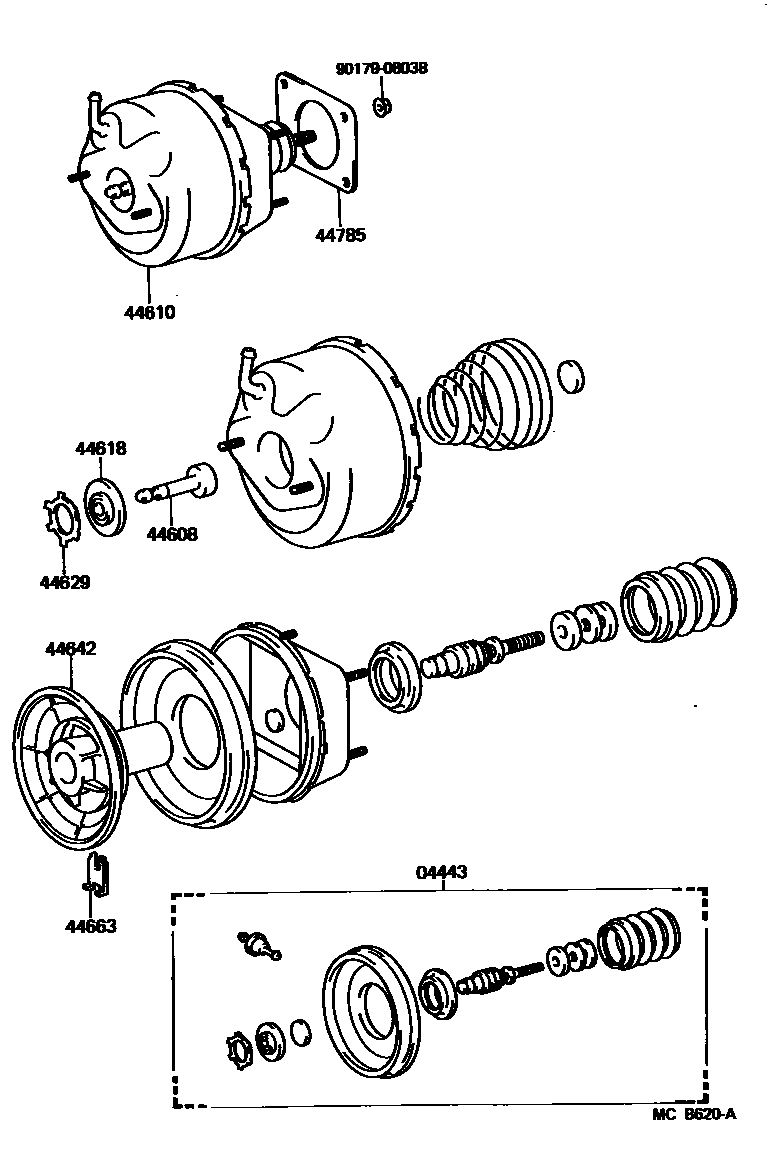

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-10060iEP7#¥9,300198410-198912

main04443-10160iNP70¥9,300198612-198912

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iEP7#,NP70¥2,660198410-198912

44610BOOSTER ASSY, BRAKE

main44610-10060iEP7#¥35,100198410-198912

main44610-10140iNP70198612-198912

44618SEAL, BOOSTER BODY

main44621-28120iEP7#,NP70¥590198410-198912

44629RING, CIRCULAR INTERNAL

main44628-28120iEP7#,NP70¥390198410-198912

44642PISTON, BRAKE BOOSTER

main44642-10060iEP7#,NP70198410-198912

44663KEY, VALVE STOPPER

main44635-12480iEP7#,NP70¥200198410-198912

44785GASKET, BRAKE BOOSTER

main44785-14010iEP7#,NP70¥250198410-198912

9017908038

main90179-08038¥130

9 parts on this diagram · 4 diagrams in section
