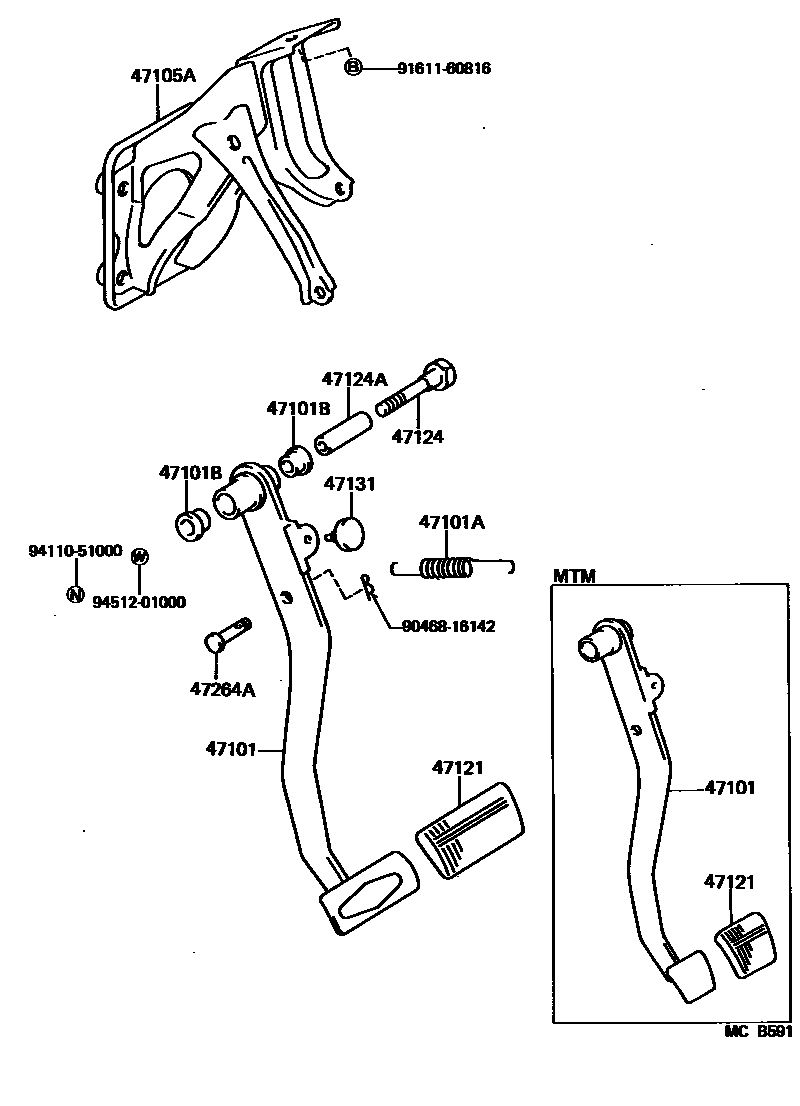

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-10170iEP71..3FC198410-198912

main47101-10180iEP7#,NP70..LHD..MTM198410-198912

main47101-10190iEP7#,NP70..RHD198410-198912

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14017iEP7#,NP70198410-198912

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192iEP7#,NP70198410-198912

47105ASUPPORT SUB-ASSY, BRAKE PEDAL

main55106-10200iEP7#,NP70..LHD198410-198912

main55106-10210iEP7#,NP70..RHD198410-198912

47121PAD, BRAKE PEDAL

main31321-14020iEP7#,NP70..MTM198410-198912

main47121-12020iEP71..3FC198410-198912

47124SHAFT, BRAKE PEDAL

main90101-10015iEP7#,NP70198410-198912

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iEP7#,NP70198410-198912

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iEP7#,NP70198410-198912

47264APIN(FOR PUSH ROD)

main90249-08051iEP7#,NP70198410-198912

9046816142

main90468-16142

9161160816

main91611-60816

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
