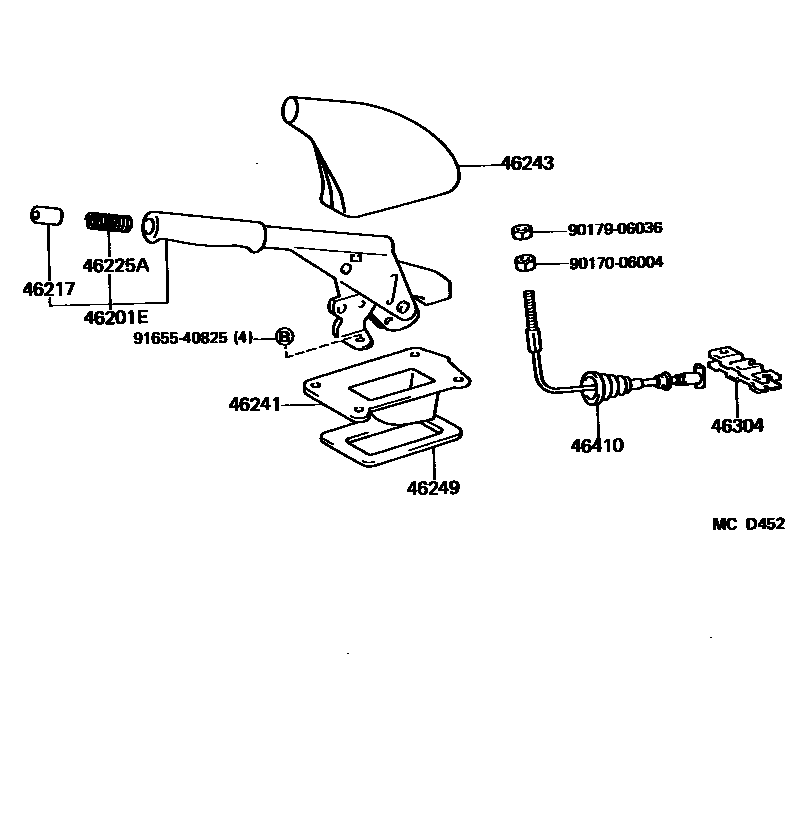

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-10070-01iEP7#..RHD198410-198611

BLACK,BLACK,TRIM1#

sub46201-10071

sub46201-10070

main46201-10071-01iEP7#,NP70198611-198801

BLACK,BLACK,TRIM1#

sub46201-10072

main46201-10072-01iEP7#,NP70198801-198912

BLACK,BLACK,TRIM1#

sub46201-10072

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-01iEP7#,NP70198410-198801

BLACK,BLACK,TRIM1#

sub46217-10020

sub46217-20020

main46217-12020-01iEP7#,NP70198801-198912

BLACK,BLACK,TRIM1#

sub46217-12020

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iEP7#,NP70198410-198912

46241BOOT, PARKING BRAKE LEVER

main46241-20050iEP7#,NP70198410-198912

46243COVER, PARKING BRAKE LEVER

main46243-10030-01iEP7#..DX,STD,XL198410-198912

BLACK,BLACK,TRIM1#

sub46243-10030

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-16020iEP7#,NP70198410-198912

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-10050iEP7#,NP70198410-198912

9017006004

main90170-06004

9017906036

main90179-06036

9165540825

main91655-40825

10 parts on this diagram · 2 diagrams in section
