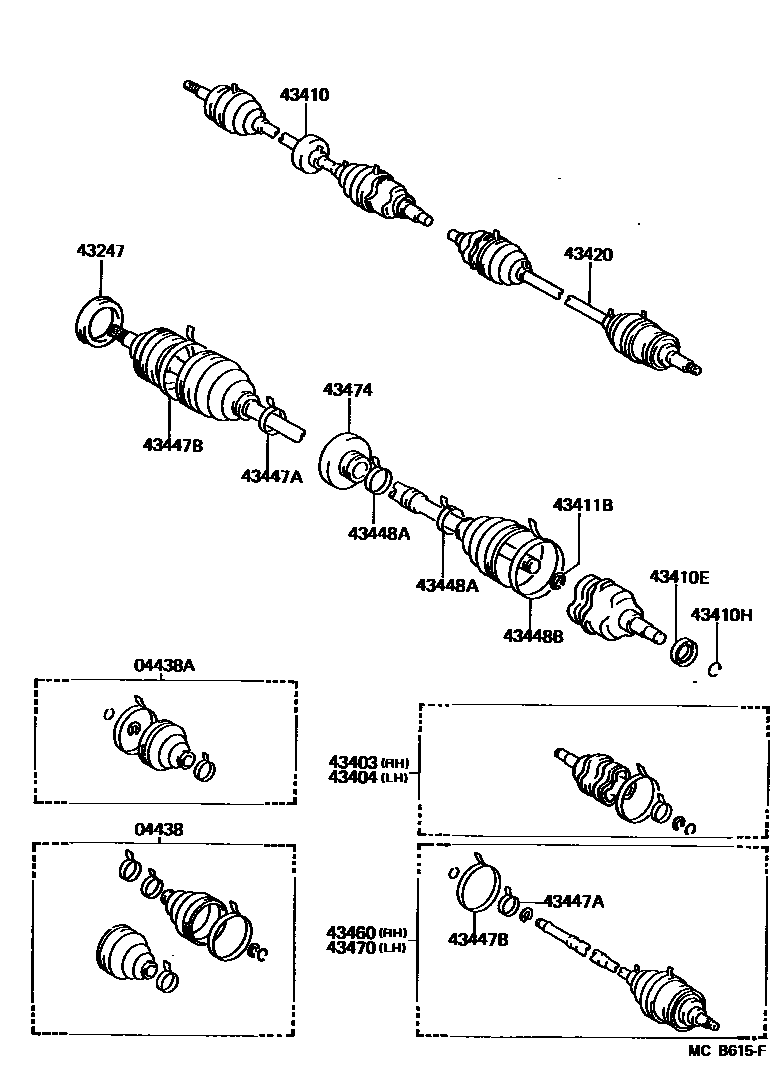

FRONT DRIVE SHAFT

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-10020iEP7#¥10,800198410-198601

sub04438-10021¥10,800

main04438-10021iEP7#¥10,800198601-198609

sub04438-10110¥10,700

main04438-10022iEP7#,NP70¥10,800198609-198912

sub04438-16040¥10,800

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-10010iEP7#¥6,800198410-198601

sub04438-10011¥6,700

main04438-10011iEP7#,NP70¥6,700198601-198912

sub04438-16030¥6,700

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-10010iEP7#,NP70¥1,550198712-198912

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-19045iEP7#¥24,700198410-198601

sub43403-19046¥26,200

main43403-19046iEP7#,NP70¥26,200198601-198912

sub43403-10010¥23,500

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-19045iEP7#¥24,700198410-198601

sub43403-19046¥26,200

main43403-19046iEP7#,NP70¥26,200198601-198912

sub43403-10010¥23,500

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-10020iEP7#¥83,200198410-198912

sub43410-10021¥80,500

sub43502-10030¥9,400

main43410-10050iNP70¥75,500198612-198912

sub43410-10051¥80,500

sub43502-10030¥9,400

43410ECOVER, DUST (FOR FRONT DRIVE SHAFT)

main41336-12010iEP7#,NP70¥130198410-198912

43410HRING, HOLE SNAP (FOR FRONT DRIVE SHAFT)

main90521-26004iEP7#,NP70¥100198410-198912

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22001iEP7#,NP70¥110198410-198912

sub90520-22029¥90

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-10020iEP7#¥71,500198410-198912

sub43420-10021¥72,000

sub43502-10030¥9,400

main43420-10050iNP70¥69,700198612-198912

sub43420-10051¥72,000

sub43502-10030¥9,400

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01078iEP7#,NP70¥80198410-198912

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01080iEP7#,NP70¥300198410-198912

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01078iEP7#,NP70¥80198410-198912

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90949-01146iEP7#,NP70¥350198410-198912

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19085iEP7#¥46,000198410-198601

sub43460-19086¥46,400

main43460-19086iEP7#¥46,400198601-198912

sub43460-10H00¥46,400

main43460-19255iNP70¥38,500198612-198912

sub43460-10H01¥38,500

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-19085iEP7#¥38,500198410-198601

sub43470-19086¥38,800

main43470-19086iEP7#¥38,800198601-198912

sub43470-10H00¥38,800

main43470-19195iNP70¥43,600198612-198912

sub43470-10H01¥43,600

43474DAMPER, DRIVE SHAFT

main43474-10010iEP7#,NP70¥4,460198410-198912

17 parts on this diagram · 1 diagram in section
