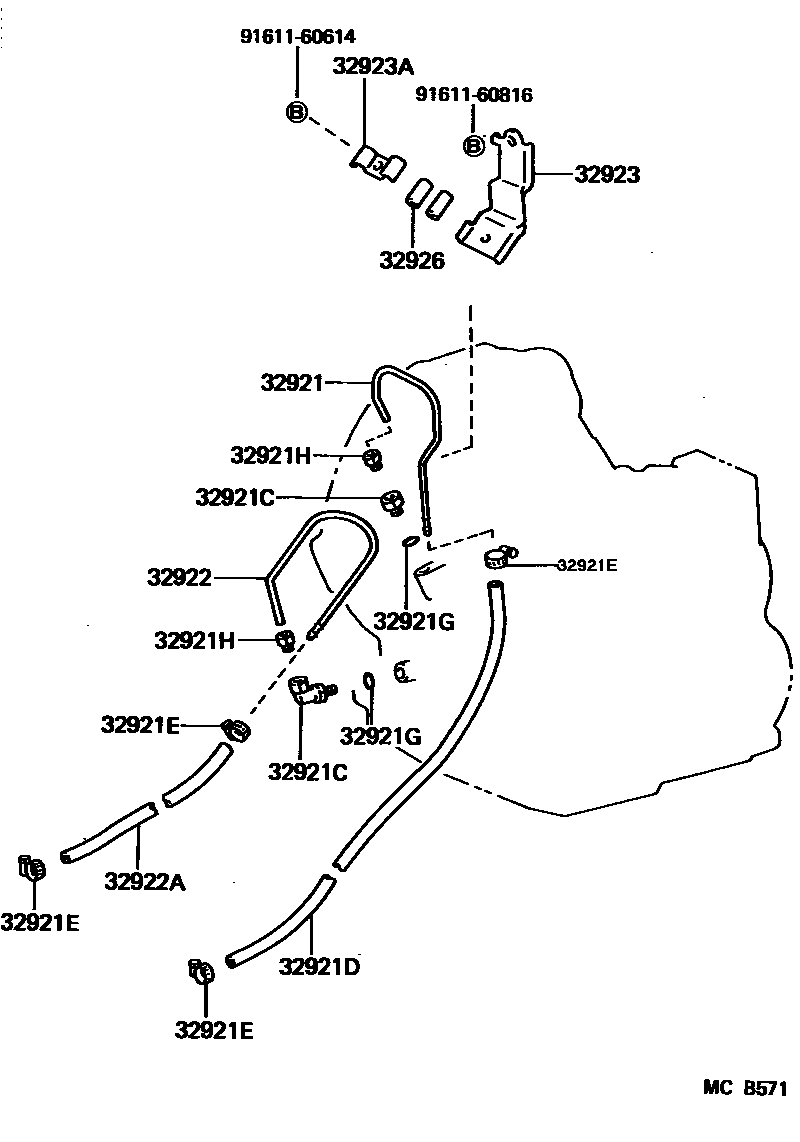

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-10040iEP71..3FC198410-198912

main32921-10041iEP71..3FC198506-198610

sub32921-10040

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iEP71..3FC198410-198912

INLET

main90407-14003iEP71..3FC198410-198912

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-14080iEP71..3FC198410-198912

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iEP71..3FC198410-198912

sub90460-20004

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iEP71..3FC198410-198912

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iEP71..3FC198410-198912

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-10040iEP71..3FC198410-198912

main32922-10041iEP71..3FC198506-198610

sub32922-10040

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-14127iEP71..3FC198410-198912

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-10040iEP71..3FC198410-198912

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12085iEP71..3FC198410-198912

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iEP71..3FC198410-198912

L=25,ID=8

9161160614

main91611-60614

9161160816

main91611-60816

13 parts on this diagram · 1 diagram in section
