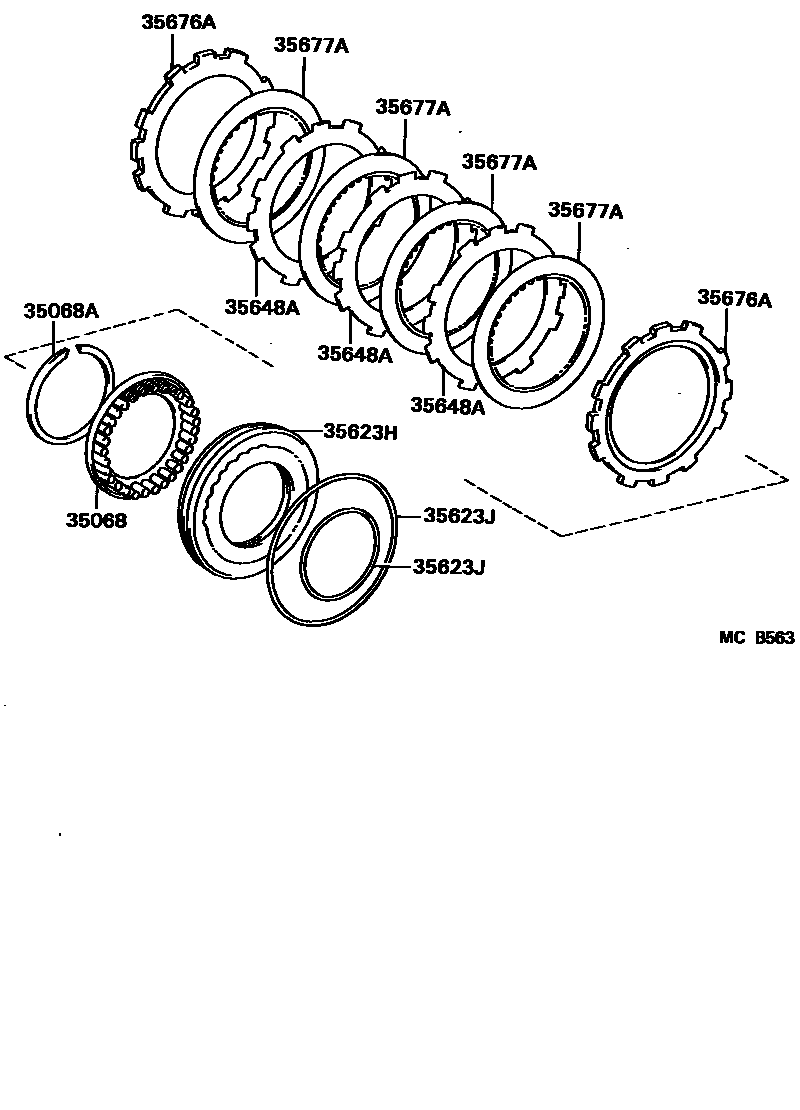

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iEP71..3FC¥2,210198410-198912

sub35068-20010¥2,120

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iEP71..3FC¥230198410-198912

35623HPISTON, 1ST & REVERSE BRAKE

main35623-10010iEP71..3FC¥3,810198410-198912

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iEP71..3FC¥600198410-198912

INNER

main90301-99022iEP71..3FC¥940198410-198912

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020iEP71..3FC¥2,190198410-198912

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010iEP71..3FC¥4,590198410-198912

T=3.5

sub35676-12030¥4,810

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-32040iEP71..3FC¥2,060198410-198912

7 parts on this diagram · 1 diagram in section
