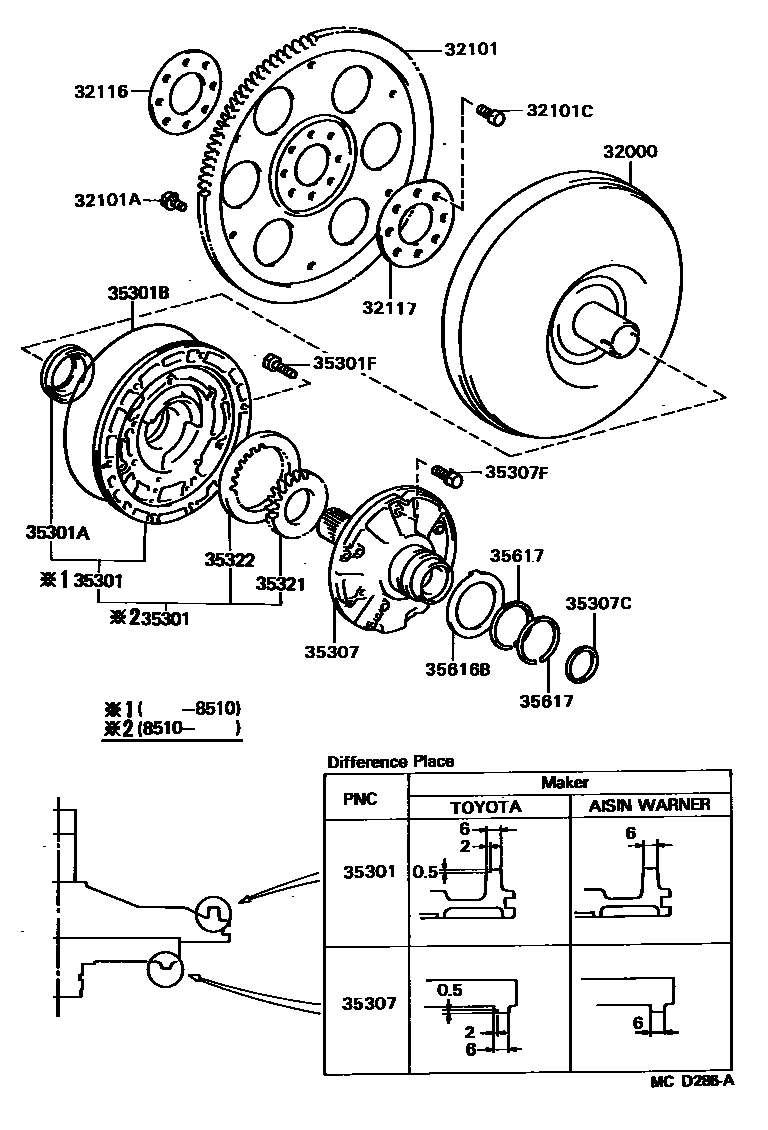

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-10030iEP71..3FC¥105,000198410-198912

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-10021iEP71..3FC¥18,900198410-198912

sub32101-10022¥18,900

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08107iEP71..3FC¥190198410-198912

*8-1.25PX12-8.4,0LIVE GREEN

main90119-08269iEP71..3FC¥170198410-198912

*8-1.25PX12-8,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iEP71..3FC¥130198410-198912

*10-1.25PX18-13

32116SPACER, DRIVE PLATE, FRONT

main32116-10020iEP71..3FC¥480198410-198912

32117SPACER, DRIVE PLATE, REAR

main32117-10010iEP71..3FC¥410198410-198912

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-32010iEP71..3FC¥26,400198604-198912

AISIN-WARNER

main35035-32020iEP71..3FC¥26,400198604-198912

TOYOTA

sub35035-32H00¥29,700

main35301-32031iEP71..3FC¥26,200198410-198604

AISIN-WARNER

sub35035-32010¥26,400

main35301-32040iEP71..3FC198411-198604

TOYOTA

sub35035-32020¥26,400

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iEP71..3FC¥540198410-198912

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iEP71..3FC¥2,050198410-198912

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iEP71..3FC¥200198410-198912

*8-1.25PX28-28

35307SHAFT SUB-ASSY, STATOR

main35370-32021iEP71..3FC¥25,300198410-198412

AISIN-WARNER

sub35370-32022¥27,000

main35370-32022iEP71..3FC¥27,000198412-198912

AISIN-WARNER

sub35370-20H00¥18,100

sub35370-32H01¥19,400

main35370-32030iEP71..3FC¥25,300198411-198412

TOYOTA

sub35370-32031¥27,000

main35370-32031iEP71..3FC¥27,000198412-198912

TOYOTA

sub35370-32H00¥25,300

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020iEP71..3FC¥700198410-198912

T=0.8,T=0.8

main35789-32030iEP71..3FC¥740198410-198912

T=1.4,T=1.4

35307FBOLT (FOR STATOR SHAFT)

main90119-06180iEP71..3FC¥80198410-198912

35321GEAR, FRONT OIL PUMP DRIVE

main35321-32020iEP71..3FC¥3,720198410-198604

T=9.465-9.440

sub35321-32050¥3,880

main35321-32040iEP71..3FC¥3,880198604-198912

T=9.440-9.456,MARK A

sub35321-12070¥3,720

main35321-32050iEP71..3FC¥3,880198604-198912

T=9.456-9.474,MARK B

sub35321-12090¥3,720

main35321-32060iEP71..3FC¥3,880198604-198912

T=9.474-9.490,MARK C

sub35321-12110¥3,720

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-32020iEP71..3FC¥3,990198410-198604

T=9.465-9.440

sub35322-32050¥4,160

main35322-32040iEP71..3FC¥4,160198604-198912

T=9.440-9.456,MARK A

sub35322-12060¥3,980

main35322-32050iEP71..3FC¥4,160198604-198912

T=9.456-9.474,MARK B

sub35322-12080¥3,980

main35322-32060iEP71..3FC¥4,160198604-198912

T=9.474-9.490,MARK C

sub35322-12100¥3,980

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iEP71..3FC¥2,070198410-198912

35617RING, CLUTCH DRUM OIL SEAL

main35617-22011iEP71..3FC¥2,010198410-198508

sub35617-32010¥1,400

main35617-32010iEP71..3FC¥1,400198508-198708

main35617-32011iEP71..3FC¥1,520198708-198912

17 parts on this diagram · 1 diagram in section
