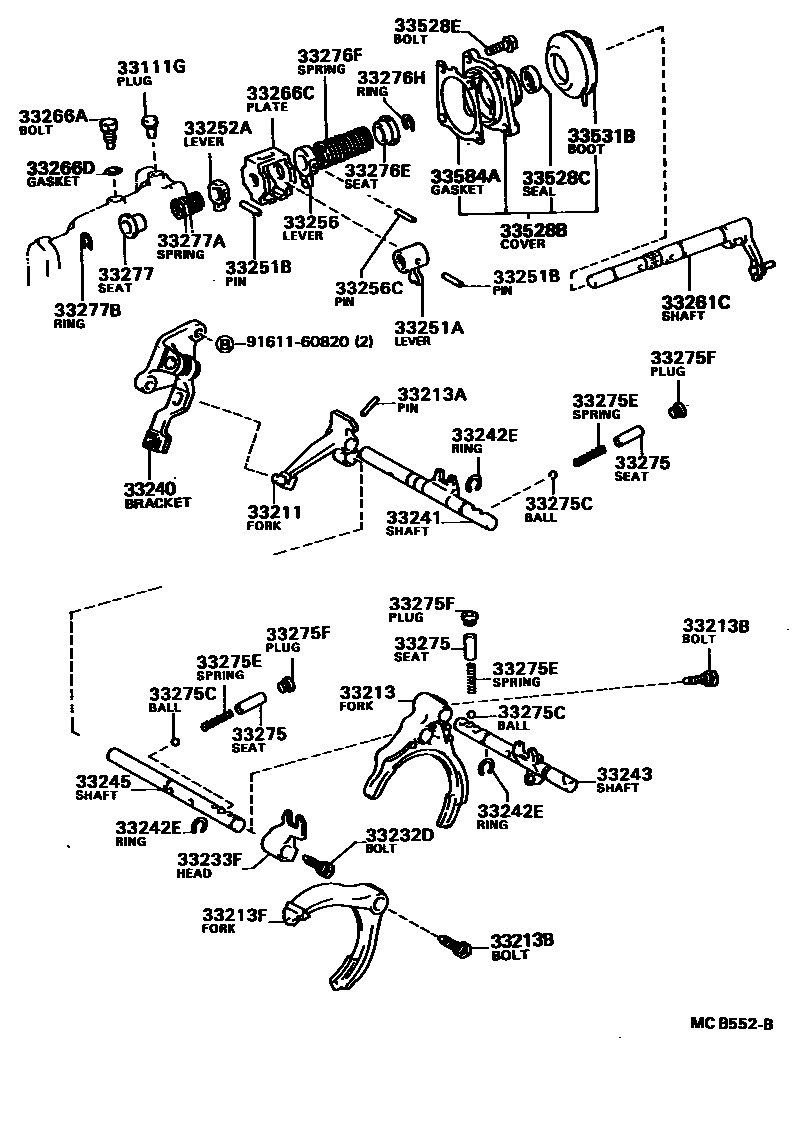

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33211FORK, REVERSE SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
main90105-06052iEP70..5D..5F;EP70..RHD..3D;EP70..4F..XL..FRG;EP7#..4F..(DX,STD);EP70..LHD..3D..XL..EUG;EP71,NP70..MTM..(GL,S,STD,XL)198804-198805
5TH SHIFT
main90105-06115iEP70..5D..5F;EP70..RHD..3D;EP70..4F..XL..FRG;EP7#..4F..(DX,STD);EP70..LHD..3D..XL..EUG;EP71,NP70..MTM..(GL,S,STD,XL)198804-198805
1ST & 2ND OR 3RD & 4TH SHIFT
33232DBOLT (FOR SHIFT HEAD SET)
33233FHEAD, 3RD & 4TH SHIFT
33240BRACKET ASSY, REVERSE SHIFT ARM
sub33240-10011
33241SHAFT, REVERSE SHIFT FORK
sub33244-10031
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243SHAFT, 1ST & 2ND SHIFT FORK
sub33205-10071
33245SHAFT, 3RD & 4TH SHIFT FORK
sub33243-10041
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=25.5
33252ALEVER, SHIFT, INNER NO.2
33256LEVER, SELECT INNER
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
33266ABOLT (FOR SHIFT INTERLOCK PLATE)
33266CPLATE, SHIFT INTERLOCK
33266DGASKET (FOR SHIFT INTERLOCK PLATE)
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=10.7
33275CBALL (FOR SHIFT DETENT)
33275FPLUG (FOR SHIFT DETENT BALL)
33276ESEAT, SELECT SPRING, NO.1
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
sub90501-16136
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
33528BCOVER, CONTROL SHAFT
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528EBOLT (FOR CONTROL SHAFT COVER)
*10-1.25PX25-19.8
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33584AGASKET, CONTROL SHIFT LEVER RETAINER
9161160820
main91611-60820
38 parts on this diagram · 2 diagrams in section
