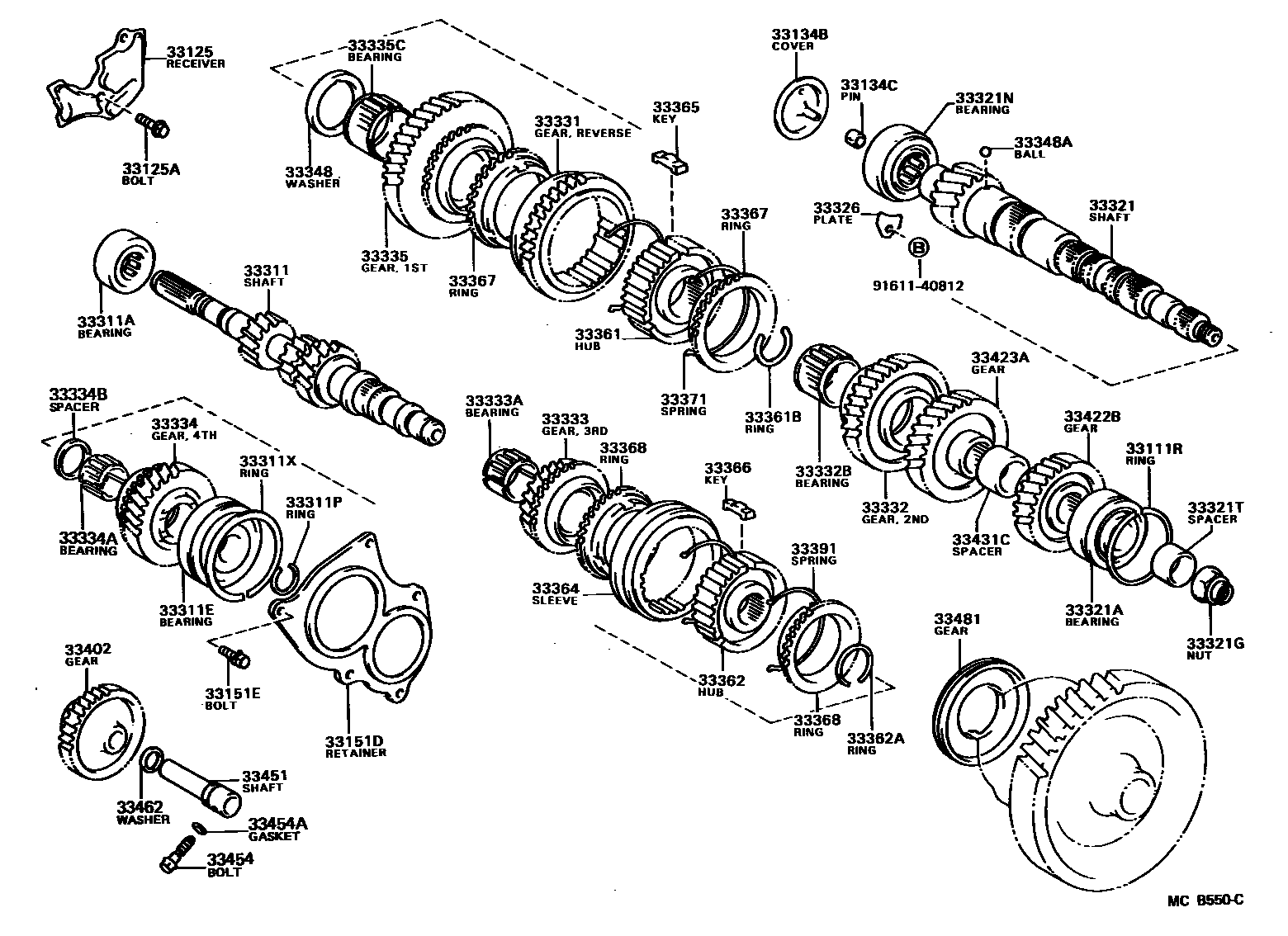

TRANSMISSION GEAR (MTM)
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33125RECEIVER, MANUAL TRANSAXLE CASE
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
sub91611-B0812
33134CPIN, SLOTTED SPRING(FOR OUTPUT SHAFT)
33151DRETAINER, BEARING, REAR(MTM)
sub33151-12020
33151EBOLT(FOR REAR BEARING RETAINER)
sub91611-G0820
33311ABEARING (FOR INPUT SHAFT FRONT)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.29-2.34,MARK A,T=2.29,MARK A
T=2.35-2.40,MARK B,T=2.35,MARK B
T=2.41-2.46,MARK C,T=2.41,MARK C
T=2.47-2.52,MARK D,T=2.47,MARK D
T=2.53-2.58,MARK E,T=2.53,MARK E
T=2.59-2.64,MARK F,T=2.59,MARK F
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321TSPACER (FOR OUTPUT SHAFT)
33326PLATE, BEARING LOCK
33331GEAR, REVERSE
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
sub33034-10011
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334GEAR, 4TH
sub33035-12011
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.50-2.55,MARK A,T=2.50,MARK A
T=2.56-2.61,MARK B,T=2.56,MARK B
T=2.62-2.67,MARK C,T=2.62,MARK C
T=2.68-2.73,MARK D,T=2.68,MARK D
T=2.74-2.79,MARK E,T=2.74,MARK E
T=2.80-2.85,MARK F,T=2.80,MARK F
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30-2.35,MARK 0,T=2.30,MARK A
T=2.36-2.41,MARK 1,T=2.36,MARK B
T=2.42-2.47,MARK 2,T=2.42,MARK C
T=2.48-2.53,MARK 3,T=2.48,MARK D
T=2.54-2.59,MARK 4,T=2.54,MARK E
T=2.60-2.65,MARK 5,T=2.60,MARK F
T=2.30,T=2.30,MARK 0
T=2.36,T=2.36,MARK 1
T=2.42,T=2.42,MARK 2
T=2.48,T=2.48,MARK 3
T=2.54,T=2.54,MARK 4
T=2.62,T=2.60,MARK 5
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33402GEAR SUB-ASSY, REVERSE IDLER
sub33402-10031
33431CSPACER, OUTPUT GEAR
33451SHAFT, REVERSE IDLER GEAR
33454BOLT, SHAFT RETAINING
33462WASHER, REVERSE IDLER THRUST
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=34,MARK 34X30-32
9161140812
main91611-40812
51 parts on this diagram · 2 diagrams in section
