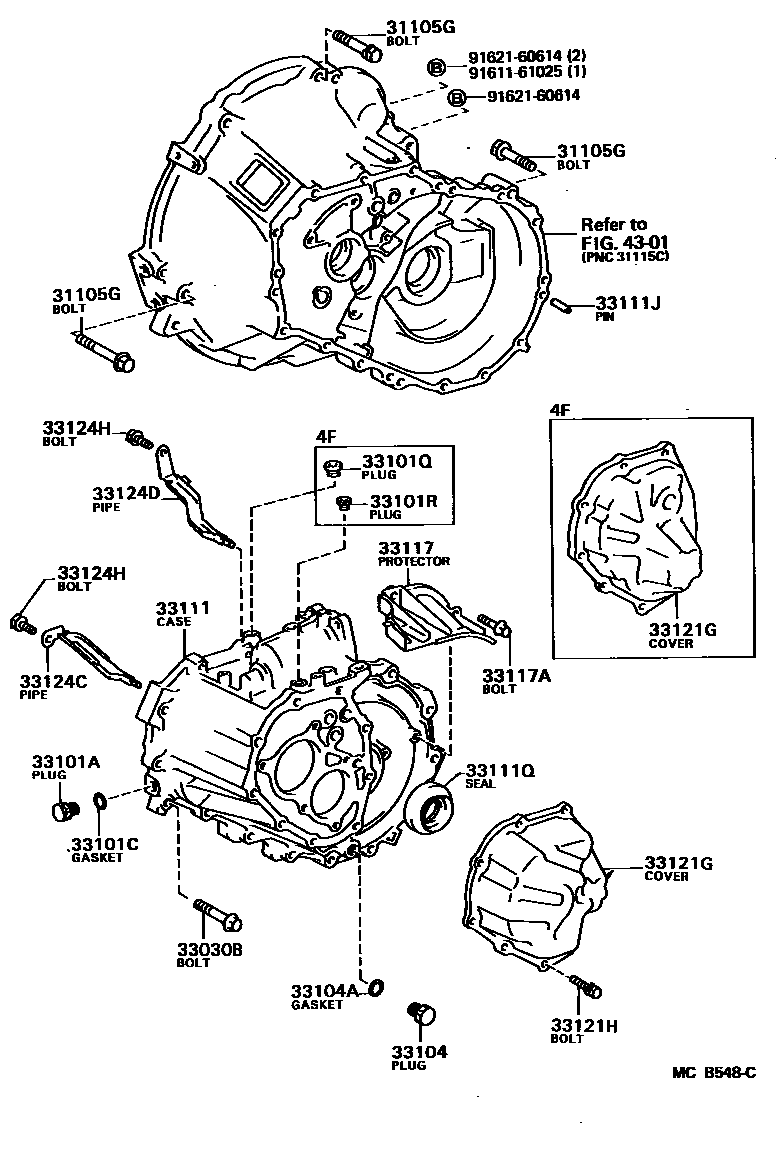

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX43-26,*10-1.25PX43-26
*10-1.25PX60-22,*10-1.25PX60-22
*12-1.25PX75-30,*12-1.25PX75-30
*12-1.25PX55-30,*12-1.25PX55-30
*12-1.25PX60-30,*12-1.25PX60-30
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX45-27.5
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101QPLUG, NO.1(FOR TRANSMISSION CASE)
33101RPLUG, NO.2(FOR TRANSMISSION CASE)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
sub33111-10071
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
33111QSEAL, OIL(FOR TRANSMISSION CASE)
sub90311-34017
33117PROTECTOR, MANUAL TRANSMISSION CASE
sub33117-16010
33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
sub91641-H0820
33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
sub90119-08373
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33124DPIPE, OIL RECEIVER, NO.2(MTM)
4301
9161161025
main91611-61025
9162160614
main91621-60614
21 parts on this diagram · 2 diagrams in section
