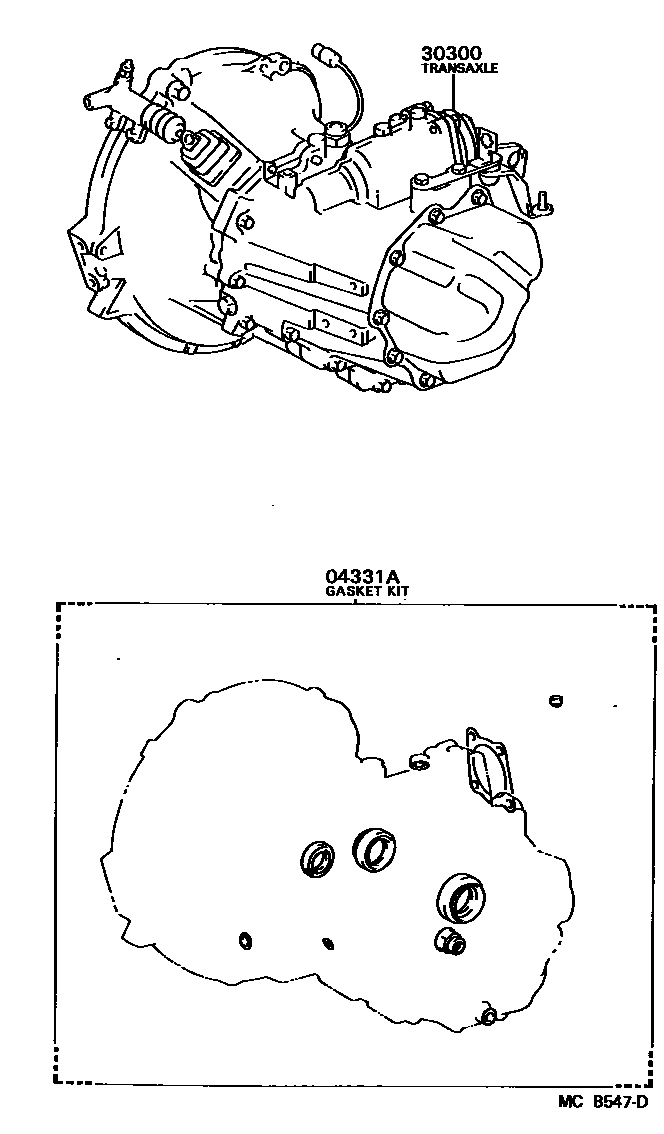

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12080iEP7#,NP70..MTM198410-198912

30300TRANSAXLE ASSY, MANUAL

main30300-10020iEP71..4F198410-198704

sub30300-10021

sub11355-10011

sub91611-61025

main30300-10021iEP71..4F198704-198912

main30300-10030iEP70..4F..EUG198410-198704

*AXC=-572,*FGR=69:17

sub30300-10031

sub11355-10011

sub91611-61025

main30300-10031iEP70..4F..EUG198704-198912

*AXC=-572,*FGR=69:17

main30300-10040iEP70..4F198410-198704

*AXC=-642,*FGR=69:16

sub30300-10041

sub11355-10011

sub91611-61025

main30300-10041iEP70..4F198704-198912

*AXC=-642,*FGR=69:16

main30300-10080iEP71..5F198410-198704

sub30300-10081

sub11355-10011

sub91611-61025

main30300-10081iEP71..5F..(GL,S,XL)198704-198912

main30300-10090iEP70..5F..EUG198410-198704

*AXC=-572,*FGR=69:17

sub30300-10091

sub11355-10011

sub91611-61025

main30300-10091iEP71..SDZ198707-198912

main30300-10091iEP70..5F..EUG198704-198912

*AXC=-572,*FGR=69:17

main30300-10100iEP70..5F198410-198704

*AXC=-642,*FGR=69:16

sub30300-10101

sub11355-10011

sub91611-61025

main30300-10101iEP70..5F..EUG198704-198912

*AXC=-642,*FGR=69:16

main30300-10150iNP70198612-198704

*AXC=-672,*FGR=67:19

sub30300-10151

sub11355-55012

sub90105-10051

main30300-10151iNP70198704-198912

*AXC=-672,*FGR=67:19

main30300-10160iNP70198612-198704

*AXC=-522,*FGR=67:18

sub30300-10161

sub11355-55012

sub90105-10051

main30300-10161iNP70198704-198912

*AXC=-522,*FGR=67:18

main30300-10190iEP70..5F..FRG198612-198704

sub30300-10191

sub11355-10011

sub91611-61025

main30300-10191iEP70..5F..FRG198704-198912

2 parts on this diagram · 1 diagram in section
