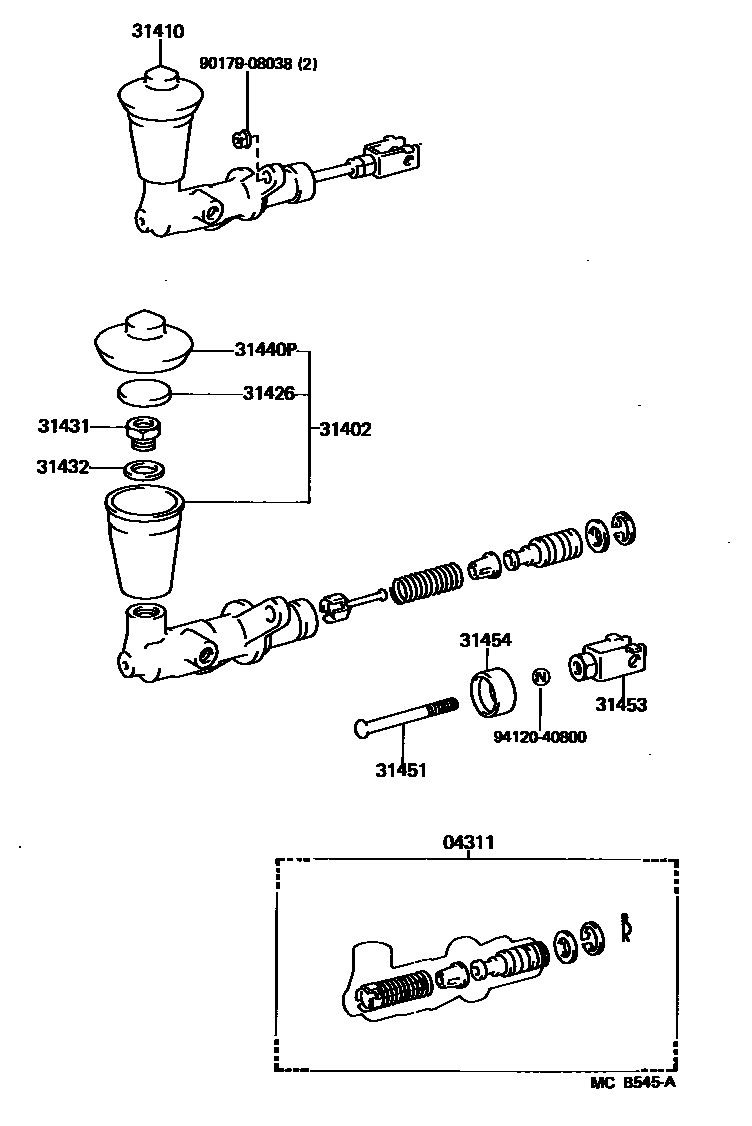

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-10010iNP70..LHD198701-198704

sub04311-10011

main04311-10011iNP70..LHD198704-198912

sub04311-10012

main04311-14030iEP7#..MTM198609-198704

sub04311-14031

main04311-14031iEP7#..MTM198704-198906

sub04311-14032

main04311-14040iNP70..RHD198701-198704

sub04311-14041

main04311-14041iNP70..RHD198704-198912

sub04311-22050

main04311-17030iEP7#..MTM198410-198609

sub04311-17031

main04311-22030iNP70..RHD198612-198701

sub04311-14030

main04311-22040iEP7#..MTM198906-198912

sub04311-12080

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-10010iEP7#,NP70..LHD..MTM198410-198901

sub31402-10011

sub31408-10011

sub93385-16016

main31402-10011iEP7#,NP70..LHD..MTM198901-198912

main31402-30060iEP7#,NP70..RHD198410-198912

sub31402-30061

sub47231-20010

31410CYLINDER ASSY, CLUTCH MASTER

main31410-10010iEP7#..RHD198410-198701

sub31410-10011

main31410-10011iEP7#..RHD198701-198704

sub31410-10012

main31410-10012iEP7#..RHD198704-198808

sub31410-10013

main31410-10013iEP7#..RHD198808-198912

main31410-10020iNP70..RHD198612-198701

sub31410-10021

main31410-10021iNP70..RHD198701-198704

sub31410-10022

main31410-10022iNP70..RHD198704-198808

sub31410-10023

main31410-10023iNP70..RHD198808-198912

main31420-10010iEP7#..LHD..MTM198410-198612

sub31420-10011

main31420-10020iNP70..LHD198612-198701

sub31420-10021

main31420-10021iNP70..LHD198701-198704

sub31420-10022

main31420-10022iNP70..LHD198704-198808

sub31420-10023

main31420-10023iNP70..LHD198808-198912

main31420-10030iEP7#..LHD..MTM198612-198701

sub31420-10031

main31420-10031iEP70..LHD..5D..5F;EP70..4F..XL..FRG;EP7#..4F..(DX,STD);EP70..LHD..3D..XL..EUG;EP71..LHD..MTM..(GL,S,XL)198701-198704

sub31420-10032

main31420-10032iEP70..LHD..5D..5F;EP70..4F..XL..FRG;EP7#..4F..(DX,STD);EP70..LHD..3D..XL..EUG;EP71..LHD..MTM..(GL,S,XL)198704-198808

sub31420-10033

main31420-10033iEP7#..LHD..MTM198808-198906

sub31420-10023

main31420-16010iEP7#..LHD..MTM198906-198912

sub31420-16011

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iEP7#,NP70..MTM198410-198912

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iEP7#,NP70..RHD198410-198912

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iEP7#,NP70..RHD198410-198912

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iEP7#,NP70..MTM198410-198912

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-16010iEP7#..LHD..MTM198906-198912

main31451-20050iEP7#..MTM198410-198609

main31451-22060iEP7#..MTM198609-198912

main31451-22070iNP70198612-198912

main31451-30120iEP7#..LHD..MTM198612-198906

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-16011iNP70..RHD198612-198904

sub31404-16012

main31404-16012iNP70..RHD198904-198912

sub31404-22020

main31404-30050iNP70..LHD198612-198912

sub31404-30051

main31453-10010iEP7#..RHD198410-198605

sub31453-10020

main31453-10020iEP7#..RHD198605-198912

main31453-22010iEP7#..LHD..MTM198410-198605

sub31453-35010

main31453-35010iEP7#..LHD..MTM198605-198906

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iEP7#..MTM198410-198912

main31454-24010iNP70..RHD198612-198912

9017908038

main90179-08038

9412040800

main94120-40800

12 parts on this diagram · 3 diagrams in section
