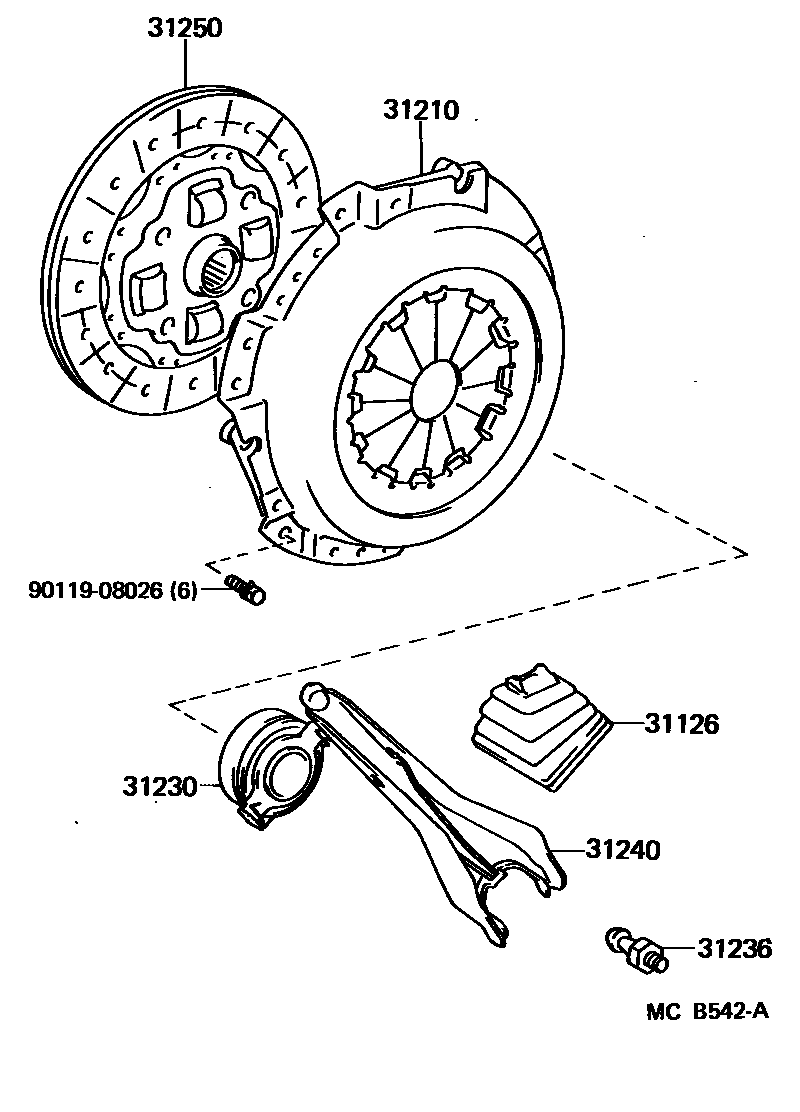

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12050iEP7#,NP70..MTM198410-198701

sub31126-12051

main31126-12051iEP7#,NP70..MTM198701-198912

31210COVER ASSY, CLUTCH

main31210-10060iEP7#..MTM198410-198912

sub31210-10080

main31210-27010iNP70198612-198907

sub31210-27011

main31210-27011iNP70198907-198912

sub31210-12180

31230BEARING ASSY, CLUTCH RELEASE

main31230-12100iEP7#,NP70..MTM198612-198912

sub31230-12140

main31230-12130iEP7#..MTM198410-198612

sub31230-12100

31236BALL, RELEASE FORK

main31236-12011iEP7#,NP70..MTM198410-198912

31240FORK ASSY, CLUTCH RELEASE

main31204-12050iEP7#,NP70..MTM198410-198912

31250DISC ASSY, CLUTCH

main31250-10060iEP7#..MTM198410-198702

sub31250-10061

main31250-10061iEP70..5D..5F;EP70..RHD..3D;EP70..4F..XL..FRG;EP7#..4F..(DX,STD);EP71..MTM..(GL,S,XL);EP70..LHD..3D..XL..EUG198702-198707

sub31250-10062

main31250-10062iEP7#..MTM198707-198912

sub31250-10063

main31250-10080iNP70198612-198708

sub31250-10081

main31250-10081iNP70198708-198912

sub31250-10082

9011908026

main90119-08026

7 parts on this diagram · 1 diagram in section
