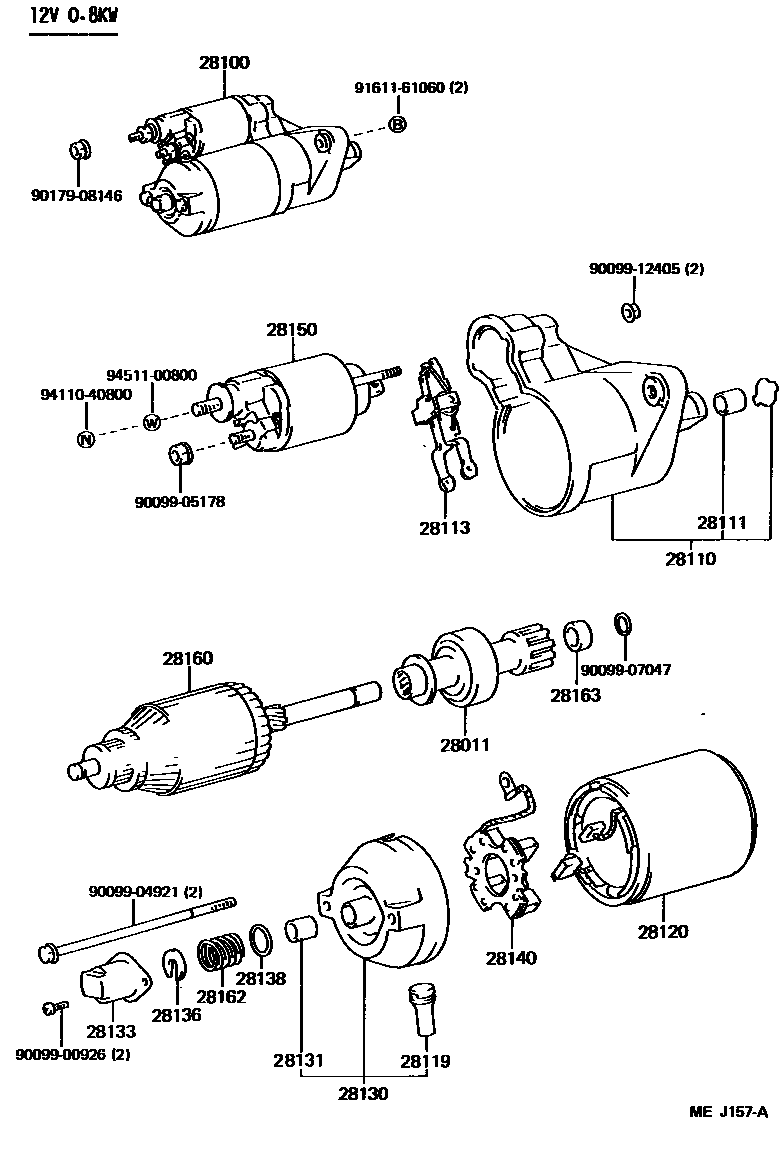

STARTER

0001 112V 0.8KW 0002 112V 1.0KW 0003 112V 0.6KW 0004 112V 1.4KW 0005 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-10020i1EL..EP70198508-198912

12V 0.6KW

main28011-10030i1EL,2EL#..EP7#198410-198912

12V 0.8KW

main28011-26042i2EL#..EP71198410-198912

12V 1.0KW

main28011-55010i1N..NP70198612-198912

12V 1.4KW

main28011-55020i1N..NP70..LHD198612-198912

12V 2.0KW

28100STARTER ASSY

main28100-10020i1EL..EP70198508-198706

12V 0.6KW,12V 0.6KW

sub28100-10021

main28100-10021i1EL..EP70198706-198912

12V 0.6KW,12V 0.6KW

sub28100-11010

main28100-10030i1EL,2EL#..EP7#198410-198912

12V 0.8KW,12V 0.8KW

sub28100-11010

main28100-10040i2EL#..EP71198410-198912

12V 1.0KW,12V 1.0KW

main28100-55010i1N..NP70198612-198912

12V 1.4KW,12V 1.4KW

sub28100-55020

main28100-55020i1N..NP70..LHD198612-198912

12V 2.0KW,12V 2.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-10020i1EL..EP70198508-198912

12V 0.6KW

main28110-10030i1EL,2EL#..EP7#198410-198912

12V 0.8KW

main28110-10040i2EL#..EP71198410-198912

12V 1.0KW

main28110-55010i1N..NP70198612-198912

12V 1.4KW

main28115-55020i1N..NP70..LHD198612-198912

12V 2.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i1EL,2EL#..EP7#198410-198912

12V 0.8KW

main90099-10158i1EL..EP70198508-198509

12V 0.6KW

main90099-10171i1EL..EP70198509-198912

12V 0.6KW

28113LEVER, STARTER PINION DRIVE

main28113-10020i1EL..EP70198508-198912

12V 0.6KW

main28113-15011i1EL,2EL#..EP7#198410-198912

12V 0.8KW

28119COVER, STARTER END FRAME

main28119-54070i1N..NP70..LHD198612-198808

12V 2.0KW

main28119-77090i1N..NP70..LHD198808-198912

12V 2.0KW

sub28199-77090

main28199-15090i1EL..EP70198508-198912

12V 0.6KW

main28199-72020i1N..NP70198612-198912

12V 1.4KW

main28199-77090i1EL,2EL#..EP7#198410-198912

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-10020i1EL..EP70198508-198912

12V 0.6KW

main28120-15010i1EL,2EL#..EP7#198410-198912

12V 0.8KW

main28120-15090i1N..NP70198612-198912

12V 1.4KW

main28120-26071i2EL#..EP71198410-198912

12V 1.0KW

main28120-64020i1N..NP70..LHD198612-198912

12V 2.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-10020i1EL..EP70198508-198912

12V 0.6KW

main28130-34060i2EL#..EP71198410-198912

12V 1.0KW

main28130-37010i1EL,2EL#..EP7#198410-198912

12V 0.8KW

main28130-55010i1N..NP70198612-198912

12V 1.4KW

28131BUSH, COMMUTATOR END FRAME

main90099-10134i1EL,2EL#..EP7#198410-198912

12V 0.8KW

main90099-10157i1EL..EP70198508-198912

12V 0.6KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i1EL,2EL#..EP7#198410-198912

12V 0.8KW

sub28132-15011

28136PLATE, STARTER LOCK

main28136-15010i1EL,2EL#..EP7#198410-198912

12V 0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i1EL,2EL#..EP7#198410-198912

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i1EL,2EL#..EP7#198410-198912

12V 0.8KW

main28140-15090i1N..NP70198612-198912

12V 1.4KW

main28140-26070i2EL#..EP71198410-198912

12V 1.0KW

main28140-54070i1N..NP70..LHD198612-198912

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-10020i1EL..EP70198508-198912

12V 0.6KW

sub28150-10021

main28150-34080i2EL#..EP71198410-198912

12V 1.0KW

main28150-37010i1EL,2EL#..EP7#198410-198912

12V 0.8KW

sub28150-37011

main28150-55010i1N..NP70198612-198912

12V 1.4KW

main28150-55020i1N..NP70..LHD198612-198912

12V 2.0KW

28160ARMATURE ASSY, STARTER

main28160-10020i1EL..EP70198508-198912

12V 0.6KW

main28160-15010i1EL,2EL#..EP7#198410-198912

12V 0.8KW

main28160-15090i1N..NP70198612-198912

12V 1.4KW

sub28160-15091

main28160-26070i2EL#..EP71198410-198912

12V 1.0KW

sub28160-26071

main28160-54070i1N..NP70..LHD198612-198912

12V 2.0KW

sub28160-54071

28162SPRING, STARTER BRAKE

main28162-15010i1EL,2EL#..EP7#198410-198912

12V 0.8KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-10020i1EL..EP70198508-198912

12V 0.6KW

sub28163-10021

main28163-40011i1EL,2EL#..EP7#198410-198912

12V 0.8KW

9009900926

main90099-00926

9009904921

main90099-04921

9009905178

main90099-05178

9009907047

main90099-07047

9009912405

main90099-12405

9017908146

main90179-08146

9161161060

main91611-61060

9411040800

main94110-40800

9451100800

main94511-00800

26 parts on this diagram · 5 diagrams in section
