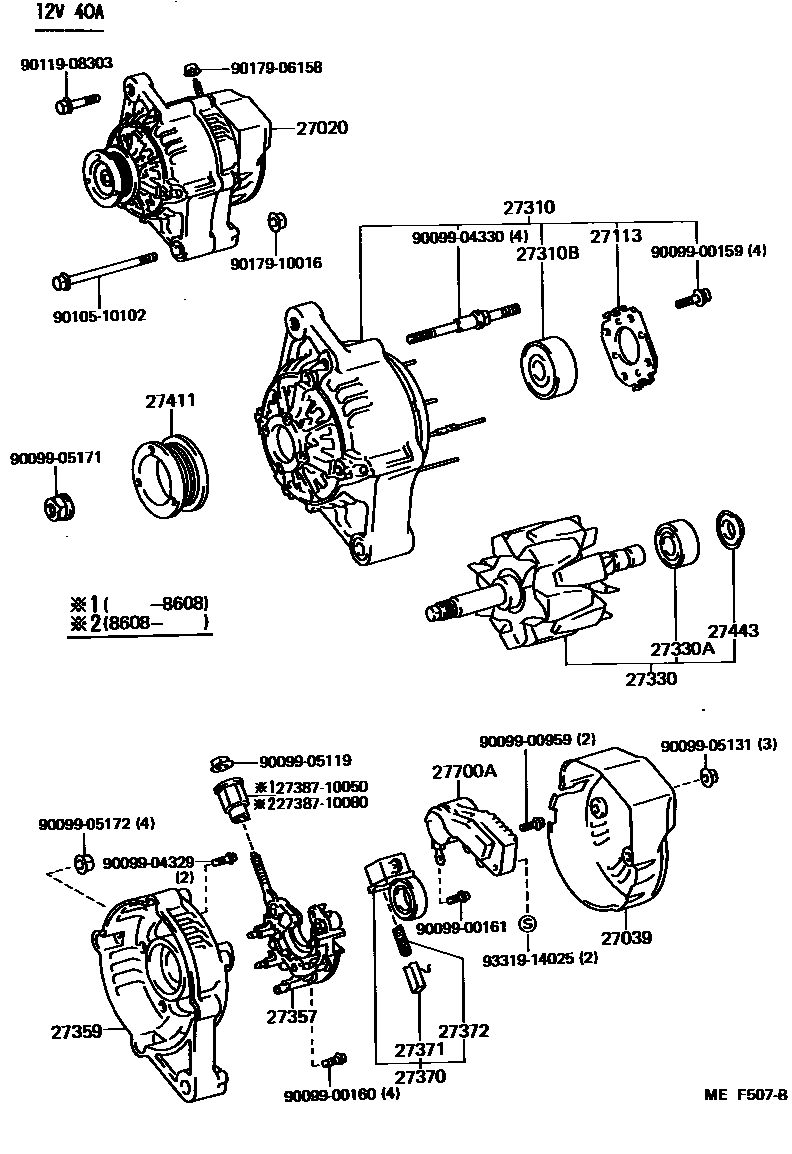

ALTERNATOR

0001 112V 40A 0002 112V 45A OR 55A 0003 112V 45A 0004 112V 55A

27020ALTERNATOR ASSY

main27060-10030i2ELC..EP71..3D;1EL,2EL..EP7#..LHD198410-198602

12V 45A,12V 45A

sub27060-10070

main27060-10050i1EL,2EL#..EP7#198410-198608

12V 40A

main27060-10051i1EL,2EL..EP7#198608-198912

12V 40A,12V 40A

main27060-10070i2ELC..EP71..XL;1EL,2EL..EP7#..LHD198602-198608

12V 45A,12V 45A

main27060-10071i2ELC..EP71..3D198608-198810

12V 45A,12V 45A

main27060-10090i2ELC..EP71..S,XL198707-198804

12V 55A,12V 55A

main27060-10100i1EL,2EL..EP7#..LHD..MTM..EUG198810-198912

12V 50A,12V 45A

main27060-11050i2ELC..EP71..S,XL198804-198912

12V 55A,12V 55A

main27060-55020i1N..NP70198612-198912

12V 55A,12V 55A

main27060-55030i1N..NP70..LHD198612-198912

12V 55A,12V 55A,COLD SPEC

27039COVER, ALTERNATOR REAR END

main27039-10040i2ELC..EP71..3D;1EL,2EL..EP7#..LHD198410-198602

12V 45A

main27039-10050i1EL,2EL#..EP7#198410-198507

12V 40A

sub27039-72120

main27039-72010i1N..NP70..LHD198612-198912

12V 55A,COLD SPEC

sub27039-15170

main27039-72110i2ELC,1N..EP71,NP70..S,STD,XL198612-198912

12V 55A

main27039-72120i1EL,2EL..EP7#198507-198912

12V 40A

main27039-72150i2ELC..EP71..XL;1EL,2EL..EP7#..LHD198602-198912

12V 45A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-10050i2ELC..EP71..3D;1EL,2EL..EP7#..LHD198507-198602

12V 45A

main27312-10050i1EL,2EL#..EP7#198410-198501

12V 40A

main27312-10050i1EL,2EL#..EP7#198501-198507

12V 40A,45A

main27312-63020i2ELC..EP71..3D;1EL,2EL..EP7#..LHD198410-198501

12V 45A

main27312-72100i2ELC..EP71..S,XL198612-198912

12V 55A

main27312-72120i1EL,2EL#..EP7#198507-198602

12V 40A

main27312-72120i1EL,2EL#..EP7#198602-198912

12V 40A,45A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-10021i2ELC..EP71..S,XL198612-198912

12V 55A

sub27310-10070

main27310-10040i2ELC..EP71..3D;1EL,2EL..EP7#..LHD198410-198602

12V 45A

main27310-10050i1EL,2EL#..EP7#198410-198912

12V 40A

main27310-10080i1EL,2EL..EP7#..LHD..MTM..EUG198602-198810

12V 45A

main27310-10090i2ELC..EP71198810-198912

12V 45A

main27310-16011i1N..NP70..LHD198612-198912

12V 55A,COLD SPEC

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10152i2ELC..EP71..3D;1EL,2EL..EP7#..LHD198410-198501

12V 45A

main90099-10155i2ELC..EP71..3D;1EL,2EL..EP7#..LHD198410-198602

12V 45A

main90099-10155i1EL,2EL#..EP7#198501-198507

12V 40A,45A

main90099-10159i2ELC..EP71..S,XL198612-198912

12V 55A

sub90099-10199

main90099-10170i1EL,2EL#..EP7#198602-198912

12V 40A,45A

sub90099-10198

main90099-10170i1EL,2EL#..EP7#198507-198602

12V 40A

sub90099-10198

27330ROTOR ASSY, ALTERNATOR

main27330-10020i2ELC,1N..EP71,NP70..S,STD,XL198612-198709

12V 55A

sub27330-10021

main27330-10021i2ELC..EP71..S,XL198709-198912

12V 55A

main27330-10040i2ELC..EP71..3D;1EL,2EL..EP7#..LHD198410-198602

12V 45A

main27330-10050i1EL,2EL#..EP7#198410-198507

12V 40A

sub27330-72120

main27330-72100i1N..NP70..LHD198612-198709

12V 55A,COLD SPEC

sub27330-72101

main27330-72101i1N..NP70..LHD198709-198912

12V 55A,COLD SPEC

main27330-72120i1EL,2EL..EP7#198507-198912

12V 40A

main27330-72150i2ELC..EP71..XL;1EL,2EL..EP7#..LHD198602-198912

12V 45A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i1N..NP70198612-198912

12V 55A

main90099-10154i1EL,2EL#..EP7#198410-198912

12V 40A,45A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-10040i2ELC..EP71..3D;1EL,2EL..EP7#..LHD198410-198602

12V 45A

main27357-10050i1EL,2EL#..EP7#198410-198603

12V 40A

sub27357-72120

main27357-63040i1N..NP70198612-198912

12V 55A

main27357-63060i1N..NP70..LHD198612-198912

12V 55A,COLD SPEC

main27357-72120i1EL,2EL#..EP7#198603-198912

12V 40A

main27357-72150i1EL,2EL..EP7#..LHD..MTM..EUG198602-198912

12V 45A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-10040i2ELC..EP71..3D;1EL,2EL..EP7#..LHD198410-198602

12V 45A

main27359-10050i1EL,2EL#..EP7#198410-198912

12V 40A

main27359-16011i1N..NP70..LHD198612-198912

12V 55A,COLD SPEC

sub27359-16012

sub27384-16380

main27359-16081i2ELC..EP71..S,XL198612-198912

12V 55A

main27359-72150i2ELC..EP71198602-198912

12V 45A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i1EL,2EL#..EP7#198410-198912

12V 40A,45A,55A

sub27370-54450

main27370-63021i1N..NP70198612-198912

12V 55A

sub27370-70300

27371BRUSH, ALTERNATOR

main27371-63020i1EL,2EL#,1N..EP7#,NP70198410-198912

12V 40A,45A,55A

sub27371-70300

27372SPRING, ALTERNATOR BRUSH

main27372-63020i1EL,2EL#..EP7#198410-198501

12V 40A,45A

sub27372-87501

main27372-72100i1EL,2EL#,1N..EP7#,NP70198501-198912

12V 40A,45A,55A

sub27372-63020

27411PULLEY, ALTERNATOR

main27411-10040i2ELC..EP71..3D;1EL,2EL..EP7#..LHD198410-198602

12V 45A

main27411-10050i1EL,2EL#..EP7#198410-198507

12V 40A

sub27411-10051

main27411-10051i1EL,2EL#..EP7#198507-198602

12V 40A

main27411-10051i1EL,2EL#..EP7#198602-198912

12V 40A,45A

main27411-10070i2ELC..EP71..S,XL198804-198912

12V 55A

main27411-55010i1N..NP70198612-198912

12V 55A

main27411-70091i2ELC..EP71..S,XL198707-198709

12V 55A

main27411-70200i2ELC..EP71..S,XL198709-198804

12V 55A

27443COVER, ALTERNATOR BEARING

main27443-63020i1EL,2EL#,1N..EP7#,NP70198410-198912

12V 40A,45A,55A

27700AREGULATOR ASSY, GENERATOR

main27700-10050i1EL,2EL..EP7#198410-198812

12V 40A

sub27700-10080

main27700-10050i1EL,2EL#..EP7#198602-198810

12V 40A,45A

sub27700-10080

main27700-10060i2ELC..EP71..S,XL198707-198802

12V 55A

sub27700-10061

main27700-10061i2ELC..EP71..S,XL198802-198912

12V 55A

sub27700-54050

main27700-10080i1EL,2EL..EP7#198812-198912

12V 40A

sub27700-66010

main27700-10080i1EL,2EL..EP7#..LHD..MTM..EUG198810-198912

12V 45A

sub27700-66010

main27700-63021i1N..NP70198612-198912

12V 55A

sub27700-70030

main27700-63021i2ELC..EP71..3D;1EL,2EL..EP7#..LHD198410-198602

12V 45A

sub27700-70030

2738710050INSULATOR, TERMINAL

main27387-10050

2738710080INSULATOR, TERMINAL

main27387-10080

9009900159

main90099-00159

9009900160

main90099-00160

9009900161

main90099-00161

9009900959

main90099-00959

9009904329

main90099-04329

9009904330

main90099-04330

9009905119

main90099-05119

9009905131

main90099-05131

9009905171

main90099-05171

9009905172

main90099-05172

9010510102

main90105-10102

9011908303

main90119-08303

9017906158

main90179-06158

9017910016

main90179-10016

9331914025

main93319-14025

32 parts on this diagram · 4 diagrams in section
