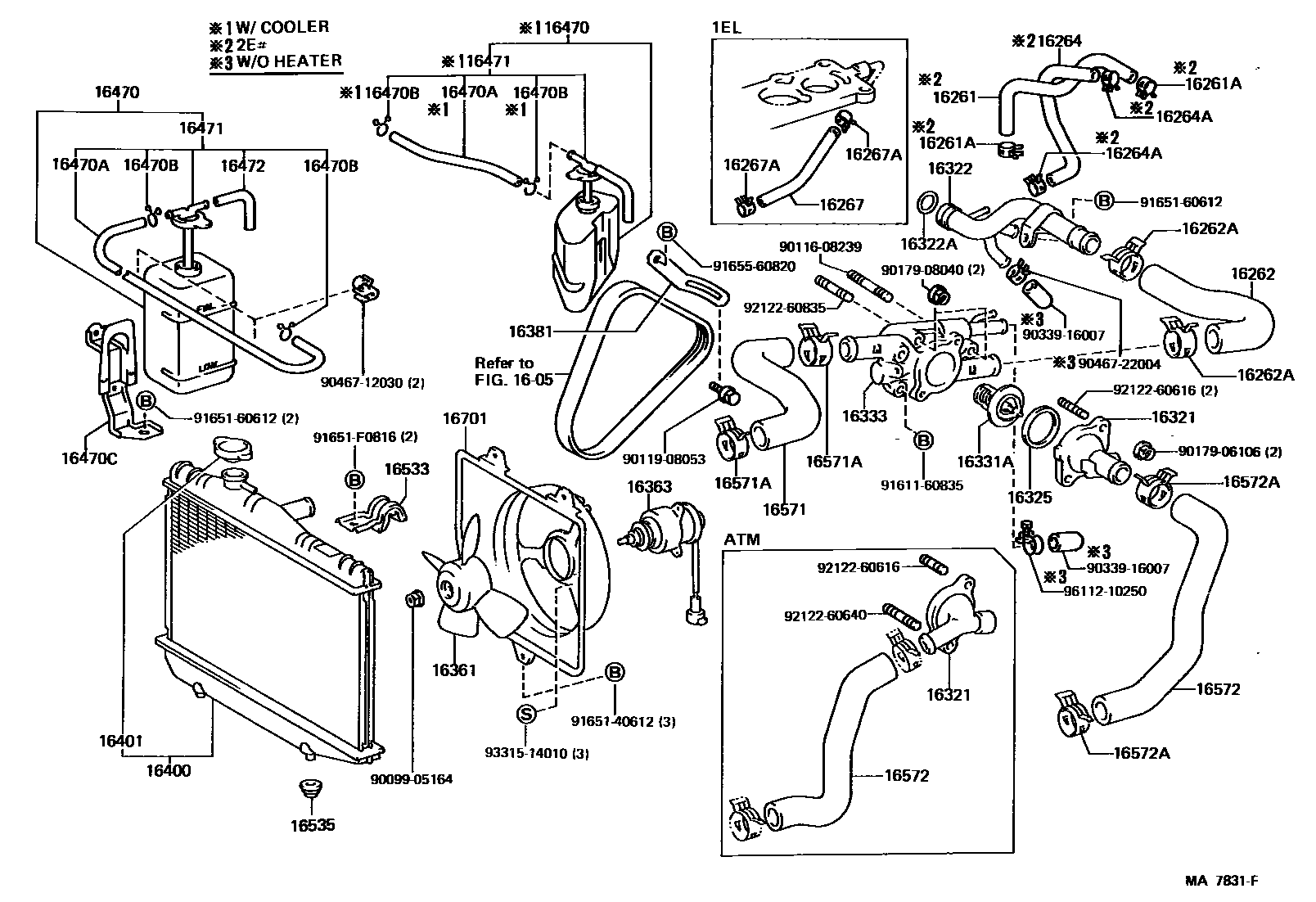

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

1605

16261HOSE, WATER BY-PASS

main16261-11010i2EL#..EP71¥750198410-198912

sub16261-11011¥650

main16261-55030i1N..NP70¥640198612-198912

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-11009i2EL#..EP71¥260198410-198802

sub96135-51100¥130

main90467-11049i2EL#..EP71¥140198802-198912

sub90467-11009¥260

main90467-15004i1N..NP70¥240198612-198912

16262HOSE, WATER INLET

main16262-10010i1EL,2EL#..EP7#..MTM¥800198410-198912

sub16262-10011¥820

main16262-10020i2EL..EP71..3FC¥800198410-198912

sub16262-10022¥810

main16262-55010i1N..NP70¥1,300198612-198912

16262ACLIP(FOR WATER INLET HOSE)

main90467-34002i1EL,2EL#..EP7#¥400198410-198601

sub90467-34003¥400

main90467-34003i1EL,2EL#..EP7#¥400198601-198912

sub90467-34004¥390

main90467-37001i1N..NP70¥330198612-198912

sub90467-37003¥280

16264HOSE, WATER BY-PASS, NO.2

main16264-11010i2EL#..EP71¥780198410-198707

main16264-11031i2EL..EP71..DX..EUG;2EL..EP71..GL,S,STD,XL¥740198705-198707

main16264-11040i2EL#..EP71¥740198707-198912

main16264-55010i1N..NP70¥550198612-198912

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009i2EL#..EP71¥260198410-198802

sub96135-51100¥130

main90467-11049i2EL#..EP71¥140198802-198912

sub90467-11009¥260

main90467-15004i1N..NP70¥240198612-198912

16267HOSE, WATER BY-PASS, NO.3

main99555-00250i1EL..EP70¥510198607-198912

*H,L=250

sub99555-00260¥550

main99555-00260i1EL..EP70¥550198410-198607

sub99555-00300¥320

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-11009i1EL..EP70¥260198410-198802

sub96135-51100¥130

main90467-11049i1EL..EP70¥140198802-198912

sub90467-11009¥260

16321INLET, WATER

main16321-10010i1EL,2EL#..EP7#..MTM¥2,640198410-198503

sub16321-10011¥2,520

main16321-10011i1EL,2EL#..EP7#..MTM¥2,520198503-198912

main16321-11010i2EL..EP71..3FC¥2,510198410-198503

sub16321-11011¥2,530

main16321-11011i2EL..EP71..3FC¥2,530198503-198912

main16321-55010i1N..NP70¥2,780198612-198912

16322PIPE, WATER INLET

main16322-11010i1EL,2EL#..EP7#¥5,400198410-198912

sub16322-11081¥5,400

sub16266-11010¥1,610

main16322-55020i1N..NP70¥7,200198612-198912

16322ARING, O(FOR WATER INLET)

main96711-35028i1EL,2EL#..EP7#¥220198410-198912

sub96761-35028¥310

main96711-35031i1N..NP70¥300198612-198912

sub96761-35031¥170

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1EL,2EL#..EP7#¥640198410-198912

sub16325-63011¥680

16331OUTLET, WATER

main16304-55020i1N..NP70¥3,200198612-198912

16331ATHERMOSTAT

main90916-03046i1EL,2EL#..EP7#¥1,740198410-198912

*WAX 82-95

16333HOUSING, WATER OUTLET

main16303-10010i1EL,2EL#..EP7#¥8,100198410-198509

sub16303-10011¥8,000

main16303-10011i1EL,2EL#..EP7#¥8,000198509-198912

sub16333-10011¥7,700

main16303-11070i2EL..EP71..EUG¥8,800198612-198912

main16303-11100i2ELC..EP71¥9,500198707-198912

16361FAN

main16361-63040i1EL,2EL#..EP7#¥0198410-198912

main16361-64010i1N..NP70198612-198912

main16361-64010i2EL..EP71..3FC;2EL..EP71..FRG198410-198612

W/COOLER

16363MOTOR, COOLING FAN

main16363-10010i1EL,2EL#..EP7#¥21,900198410-198912

main16363-16010i2EL..EP71..3FC;2EL..EP71..FRG¥23,600198410-198612

W/COOLER

main16363-16010i1N..NP70¥23,600198612-198912

16381BAR, FAN BELT ADJUSTING

main16381-10040i1EL,2EL#..EP7#¥860198410-198604

main16381-11020i1EL,2EL#..EP7#¥990198604-198912

sub16381-11021¥1,000

main16381-11030i2ELC..EP71¥680198707-198912

COLD SPEC

main16381-55010i1N..NP70¥390198612-198912

16400RADIATOR ASSY

main16400-10010i1EL,2EL..EP7#..LHD..MTM¥47,200198410-198506

W/COOLER

sub16400-10011¥47,200

main16400-10011i1EL,2EL..EP7#..LHD..MTM¥47,200198506-198912

W/COOLER

main16400-10020i1EL,2EL#..EP7#..MTM¥35,000198410-198612

sub16400-10021¥35,000

main16400-10021i1EL,2EL#..EP7#..MTM¥35,000198612-198912

sub16400-10031¥35,000

main16400-11060i2EL..EP71..3FC¥47,200198410-198912

sub16400-11070¥47,200

main16400-11090i1N..NP70¥51,500198612-198912

sub16400-55030¥51,500

16401CAP SUB-ASSY, RADIATOR

main16401-63010i1N..NP70¥1,170198410-198912

16470TANK ASSY, RADIATOR RESERVE

main16470-10020i1EL,2EL..EP7#..LHD¥2,910198410-198912

W/COOLER

sub16470-11010¥2,910

main16470-10030i1EL,2EL#..EP7#¥2,910198410-198912

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85354-10280i1N..NP70¥460198612-198912

main90099-33534i1EL,2EL..EP7#198604-198912

L=1000(*H,L=800),NO.1

main90445-12078i1EL,2EL..EP7#..LHD..MTM..EUG¥580198410-198912

L=600(*H,L=240),NO.1,W/COOLER

main90445-12078i1EL,2EL..EP7#..LHD¥580198604-198612

L=2000(*H,L=140),NO.2,W/COOLER

main90445-12078i1EL,2EL..EP7#¥580198410-198912

L=600(*H,L=166),NO.2

main90445-12078i1EL,2EL..EP7#..LHD..MTM..EUG¥580198612-198912

L=1450(*H,L=140),NO.2,W/COOLER

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1EL,2EL#..EP7#¥100198410-198912

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-10010i1EL,2EL#..EP7#¥1,650198410-198912

16471CAP SUB-ASSY, RESERVE TANK

main16405-10010i1EL,2EL..EP7#..LHD198410-198912

W/COOLER

main16405-10020i1EL,2EL#..EP7#198410-198912

main85339-16020i1N..NP70198612-198912

16472HOSE, BREATHER

main85338-10020i1EL,2EL..EP7#..LHD198604-198609

W/COOLER

sub85338-74040

main85338-22030i1N..NP70198612-198912

main85338-30010i1EL,2EL..EP7#198410-198609

main85338-70100i1EL,2EL..EP7#198609-198912

main85338-74040i1EL,2EL..EP7#..LHD..MTM..EUG198612-198912

W/LOOLER

main85338-74040i1EL,2EL..EP7#..LHD198609-198612

W/COOLER

16533SUPPORT, RADIATOR, UPPER

main16505-10010i1EL,2EL#..EP7#¥1,440198410-198912

main16533-55020i1N..NP70¥2,170198612-198912

16535SUPPORT, RADIATOR, LOWER

main16535-55020i1N..NP70¥2,490198612-198912

main90480-23008i1EL,2EL#..EP7#¥190198410-198912

16571HOSE, RADIATOR, INLET

main16571-10020i1EL,2EL#..EP7#¥1,820198410-198912

main16571-55020i1N..NP70¥1,760198612-198912

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31001i1EL,2EL#..EP7#¥370198410-198912

sub90466-30001¥410

main90467-34001i1N..NP70¥330198612-198912

sub90467-33003¥350

16572HOSE, RADIATOR, OUTLET

main16572-10010i1EL,2EL#..EP7#..MTM¥2,030198410-198912

main16572-11030i2EL..EP71..3FC¥1,950198410-198912

main16572-55030i1N..NP70¥2,410198612-198912

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31001i1EL,2EL#..EP7#¥370198410-198612

sub90466-30001¥410

main90467-31003i1EL,2EL#..EP7#¥240198612-198912

main90467-34003i1N..NP70¥400198612-198912

sub90467-34004¥390

16701SHROUD SUB-ASSY, FAN

main16711-10030i1EL,2EL#..EP7#¥7,200198410-198912

main16711-11030i2EL..EP71..3FC;2EL..EP71..FRG¥7,200198410-198612

W/COOLER

main16711-55040i1N..NP70¥8,400198612-198912

9009905164

main90099-05164¥0

9011608239

main90116-08239¥240

9011908053

main90119-08053¥130

9017906106

main90179-06106¥120

9017908040

main90179-08040¥100

9033916007

main90339-16007¥310

9046712030

main90467-12030¥200

9046722004

main90467-22004¥330

9161160835

main91611-60835¥90

9165140612

main91651-40612¥70

9165160612

main91651-60612¥90

91651F0816

main91651-F0816¥160

9165560820

main91655-60820¥170

9212260616

main92122-60616¥130

9212260640

main92122-60640¥170

9212260835

main92122-60835¥160

9331514010

main93315-14010¥160

9611210250

main96112-10250¥240

52 parts on this diagram · 5 diagrams in section
