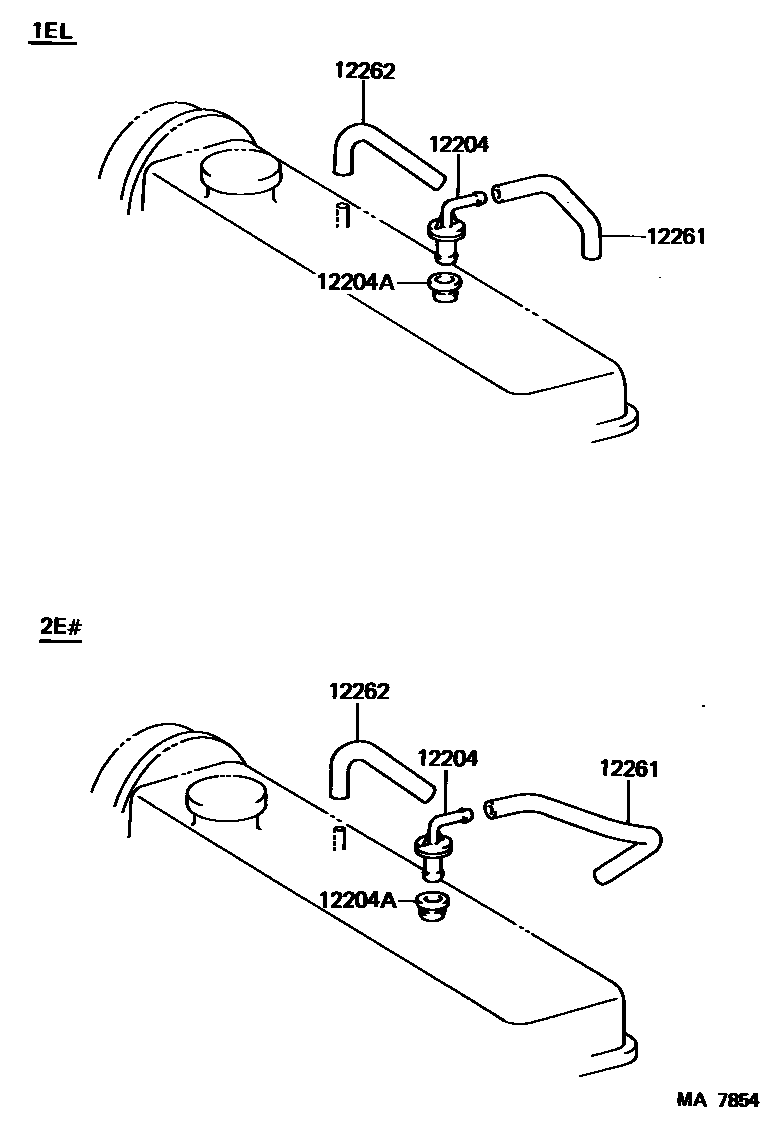

VENTILATION HOSE

0001 1 0004 1 0005 1

12204VALVE SUB-ASSY, VENTILATION

main12204-10020i2ELC..EP71198410-198707

sub12204-10030

main12204-11040i1EL..EP70198705-198912

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i1EL,2EL#..EP7#198410-198806

main90480-18006i1EL,2EL#..EP7#198806-198912

12261HOSE, VENTILATION

main12261-10010i1EL..EP70198410-198912

main12261-11020i2EL#..EP71198410-198912

main12261-55020i1N..NP70198612-198912

12262HOSE, VENTILATION, NO.2

main12262-10020i1EL,2EL#..EP7#198410-198912

4 parts on this diagram · 3 diagrams in section
