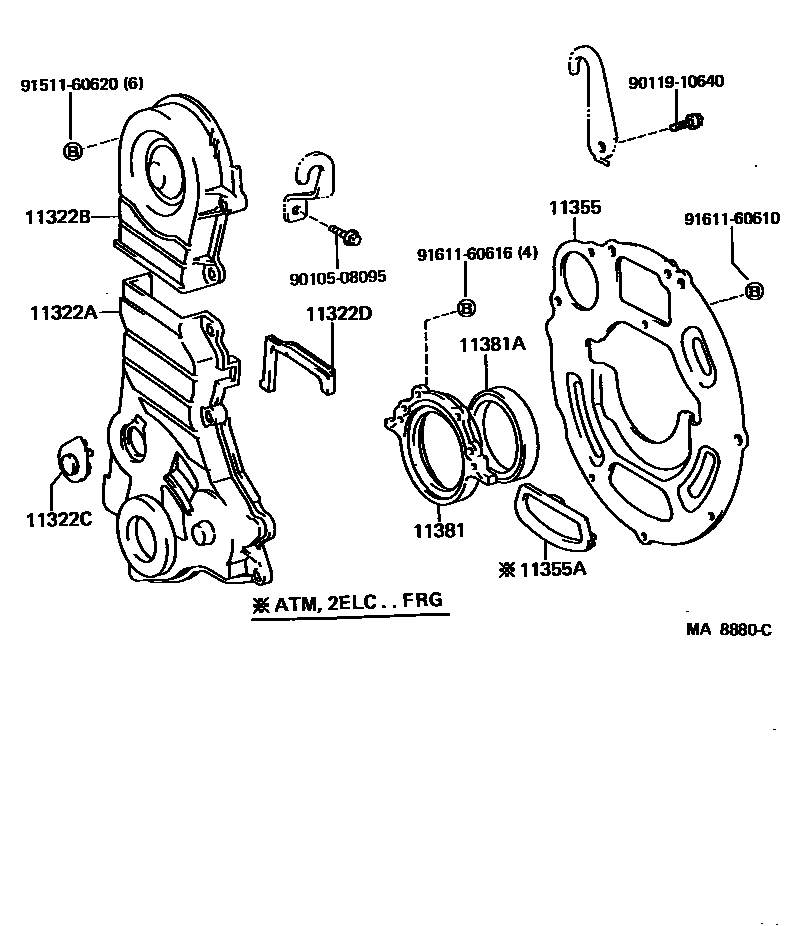

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11322ACOVER, TIMING BELT, NO.1

main11302-10020i1EL..EP70198410-198604

main11302-10021i1EL..EP70198604-198709

sub11302-10022

main11302-10022i1EL..EP70198709-198912

main11302-11020i2EL#..EP71198410-198604

main11302-11040i2EL#..EP71198604-198703

sub11302-11041

main11302-11041i2EL..EP71..DX..EUG;2EL#..EP71..GL,S,STD,XL198703-198708

sub11302-11042

main11302-11042i2EL#..EP71198708-198912

sub11302-11043

sub90387-06015

11322BCOVER, TIMING BELT, NO.2

main11303-10020i1EL,2EL#..EP7#198410-198510

main11303-10021i1EL,2EL#..EP7#198510-198604

main11303-10022i1EL,2EL#..EP7#198604-198912

sub11303-10023

sub90387-06015

11322CCOVER, TIMING BELT, NO.3

main11323-10010i1EL,2EL#..EP7#198410-198604

main11323-10011i1EL,2EL#..EP7#198604-198912

11322DGASKET, TIMING BELT COVER, NO.1

main11328-10020i1EL..EP70198604-198912

main11328-11031i2EL#..EP71198604-198912

11355PLATE, REAR END

main11355-10010i1EL..EP70..FRG198410-198704

sub11355-10011

main11355-10011i2EL..EP71..FRG198704-198912

sub11355-10012

main11355-11010i2EL..EP71..3FC198410-198704

sub11355-11011

main11355-11011i2EL..EP71..3FC198704-198912

sub11355-11012

main11355-55011i1N..NP70198612-198703

sub11355-55012

main11355-55012i1N..NP70198703-198912

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01358i2EL..EP71..3FC;2EL..EP71..FRG198410-198705

sub90950-01548

main90950-01548i2EL..EP71..3FC198705-198912

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10010i1EL,2EL#..EP7#198410-198411

sub11381-10020

main11381-10020i1EL,2EL#..EP7#198411-198912

main11381-55010i1N..NP70198612-198912

sub11381-55011

11381ASEAL, ENGINE REAR OIL

main90311-75004i1EL,2EL#..EP7#198410-198912

sub90311-75006

main90311-80005i1N..NP70198612-198912

sub90311-80009

9010508095

main90105-08095

9011910640

main90119-10640

9151160620

main91511-60620

9161160610

main91611-60610

9161160616

main91611-60616

13 parts on this diagram · 2 diagrams in section
