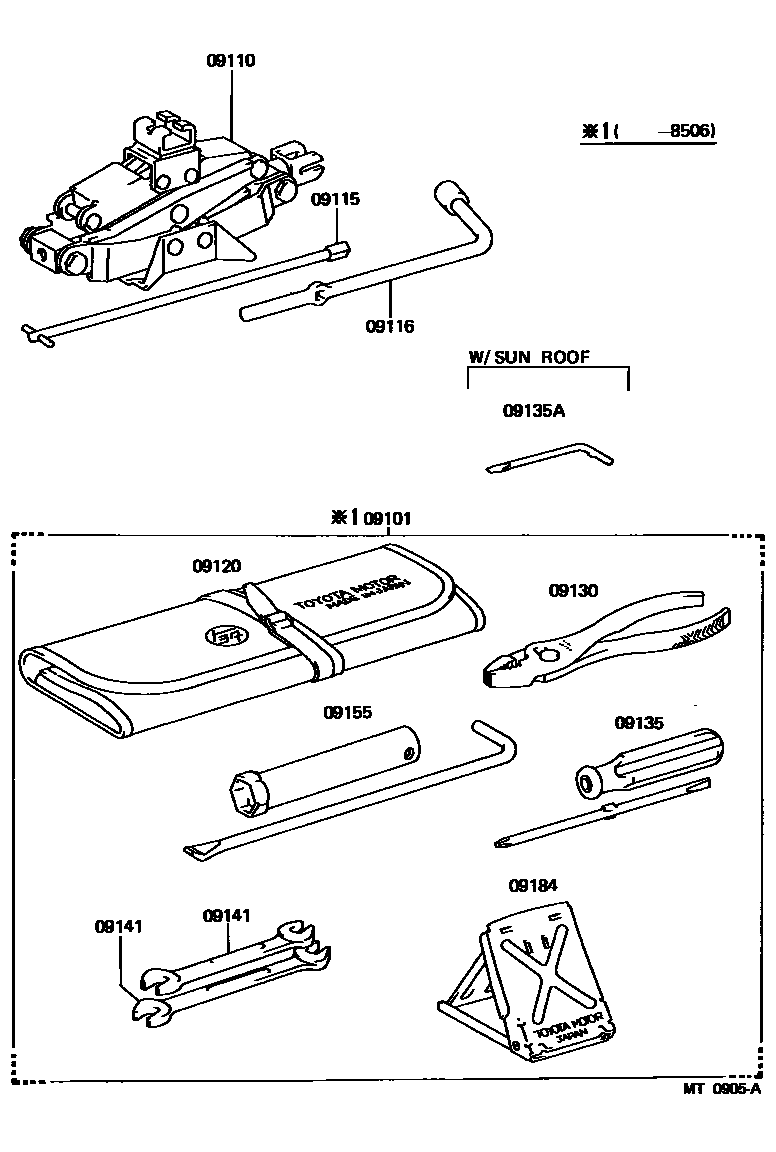

STANDARD TOOL

0001 1 0002 1

09101TOOL SET, STANDARD W/O JACK

main09102-10050iEP7#198410-198506

09110JACK ASSY

main09111-20060iEP7#198601-198912

main09118-17010iEP7#198410-198601

sub09111-17010

09115ROD SUB-ASSY, JACK HANDLE

main09115-16020iEP7#198410-198506

main09115-32010iEP7#198506-198601

09116LEVER, JACK HANDLE

main09116-16010iEP7#198410-198601

09120BAG, TOOL

main09120-10030iEP7#198410-198912

09130PLIERS

main99913-11500iEP7#198410-198912

09135DRIVER, SCREW

main99915-10700iEP7#198410-198912

09135ABIT, SCREW DRIVER

main09135-00012iEP7#..DX,GL,XL198410-198912

W/SUN ROOF

09141SPANNER

main99914-10810iEP7#198410-198912

8 X 10,8X10

main99914-11214iEP7#198410-198612

12 X 14,12X14

09155WRENCH, SPARK PLUG

main09155-41010iEP7#198601-198912

main09155-41020iEP7#198410-198601

09184STOPPER, WHEEL

main09184-00010iEP7#198410-198912

11 parts on this diagram · 2 diagrams in section
