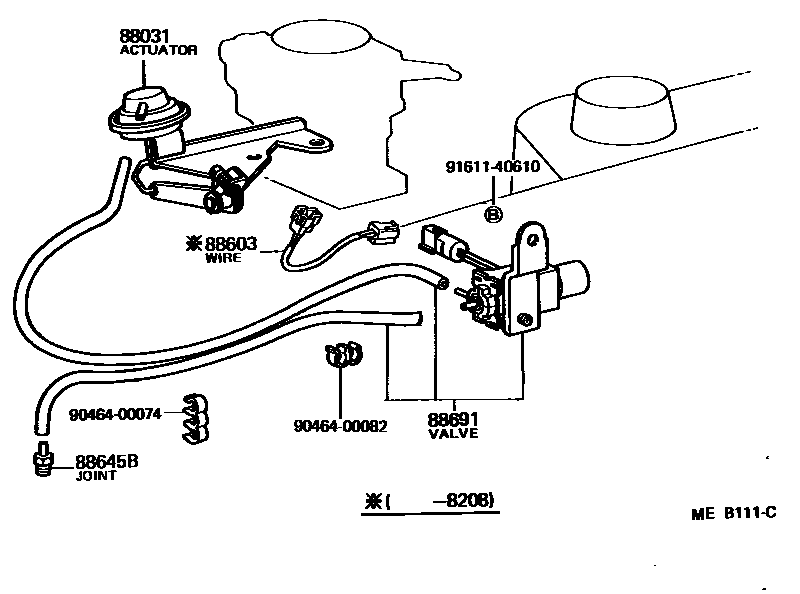

HEATING & AIR CONDITIONING - VACUUM PIPING

88031ACTUATOR SET, IDLE-UP

main88031-12070iKP62..LHD..GEN198103-198208

sub88031-12071

main88031-12071iKP60..SED..RHD..4F..GEN198205-198409

88603WIRE, IDLE UP DEVICE

main88648-10120iKP62..LHD..GEN198103-198208

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90404-51093iKP62..LHD..GEN198103-198409

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-10120iKP62..LHD..GEN198103-198409

9046400074

main90464-00074¥120

9046400082

main90464-00082¥100

9161140610

main91611-40610¥140

7 parts on this diagram · 1 diagram in section
