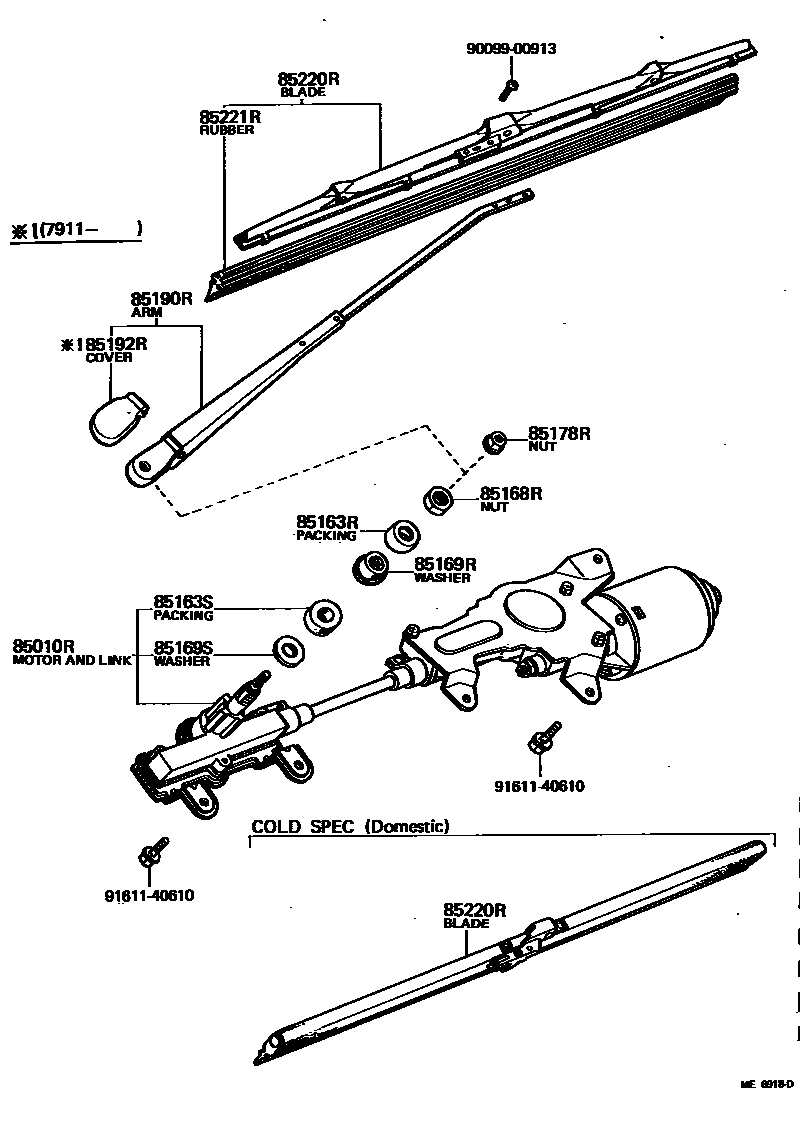

REAR WIPER

0001 1 0002 1 0003 1

85010RMOTOR & LINK ASSY, RR WIPER

main85010-10090iKP6#..SED197802-198005

85163RPACKING, REAR WIPER PIVOT, NO.1

main85174-10090iKP6#..SED197802-198208

85163SPACKING, REAR WIPER PIVOT, NO.2

main85163-10090iKP6#..SED197802-198005

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main85186-13011iKP6#..4D197810-198409

sub85186-13010

main90099-05134iKP6#..SED197802-198208

sub90099-05132

main90099-05157iKP6#..SED198208-198409

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85173-10090iKP6#..SED197802-198208

main85176-96440iKP6#..4D197810-198409

main85179-10170iKP6#..SED198208-198409

85169SWASHER, REAR WIPER LINK PIVOT, NO.2

main85173-12170iKP6#..SED197802-198005

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iKP6#197802-198409

85190RARM ASSY, REAR WIPER

main85190-10250iKP6#..SED197802-197911

sub85190-10330

main85190-10330iKP6#..SED197911-198005

main85190-10370iKP6#..SED198005-198308

sub85190-10371

main85190-10371iKP6#..SED198308-198409

main85190-96440iKP6#..4D197810-198409

85192RCOVER, REAR WIPER ARM

main85192-14020iKP6#197911-198409

sub85192-13060

85220RBLADE ASSY, REAR WIPER

main85220-10170iKP6#..SED198005-198409

sub85220-22120

main85220-12140iKP6#..SED197911-198005

main85220-22040iKP6#..4D197802-198409

sub85220-22041

85221RBLADE, REAR WIPER

main85221-16020iKP6#..SED198005-198008

sub85221-20H90

main85221-16030iKP6#..SED198008-198409

sub85221-20H90

main85221-20050iKP6#..SED197911-198005

sub85221-20H90

main85221-20060iKP6#..4D197802-198409

sub85221-14H90

9009900913

main90099-00913

9161140610

main91611-40610

13 parts on this diagram · 3 diagrams in section
