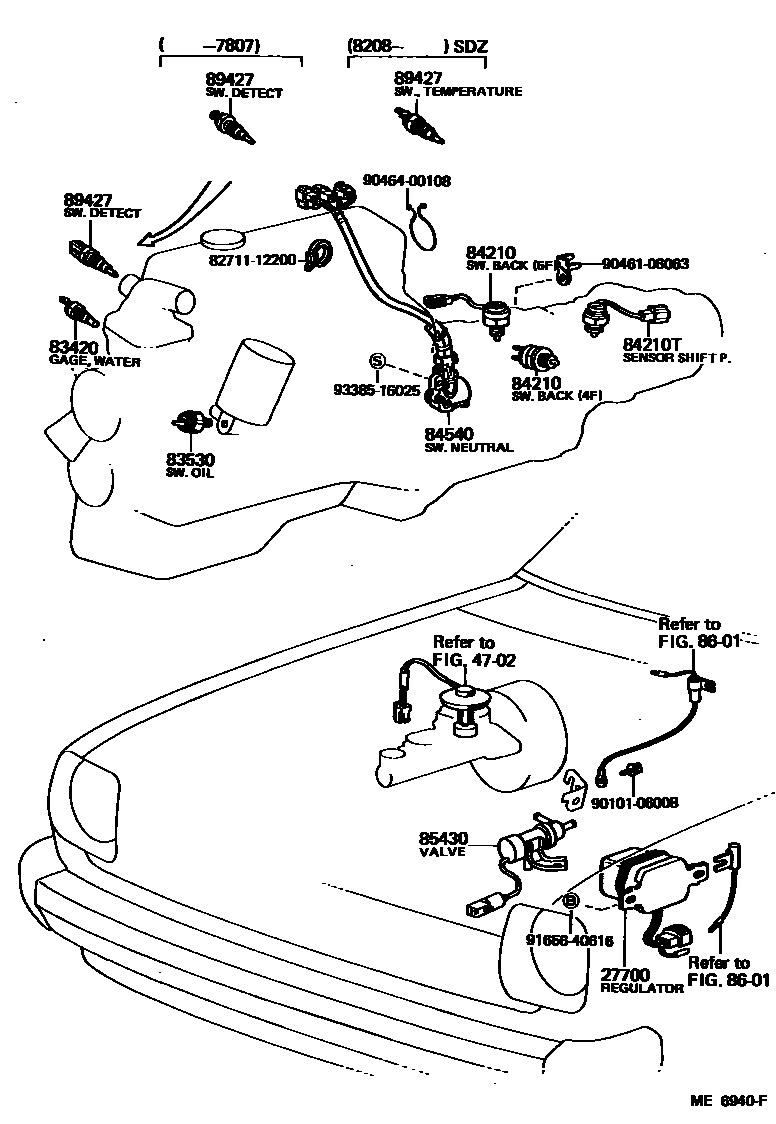

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

27700REGULATOR ASSY, GENERATOR

main27700-13010i2K,3K#..KP6#197802-198005

sub27700-36020

main27700-13050i2K,3K#,4K#..KP6#198005-198409

4702

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-12010iKP6#197802-197908

main83420-16010iKP6#197908-198409

DENSO

sub83420-20020

main83420-20020iKP6#197908-198409

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iKP6#197802-198403

sub83530-14030

main83530-12040iKP6#198403-198409

sub83530-14040

84210SWITCH ASSY, BACK-UP LAMP

main84210-10060iKP6#..5F197802-198409

main84210-62020iKP6#..4F197802-198409

84210TSENSOR ASSY, SHIFT POINT

main84220-12020iKP61..SDZ198208-198409

84540SWITCH ASSY, NEUTRAL START

main84540-14090iKP61..3FC198108-198208

main84540-14100iKP61..3FC198208-198409

85430VALVE, OUTER VENT CONTROL

main85430-14012iKP60..EUG198208-198409

8601

89427SWITCH, TEMPERATURE DETECT

main89427-12030iKP61..SDZ198208-198409

main89428-10030iKP60;KP62..RHD;KP62..LHD..5F;KP62..LHD..4F..GEN;KP62..LHD..4F..EUG197807-198005

main89428-10031iKP6#..GEN198005-198409

main89428-10040iKP62..SED..GEN197807-198005

COLD SPEC

main89428-10050iKP6#..EUR198208-198409

main89428-10050iKP60,62..EUR198005-198208

COLD SPEC

main89428-13010iKP60..EUG197802-197807

COLD SPEC

main89428-13020iKP60197802-197807

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9010106008

main90101-06008

9046106063

main90461-06063

9046400108

main90464-00108

9165640616

main91656-40616

9338516025

main93385-16025

16 parts on this diagram · 4 diagrams in section
